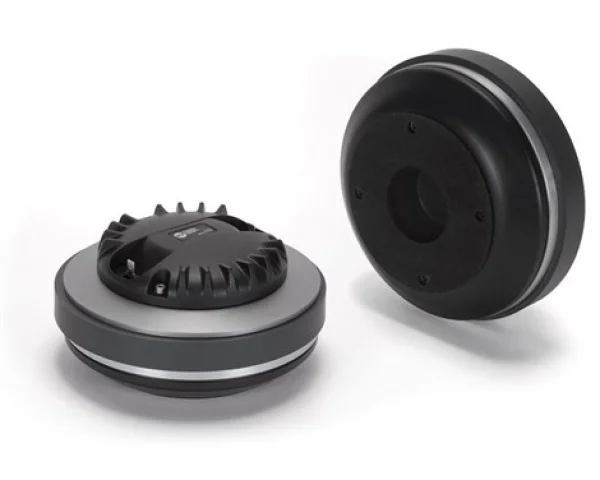

RCF CD850 2.0 2" Tiz Driver, 110/220W, 3" Bobin, 500Hz - 20Khz

  • Barkod: 2242005730416
  • Marka: RCF
  • Kategori: Tweeter
  •
Stok durumu veya tedarik süresini sorunuz: 0 (533) 592 49 10
Hızlı Gönderi
  • FEATURES
  • 3-inch Diaphragm, 2-inch Exit Throat / Pure Titanium Compression Driver
  • 220W continuous program power handling
  • Frequency range: 500Hz - 20kHz
  • 3-slot optimized geometry phase plug
  • Ceramic Magnet Assembly
  • Copper inductance ring for extended response
  • Vented, damped, low distortion suspension system



  • GENERAL SPECIFICATIONS
  • Exit Throat Diameter:50 / 2.0 mm/inch
  • Rated Impedance:8 Ω
  • Power handling capacity continuous program1:220 W AES
  • Power handling capacity AES2:110 W AES
  • Sensitivity:109 dB
  • Frequency Range:500 Hz ÷ 20000 Hz
  • Diaphragm Material:Pure titanium
  • Suspension Material:Polyester
  • Suspension Design:Flat
  • Minimum Impedance:(at 3.5kHz) 8.5 Ω
  • Voice Coil Diameter:74.4 / 3.0 mm/inch
  • Voice Coil Material:Edgewound aluminium
  • Voice Coil Former Design:Straight kapton
  • Number of layers:1 - outside
  • BL Factor:12.3 T · m
  • Flux Density:1.9 T
  • Phase Plug Design:3 slots
  • Phase Plug Material:Composite
  • Magnetics:Ceramic
  • Voice Coil Demodulation:Copper ring
  • MOUNTING INFORMATION
  • Overall diameter:180 / 7.1 mm/inch
  • Overall height:88 / 3.5 mm/inch
  • Mounting 4 × 5 mm holes at 90°:101.6 / 4.0 mm/inch
  • Net weight:5.5 / 12.1 kg/lbs
  • SHIPPING INFORMATION
  • Shipping weight:6.0 / 13.2 kg/lbs
