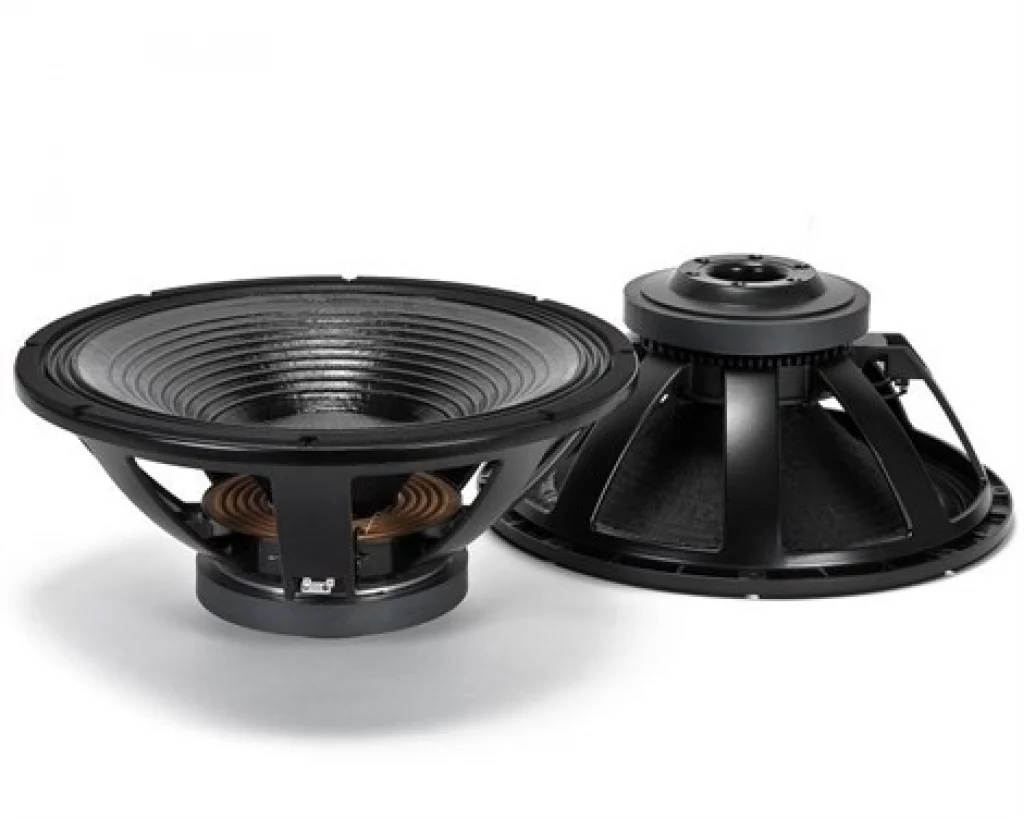

RCF LF21X451 21" Subwoofer Hoparlör, 2000/4000W, 28-1000Hz

  • Barkod: 2242005444740
  • Marka: RCF
  • Kategori: Woofer
  •
Stok durumu veya tedarik süresini sorunuz: 0 (533) 592 49 10
Hızlı Gönderi
  • FEATURES
  • 4,5 - inch fiberglass Inside/Outside copper voice coil
  • 4000 Watt continuous program power handling
  • 97 dB Sensitivity
  • 28 Hz - 1 kHz Frequency range
  • Dual-forced air ventilation for minimum power compression
  • Dual spider designed with silicon based damping control
  • BL of 30.5 Txm to provide a faster and accurate low frequency
  • GENERAL SPECIFICATIONS
  • Nominal Diameter:530 / 21 mm/inch
  • Rated Impedance:8 Ω
  • Program Power:4000 W AES
  • Power handling capacity:2000 W AES
  • Sensitivity:97 dB
  • Frequency Range:28 Hz ÷ 1000 Hz
  • Effective Piston Diameter:470 / 18.5 mm/inch
  • Max Excursion Before Damage (peak to peak):54 / 2.12 mm/inch
  • Minimum Impedance:6.7 Ω
  • Voice Coil Diameter:115 / 4.5 mm/inch
  • Voice Coil Material:Copper
  • Voice Coil Winding Depth:34 / 1.33 mm/inch
  • Number of layers:2
  • Kind of layer:inside / outside
  • Top Plate Thickness:15 / 0.6 mm/inch
  • Cone Material:No pressed pulp
  • Cone Design:Curved
  • Surround Material:Polycotton
  • Surround Design:Triple roll
  • THIELE/SMALL PARAMETERS
  • DC resistance:5.4Ω
  • Mechanical factor:6.9
  • Electrical factor:0.39
  • Total factor:0.37
  • BL Factor:30.5 T · m
  • Effective Moving Mass:355 g
  • Equivalent Cas air load:385 liters
  • Effettive piston area:0.173 m²
  • Max. linear excursion (mathematical):13.5 mm
  • Voice - coil inductance @ 1kHz:2.9 mH
  • Half-space efficiency:2.2%
  • MOUNTING INFORMATION
  • Overall Diameter:547 / 21.5 mm/inch
  • Bolt Circle Diameter:527 / 20.7 mm/inch
  • Bolt Hole Diameter:6.5 / 0.25 mm/inch
  • Front Mount Baffle Cut-out:512 / 20.1 mm/inch
  • Rear Mount Baffle Cut-out:512 / 20.1 mm/inch
  • Depth:230 / 9.05 mm/inch
  • Volume occupied by the driver:6.5 / 0.229 liters/ft³
  • Net Weight:15.5 / 34.0 kg/lbs
  • SHIPPING INFORMATION
  • Shipping weight:17.59 / 26.6 kg/lbs
