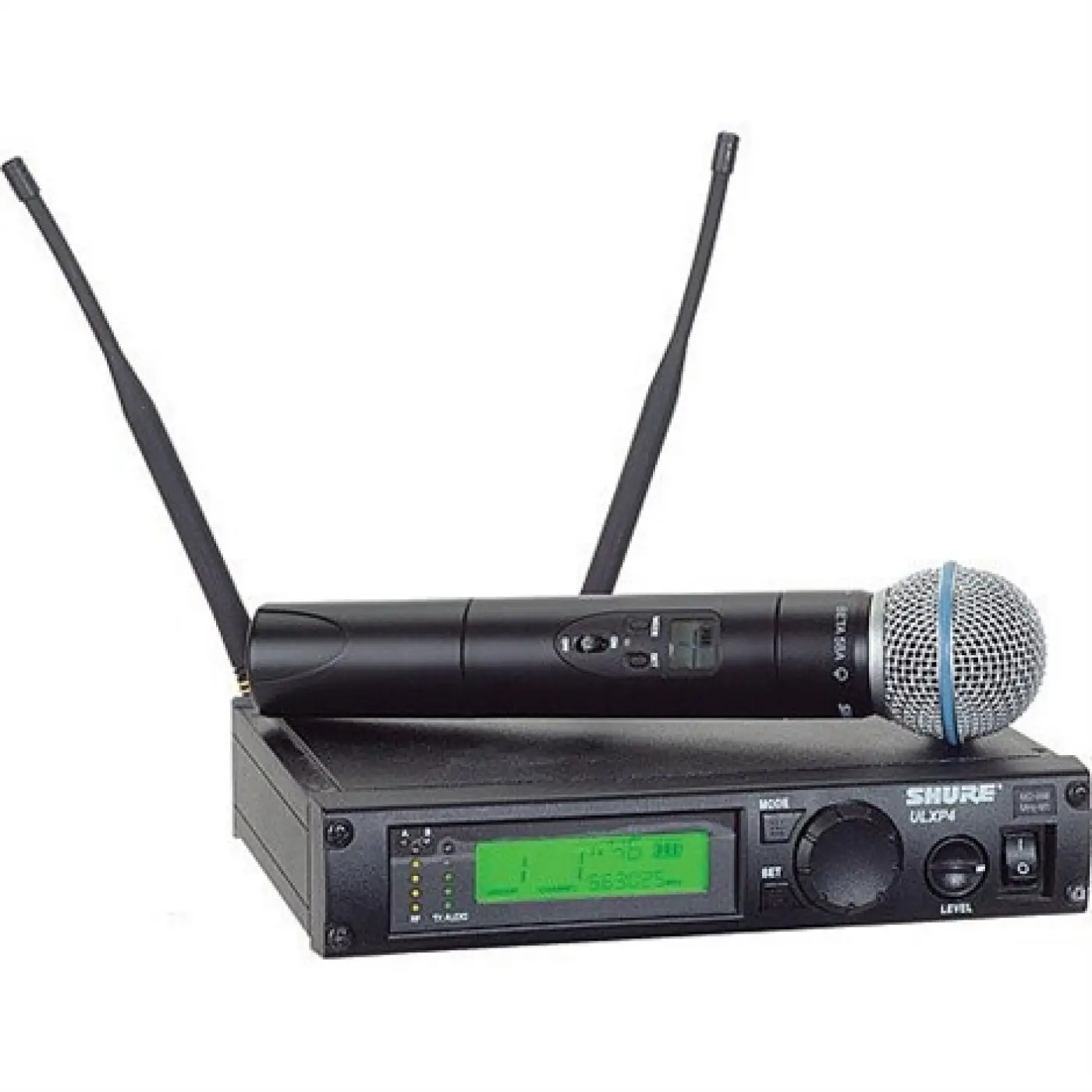

Shure ULXP24/Beta58
The Shure ULX Series wireless microphone systems provide professional wireless microphone solutions for broadcast, performances, conferences, houses of worship, schools, and businesses. This wireless handheld system includes the ULXP4 receiver, and ULX2 handheld transmitter with a Shure Beta 58 supercardioid head.
- ULXP4 Diversity Receiver
- ULX2 Handheld Transmitter
- Shure Beta 58 Capsule
Frekans
- J1 - 554 / 590 Mhz
- M1 - 662 - 698 Mhz
- G3 - 470 / 506 Mhz
|
| Type of System | Rack/Table Top Mountable UHF Diversity Wireless Handheld System |
| RF Carrier Frequency Range | 554.000 to 865.000MHz |
| Approx. Working Range | 300 Feet (100m) NOTE: Actual working range depends on RF signal absorption, reflection, and interference |
| Overall Frequency Response | 25Hz - 15kHz, (±2dB) |
| Signal-to-Noise Ratio | Greater Than 90dB |
| # Of Channels | Over 1400 User Selectable Frequencies (Frequency G3 / 470 - 505 MHz) |
| # Of Simultaneous Systems | Up to 20 |
|
| Type of Receiver | ULXP4 Professional Rack/Table-Top Mount Receiver |
| Type of Outputs | Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold
Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd
(Both Outputs Feature: Voltage, Current and Phantom Power Protection) |
| Headphone Monitoring | No |
| Power Requirements | 14 - 18VDC (negative ground), 550 mA
External Power Supply - PS40, Included, Now with Locking DC Connector! |
| Battery Type/Approx. Life | Not Applicable, Unit Does Not Operate on Batteries |
| Display | Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning. |
| Mounting Options | Rack / Table Top Mount 1/2 Rack Space |
| Antenna Type | Internal |
| Dimensions | 1.72 x 8.56 x 6.88" (43 x 214 x 172mm) HxWxD |
| Weight | 10.4 oz. (296 g) |
|
| Type of Transmitter | ULX2/BETA58 Handheld UHF Transmitter |
| Type of Input Connector | Microphone Element is Attached (Screwed On) to Transmitter |
| Type of Microphone | BETA58 Dynamic Microphone Head |
| Polar Pattern | Supercardioid |
| Interchangeable Mic Heads | No |
| Battery Type/Approx. Life | Non-Rechargeable Type
9V Lithium Battery / 21 Hours (Recommended)
9V Alkaline Battery / 8 - 9 Hours (Recommended)
9V Carbon-Zinc Battery / 5 Hours (NOT Recommended)
Rechargeable Type
9V Ni-Cad Battery / 2 Hours (NOT Recommended)
9V Ni-MH Battery / 2.5 Hours (NOT Recommended) |
| Mute Switch | Yes |
| Level Control | Yes, 25 dB Gain Adjustment Range |
| Antenna Type | Remotable 1/2 Wave, Rear Mounted |
| Display | Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning) |
| Dimensions (WxDxH) | 9.49 x 2.01" (241 x 51mm) LxDiameter |
| Weight | 2 lbs., 7 oz. (1105 g) |
