The STK Mixers new design for "U" mark level setting. every rotary, slide controls are designed for unit gain circuitry to make no change inputs outputs signal level, this special features have make correct level setting with best noise structure.

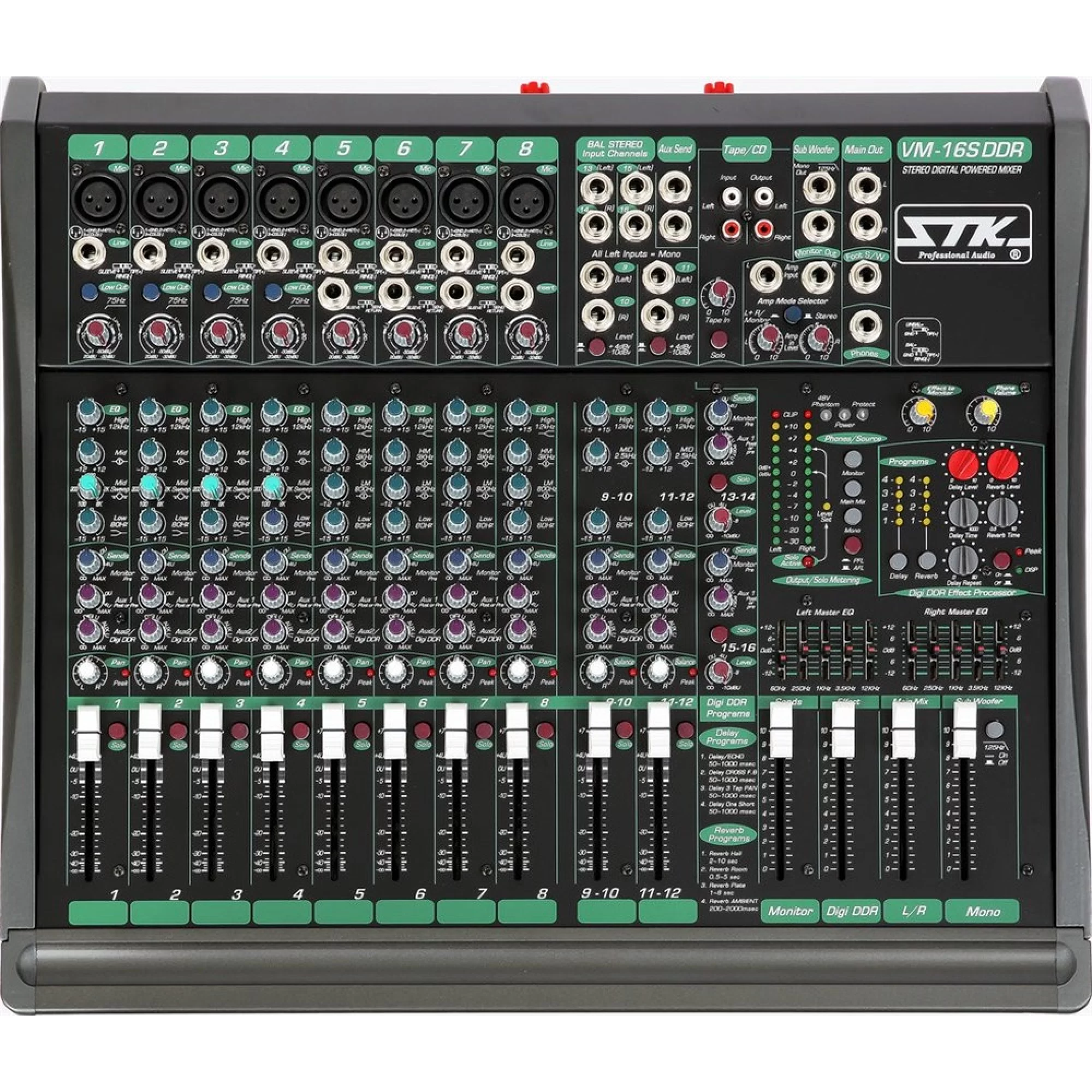

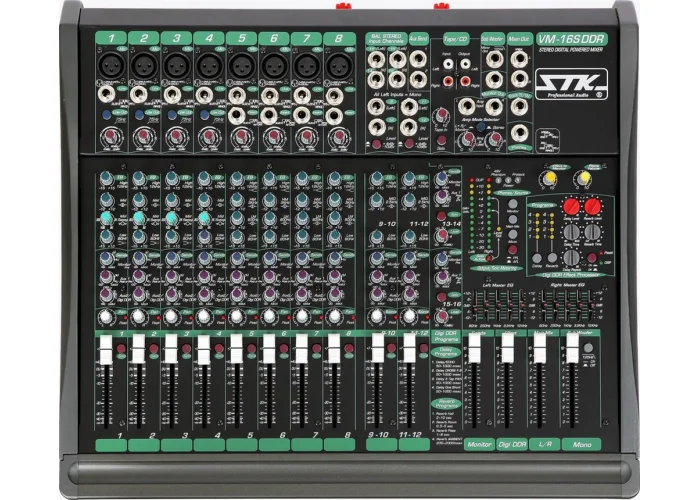

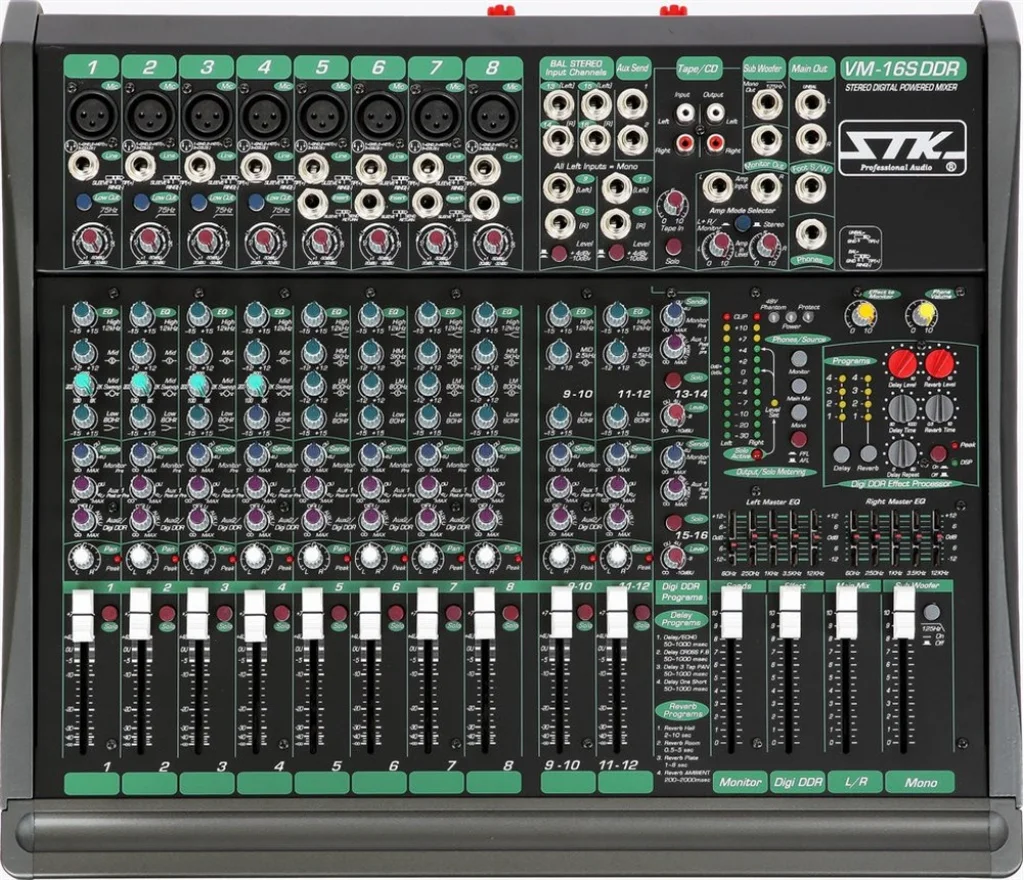

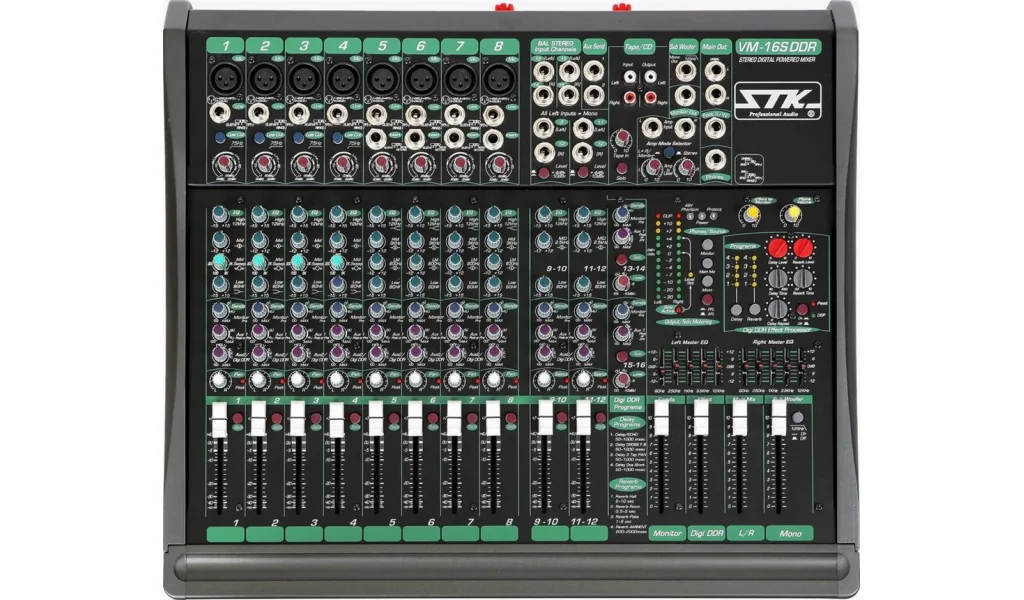

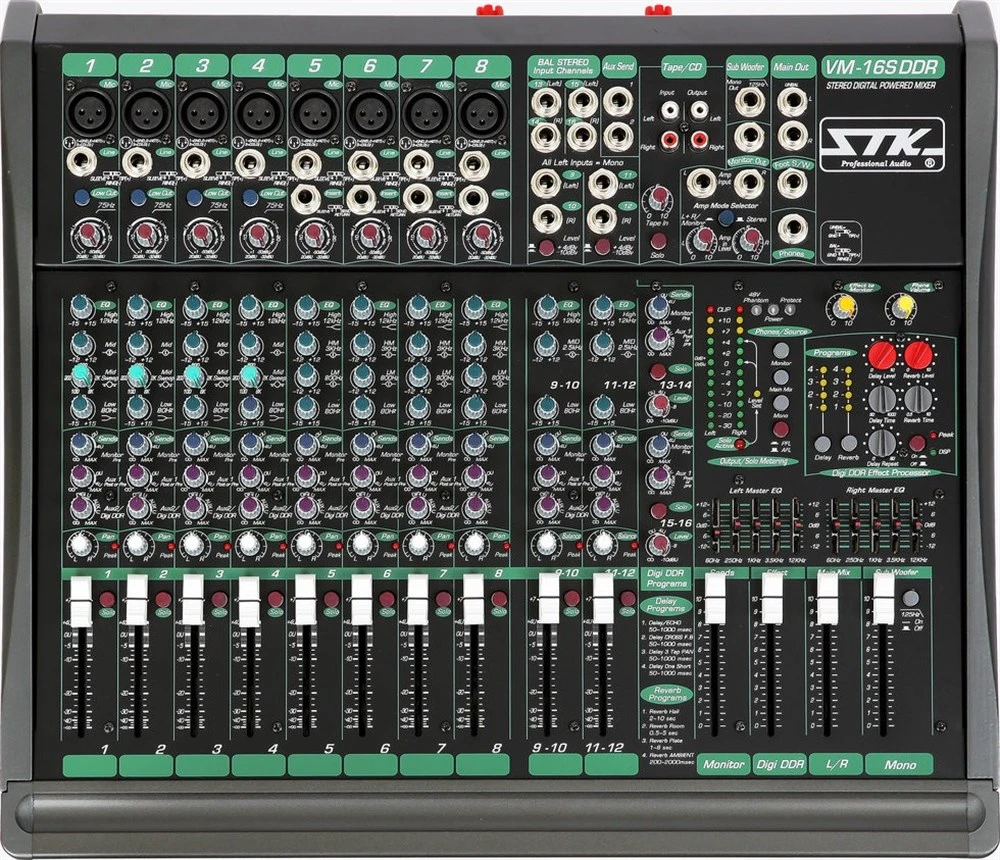

The VM16S-DDR have a same class features of the SM-16SDDR Mixer section.
Lot of Inputs configurations with studio quality Mic preamps and total 900W powerful outputs in a compact size.
- New Green design for "U" mark level setting.
- 16 CH 32 input configurations.
- STK studio quality MIC preamps, superbly flat 0.005% THD.
- The faders precision log-taper type, made by PANASONIC.
- The CH Pan Pots are constant loudness control type design.
- Ultra low noise circuit board design “STK STANDARD”
- The G.EQs precision frequency controls,low noise,no clipping design
- Ultra-realistic sound with 20kHz response dual variable DDR digital effector
- Lowest in-rush trodial transformers, T-tunnel design heat sink cooling.
- FET control quiet power on/off muting circuits.
- Available rack mounting 8U space.
SPECIFICATIONS | ![](http://www.stkpro.com/products/kir_01_icon_001.gif) |
|
|
Model | VM16S-DDR | Configuration | | Power(EIA) | | 4 ohm load per channel | 440W + 440W | 8 ohm load per channel | 300W + 300W | Rated Power(20-20kHz) | | 4 ohm load | 430W + 430W | 8 ohm load | 290W + 290W | Distortion (THD & SMPTE IND; 20Hz to 20kHz) | | Mic input to main mixes output | 0.01% | Mic input to power amp output | 0.05% | Inputs (all 1/4” TRS are Bal./Unbal.except*) | | Mono mic/line | 8 (XLR and TRS1/4") | Stereo line | 2(left/mono) + 2(Right) | CH Insert | TRS 1/4" | Tape | Stereo RCA | Stereo line(Utility) | 2(1&2 Left) + 2(1&2 Right) | Amp in | 1 TS 1/4" L, 1 TS 1/4" R | Outputs (all 1/4” TRS are Bal./Unbal.except*) | | Main L/R Stereo | Dual TRS 1/4” | Main Mono(Subwoofer) | 1 TRS 1/4” | Aux Sends | Dual TRS 1/4” | Tape L/R Stereo | Stereo RCA | Phones | TRS 1/4” | Speaker Outputs | TS 1/4" /Speakon | Channel Strips | | Aux controls | 1 + 1 EFX + 1 Mon | Constant Loudness pan control | Yes | Channel solo with metering | Yes | LED indicators | Peak | Volume controls | 60 mm Faders | Master Section | | Digi EFX | Dual Variable | Reverb Control | 1 Time Pot(0.5~10 sec)+1 Level Pot | Delay Control | 1 Time Pot (50~1000 msec)+1 Level Pot | Repeat Control | 1 Delay Feedback Pot(0-90%) | Program | Delay/Echo, Delay Cross F.B, Delay 3 Tap Pan, Delay One Short, Reverb HALL, Reverb Room, Reverb PLATE, Reverb AMBIENT | Digi EFX Control | On/Off, LED Level Set | Digi EFX Buss Control | 1 Mon + 1 Main | 5 Band Graphic Equalizer | 1 Left + 1 Right | Power AMP Routing | Yes | Foot Pedal EFX Jack | Yes | Amp In Level Control | Yes | Tape In Level Control | Yes | Global AFL/PFL Solo Mode | Yes | Aux/Monitor Send Master | 60 mm Faders | Main Mix Volume | 60 mm Faders | Mono Master | 60 mm Faders | Noise | | Master Gains@Unity, CH.gains Down | 87dB | Master Gains@Unity, CH.gains@Unity | 85dB | Signal to Noise Ratio | ≥97dB | Crosstalk | | Adjacent inputs or input to output | -90 dB | Frequency Response | | 20Hz to 40kHz(Mic Pre Section) | +0, -1dB | 20Hz to 30kHz(Power Amp Section) | +0, -1dB | Maximum Levels | | Mic Preamp Input | +14 dBu | Power amp in | +22dBu | All Other inputs | +20 dBu | Impedances | | Mic Preamp Input | 4k Bal | All Other input | 10k | Line Input | 4k | Equalization | 3 Band Mid Sweep & 4 band fixed | Low EQ(±15dB) | 80Hz±15dB | Mid EQ(±12dB) | 100Hz-8kHz±12dB & fixed 800Hz,3KHz | Hi EQ(±15dB) | 12kHz±15dB | Low-Cut Filter | 18dB/Oct 75Hz | Micriphone Preamp E.I.N.5 | -128 dBm | Power Requirements | 1200 Watts | Dimension(WxHxD) | 515 x 146 x 405 | Shipping/CBM | 0.0621 | Net Weight | 19.5 kg | Shipping Weight | 20.8 kg |
|
