JBL VTX A8 2x8" Line Array LoudHoparlör

JBL VTX A8 Dual 8" Compact Line Array Loudspeaker With 110º Dispersion

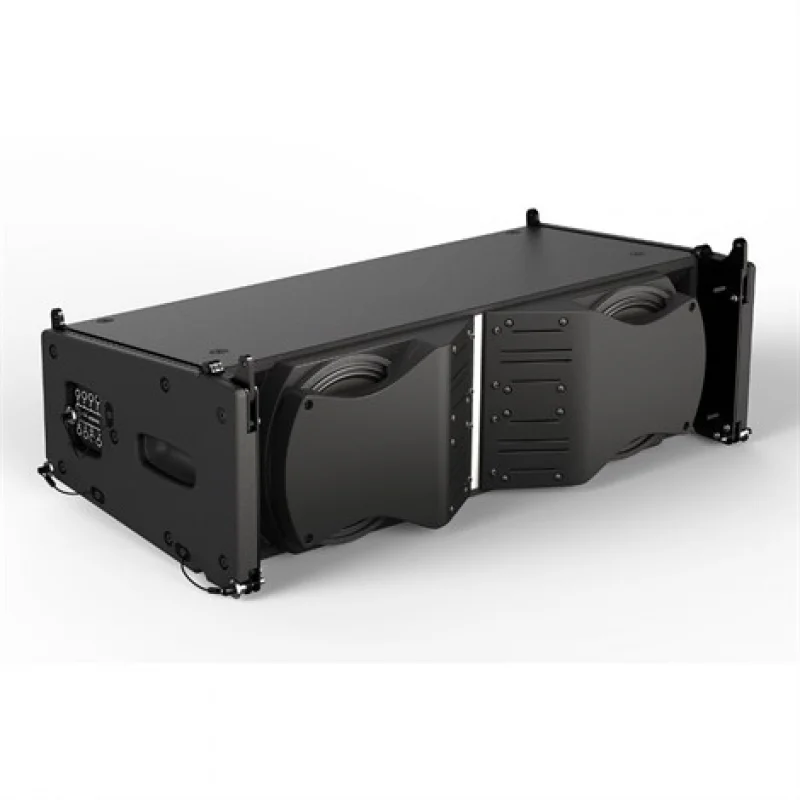

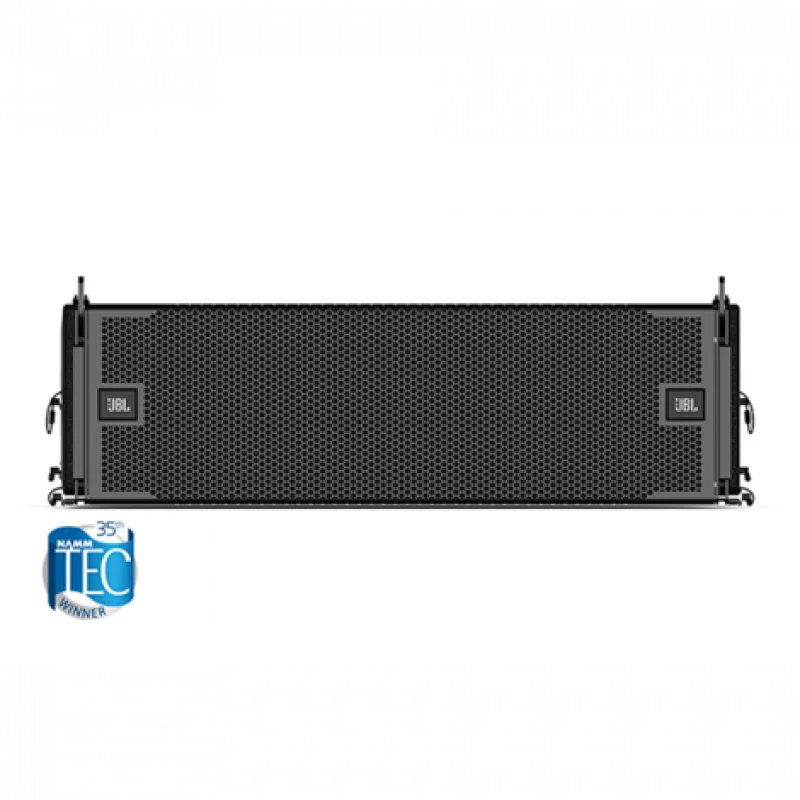

The VTX A8 is a next-generation line array element that delivers JBL Professional’s flagship VTX A Series technology in a compact solution for small to mid-size rental and installed applications. The VTX A8 was designed to solve the diverse sound reinforcement needs of production companies, rental houses, theaters, houses of worship, as well as production applications requiring front fills, side arrays or other auxiliary support for larger-scale VTX systems. Proprietary JBL woofers and our latest-generation high-frequency transducer and waveguide technology, provides unmatched performance, efficiency, and a consistent 110-degrees of horizontal coverage. The A8 combines two 8” woofers, four 3.5” midrange drivers and two 2” high-frequency drivers in a single low-profile cabinet. Proprietary double-flared low-frequency ports, precisely calculated for greater low-frequency performance extend the usable operating range down to 49Hz. The VTX A8 shares the VTX A Series’ patented rigging mechanism and suspension system for streamlined deployment, while a comprehensive suite of accessories open up a world of configuration options.

Used on its own or in conjunction with the VTX B18, A12 or A12W, the VTX A8 expands the JBL VTX A Series to offer audio professionals a complete toolset for designing optimal sound systems for any application.

Features

• Innovative 3-way (bi-amp) design for best-in-class performance
• JBL Differential Drive™ woofers and Slip Stream™ ports deliver optimal bass response down to 49 Hz
• Common HF compression driver across A-Series products provides excellent sonic consistency
• Mid-frequency Radiation Boundary Integrator® (RBI) design maximizes transducer density and improves horizontal directivity
• Innovative auto-locking rigging mechanism for streamlined, rapid deployment
• Built-in MF/HF passive network allows for reduced amplifier channels
• Full-face, enclosed grille for refined aesthetics and weatherization (IP55)
• Comprehensive mounting accessories expand configuration options
• Integrates seamlessly with JBL system control and prediction software
• Compact, lightweight design

Accessories

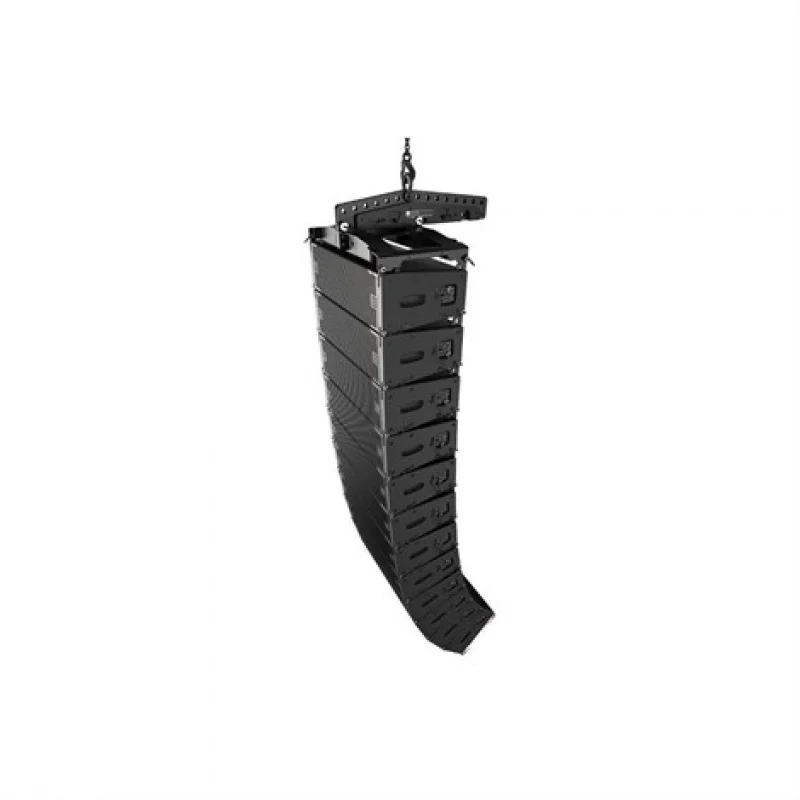

VTX A8 AF | Array Frame

Larger Images

Highlights:

• Support for up to 24 x VTX A8 enclosures
• Compatible with VTX A8 and VTX B18
• Several pick-point options
• 0.5° pick-point resolution
• Built-in storage position for extension bar
• Includes 1 x VTX A8 AF EB extension bar
• Support for 3rd-party laser inclinometers
• Compatible shackle size: 5/8”

Included:

• 1 x VTX A8 AF
• 1 x Extension Bar
• 1 x Laser Bracket
• 3 x 5/8” Shackles

Documentation

•  VTX A8 AF Specsheet [579 KB]
•  VTX A8 AF Customer Drawings [799 KB]

VTX A8 AF EB | Extension Bar

Larger Images

Highlights:

• Extension Bar for use with VTX A8 AF
• 0.5° pick-point resolution
• Includes 3 x shackles and mounting brackets
• Lightweight design
• Compatible shackle size: 5/8”

Included:

• 1 x VTX A8 AF EB Extension Bar
• 3 x 5/8” Shackles
• 4 x VTX Extension Bar Attachment Brackets
• 1 x Set of Screws for Bracket Installation

Documentation

•  VTX A8 AF EB Specsheet [324 KB]
•  VTX A8 AF EB Customer Drawings [567 KB]

VTX A8 SB | Suspension Bar

Larger Images

   Highlights:

• Versatile suspension bar accessory
• Compatible with VTX A8 and VTX B18
• Used for suspension or pull-back applications
• Support for up to 24 x A8 or 16 x B18 enclosures
• Lightweight design
• Shackle Size: 5/8”

Included:

• 1 x VTX A8 SB Suspension Bar
• 1 x 5/8” 4.5T Shackle

Documentation

•  VTX A8 SB Specsheet [1.23 MB]
•  VTX A8 SB Customer Drawings [1.17 MB]

VTX A8 MF | Mini Frame

Larger Images

Highlights:

• Compact and lightweight design
• Compatible with VTX A8 and VTX B18 enclosures
• Single-point and side-by-side pick-point options
• 0.5∞ pick-point resolution
• 3-part collapsible design
• Compatible shackle size: 1/2"

Included:

• 1 x VTX A8 MF Mini Frame
• 2 x 1/2" Shackles

Documentation

•  VTX A8 MF Specsheet [1.3 MB]
•  VTX A8 MF Customer Drawings [3.58 MB]

VTX RC500 | Rotating Clamp

Larger Images

Highlights:

• Universal truss/pipe clamp adapter
• Support for up to 500 kg (1100 lbs)
• Adjustable clamping mechanism
• Pipe range: .5” – 2”
• Includes bearing for smooth 360∞ rotation
• 10∞ rotation marks for horizontal array aiming

Included:

• 1 x VTX RC500 Rotating Clamp

Documentation

•  VTX RC500 Specsheet [1.74 MB]
•  VTX RC500 Customer Drawings [5.67 MB]

VTX DELTA | Delta Plate

Larger Images

Highlights:

• High-quality universal delta plate accessory
• Support for up to 24 x JBL Line Array enclosures
• Allows for up to +/- 10 degrees of horizontal adjustment
• Lightweight design
• Includes 3 x 5/8” shackles
• Recommended point spacing: 1 meter (3.3’)
• Color: black

Included:

• 1 x VTX Delta - Rigging delta plate
• 3 x 5/8” CM Shackles

Documentation

•  VTX DELTA Specsheet [846 KB]
•  VTX DELTA Customer Drawings [575 KB]

VTX A8 VT | Vertical Transporter

Larger Images

Highlights:

• Vertical transport cart for 4 x VTX A8 enclosures
• Truck-friendly dimensions
• Includes a hard top for easy stacking
• Built-in stacking features for easy storage
• Lightweight design
• Heavy-duty casters

Included:

• 1 x VTX A8 VT
• 1 x VT-TOP

Documentation

•  VTX A8 VT Specsheet [999 KB]
•  VTX A8 VT Customer Drawings [1.77 MB]

VTX A8 VT CVR | Cover

Larger Images

Highlights:

• Heavy-duty soft cover for VTX A8 enclosures
• Covers 4 x VTX A8 enclosures on a VTX A8 VT
• Includes input-panel flaps for testing purposes
• Clear see-through pocket for shipping labels
• Handle cut-outs for easy transportation
• Folds and stores in the VTX A8 VT
• Heavy-duty industrial-grade zippers

Included:

• 1 x VTX A8 VT CVR Soft Cover

Documentation

•  VTX A8 VT CVR Spec Sheet [67.3 KB]

VTX A8 BP | Base Plate

Larger Images

Highlights:

• Used for ground stacking VTX A8
• Connects VTX A8 cabinets to subwoofers
• Universal M20 attachment method
• Range: -15∞ to +5∞
• Lightweight design

Included:

• 1 x VTX A8 BP Base Plate
• 4 x Stabilization feet for the B1

Documentation

•  VTX A8 BP SpecSheet [1.09 MB]
•  VTX A8 BP Customer Drawings [5.11 MB]
