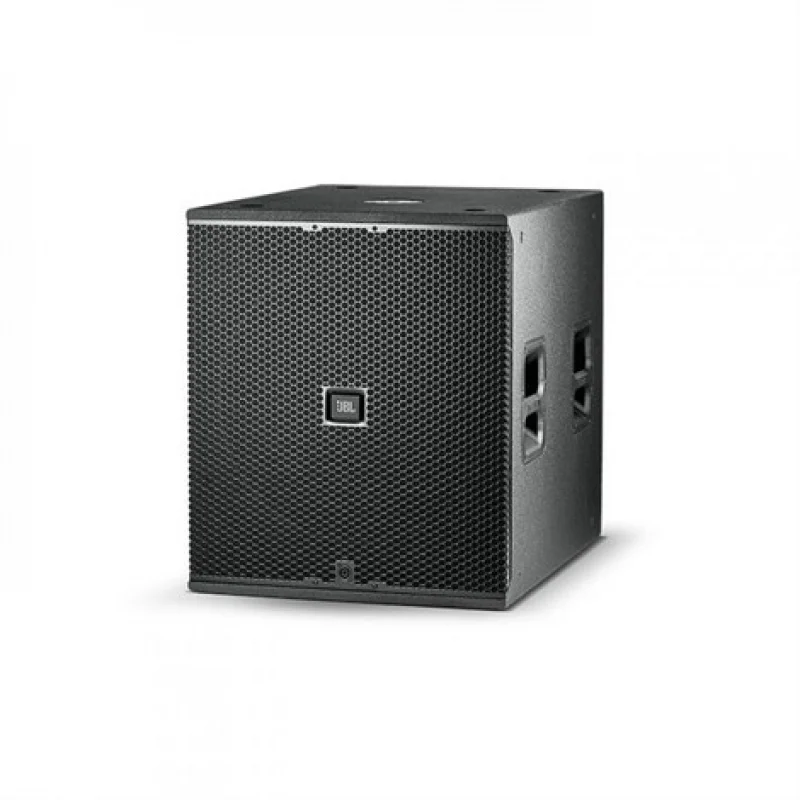

JBL VTX-F18S 18" Compact Single Subwoofer
The VTX F series is a line of multi-purpose loudspeakers designed to give sound production companies a variety of flexible options for deploying high-quality audio, either as a stand-alone FOH system, a satellite and subwoofer system (with companion VTX F18S), or on-stage floor monitor and fill speaker.
Features
- 2269H Differential Drive 18"
- Exceptionally High Power Handling (2000 W Continuous, 8000 W Peak AES 2 hr)
- Massive Linear Excursion Capability (3.5" peak-to-peak)
- Reverse-Cardioid Arrayable (front NL4)
- Reinforced M20 Extension Rod Receptacle
- 16x M10 Mount Points (4 per side, 4 top/bottom)
- Convenient Handle Locations (4x)
- Attachment plates included as standard for stacked F18S plus F12 or F15 configurations
Specifications
| System Type | High Power Single 18” Differential Drive® Subwoofer |
| Components | 1 x 2269H, 460 mm (18 in) dia.,100 mm (4 in) Dual Coil Neodymium Differential Drive®, Direct Cooled™ Transducer |
| Frequency Range (-10 dB) | 24 Hz - 2.2 kHz |
| Frequency Response (+/-3 dB) | 32.5 Hz - 1.7 kHz |
| Sensitivity (1W, 1m) | 97db half space |
| Nominal Section Impedances | 8 ohms |
| Transducer Power Rating (AES 2 hour) | 2000W cont 8000W peak |
| Dimensions (W x H x D) Vertical cabinet orientation | 640.1 x 548.6 x 713.7 mm (25.2 x 21.6 x 28.1 in) |
| Weight | 45.4 kg (100 lbs) |
