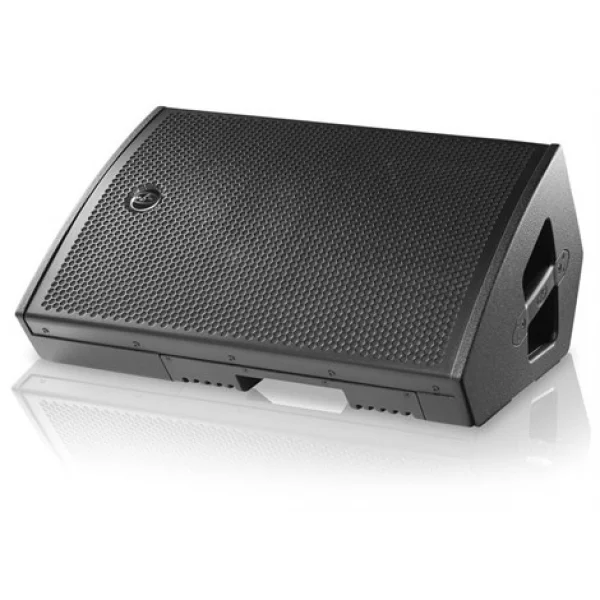

DAS Road-12A 1 x 12 + 1.5 550 Watt Aktif Sahne Monitör
- 2-way powered stage monitor system
- Two channel Class D amplifier 550 W LF + 220 W HF
- 12” loudspeaker with 3” voice coil”
- M-75 compression driver
- Low-profile design for minimum visual impact
- Hidden connector panel and LEDS
- Two side located handles-Heavy duty ISO-flex paint finish
- Right and Left hand versions (Road 12AR/Road 12AL)
The Road 12A is a powered stage monitor that incorporates a 12R4 cone loudspeaker for bass reproduction. High frequencies are handled by an M-75 compression driver with 1.5” exit, a 3” titanium diaphragm and EFW voice coil.
The biamplified system uses a 3G Class “D” amplifier with 550 W powering the low frequency section and a 220 W powers the highs. The montior´s compact dimensions, attractive design and standard pole mount socket make it ideal for use as a pole mountable multi-purpose system.
Nominal LF Amplifier Power | 550 W |
Nominal HF Amplifier Power | 220 W |
Frequency Range (-10 dB) | 55 Hz-23 kHz (EQ monitor) |
Rated Peak SPL at 1 m | 134 dB |
Dispersion | 40ºH x 60ºV Rotatable |
Enclosure Material | Birch Plywood |
Color/Finish | Black/ISO-flex Paint |
Connectors | Input: Female XLR
Loop Thru: Male XLR
AC Input: PowerCON
AC Output: PowerCON |
AC Requirements | 3.4 A, 115 V, 50/60 Hz
1.7 A, 230 V, 50/60 Hz |
Dimensions (H x W x D) | 32.4 x 64.8 x 42 cm
12.8 x 25.5 x 16.5 in |
Weight | 23.5 kg (51.7 lb) |
