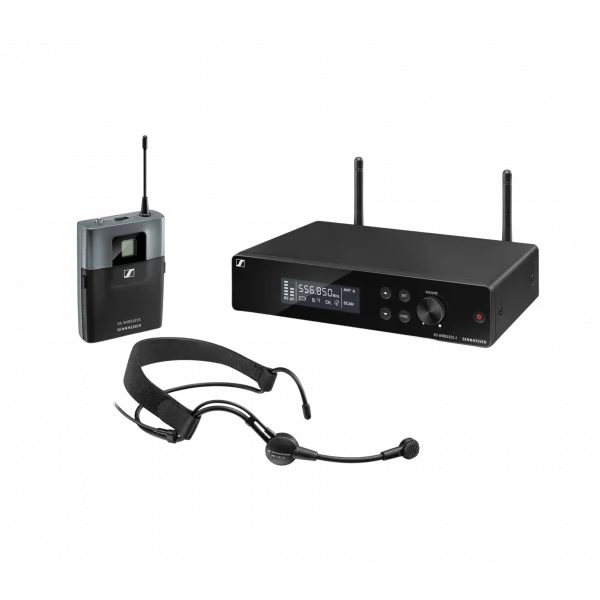

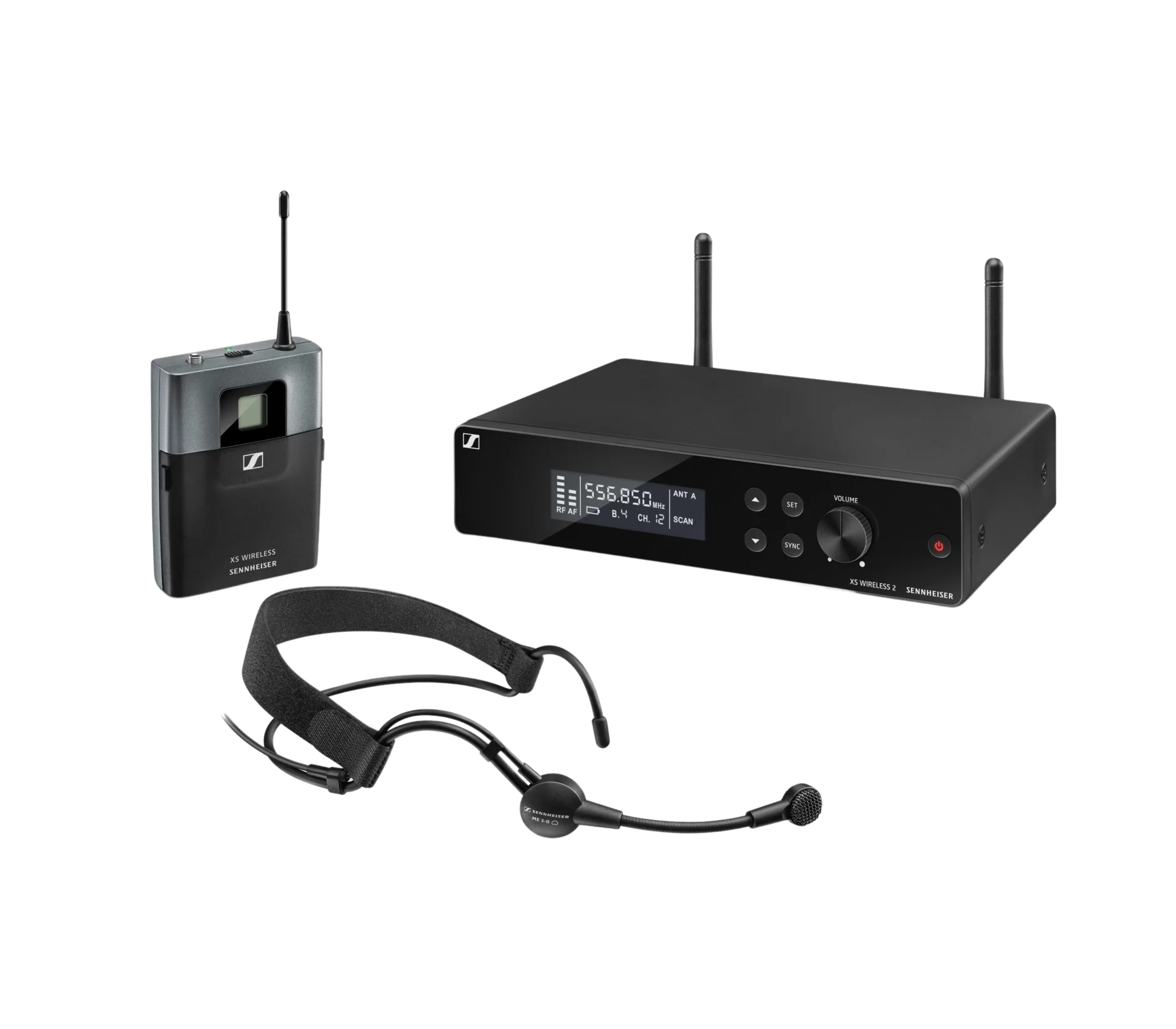

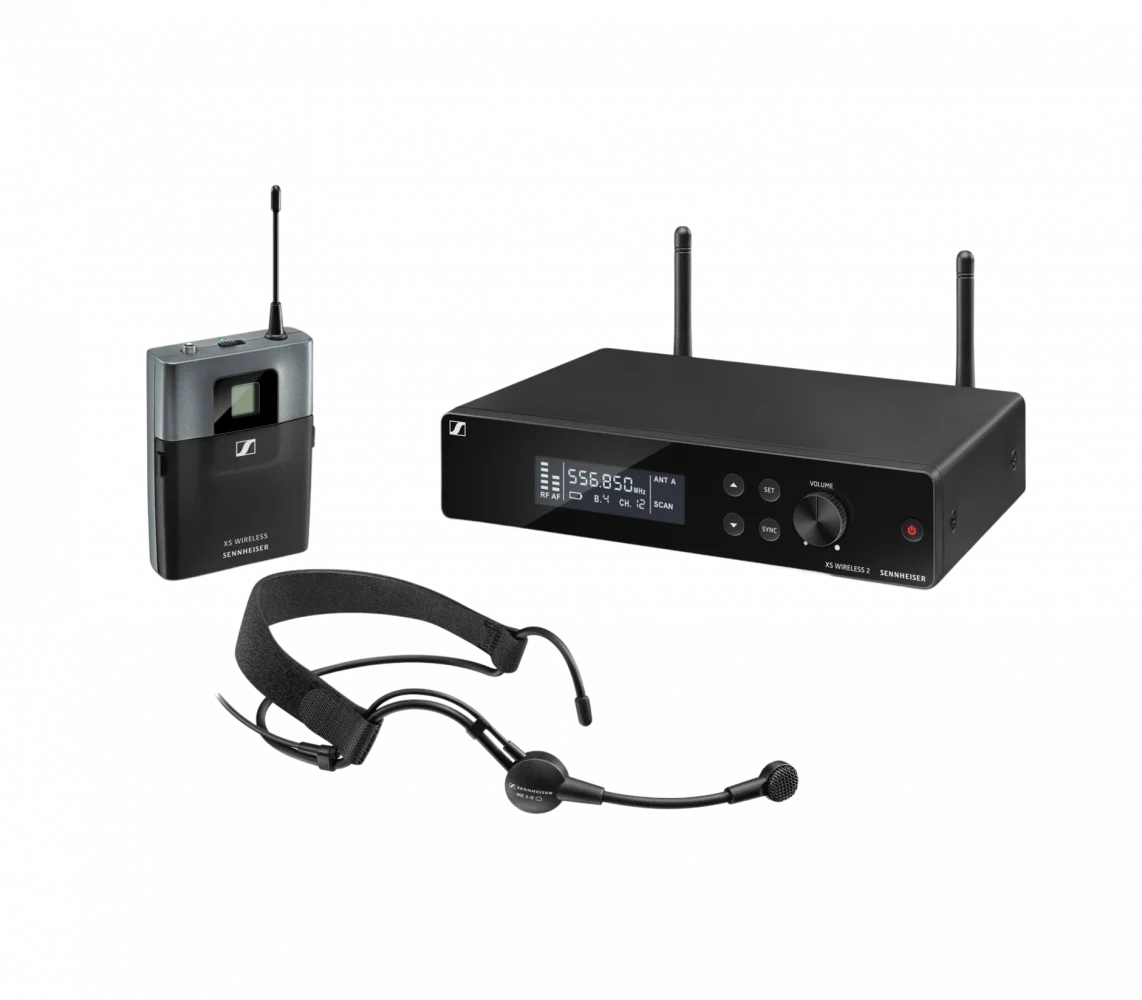

The XS WIRELESS 2 HEADMIC SET is an easy to use all-in-one wireless system for singers and performers, excellent for live sound that involves dancing and singing all at the same time. Metal receiver housing and rackmount kit included.
Lightweight headmic for hands-free operation and compact bodypack transmitter
True diversity receiver with metal housing
External antennas
Automatic frequency management and synchronization via remote channel for easy setup
Fully tunable over a wide range of UHF frequencies
Rackmount kit included
Up to 12 compatible channels
Specifications
Receivers
Transmitter
Microphone
condenser
Frequency response
50 to 16,000 Hz (–3 dB)
THD, total harmonic distortion
≤ 0.9%
Pick-up pattern
cardioid
Signal-to-noise ratio
≥ 103 dBA
RF output power
10 mW
Switching bandwidth
up to 24 MHz
Modulation
wideband FM
Output voltage
1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Diversity reception
True Diversity
Frequency
8 frequency banks, each with up to 12 factory-preset channels
Frequency range
A: 548-572 MHz, GB: 606-630 MHz, B: 614-638 MHz, C: 766-790 MHz, D: 794-806 MHz, E: 821-832 MHz, 863-865 MHz, K: 925-937.5 MHz
Sensitivity
< 3 μV at 52 dB(A)rms S/N
Squelch
switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
Synchronization
2.4 GHz, Low Power OQPSK (only active during synchronization)
Adjustment Range Transmitter
0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range
40 dB, adjustable in 5-dB steps
Line / Mic level
20 dB, switchable
Temperature Range
operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle
double superheterodyne
Whats in the Box
- 1 receiver EM-XSW 2
- 1 bodypack transmitter SK-XSW
- 1 headset microphone ME 3-II
- 1 power supply NT 12-5 CW
- 2 AA batteries
- 1 rackmount kit
- 1 pouch
- user manual
