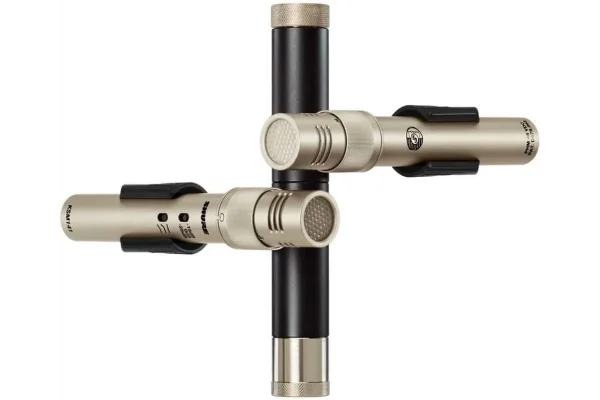

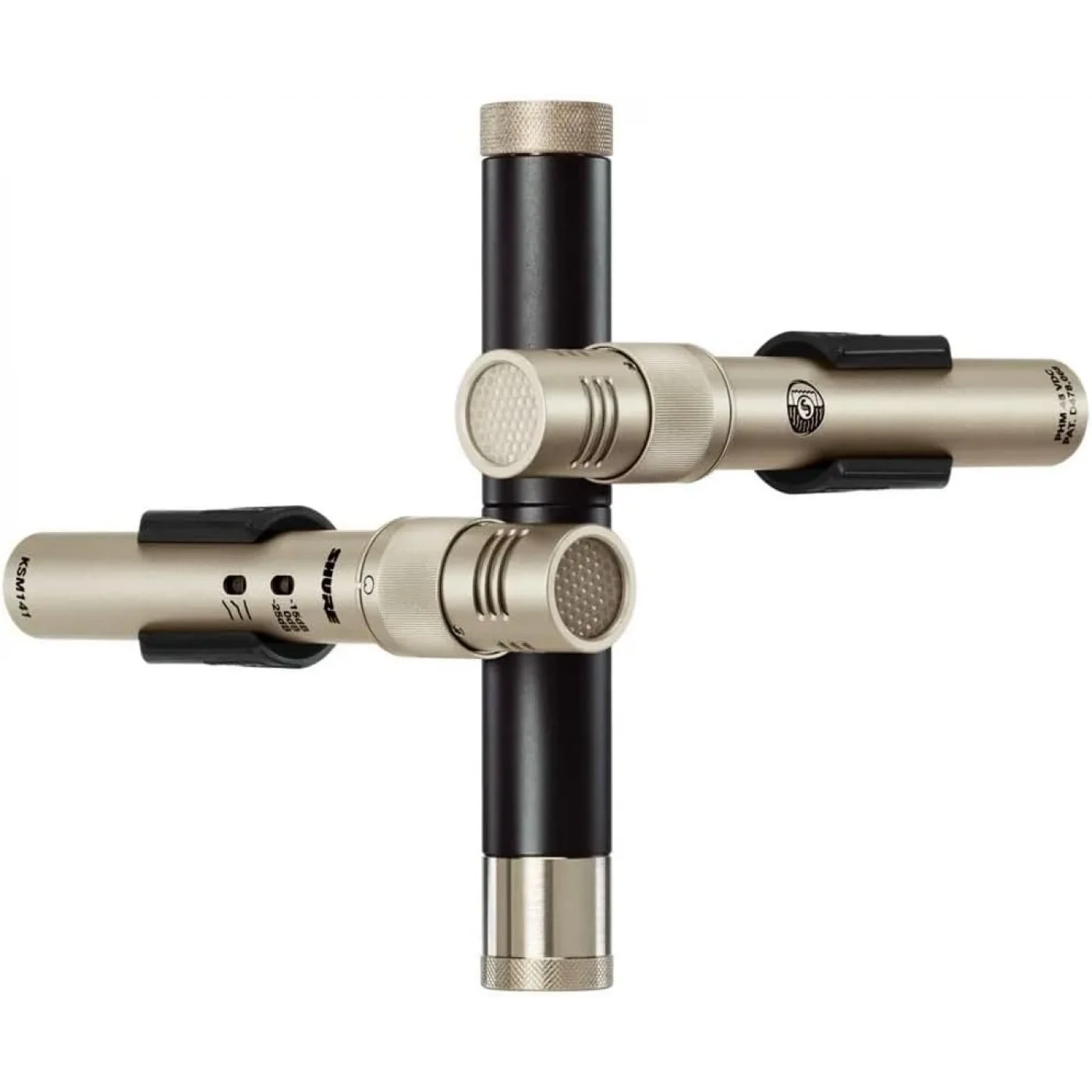

Shure KSM141/SL Dual-Pattern Studio Condenser Microphone

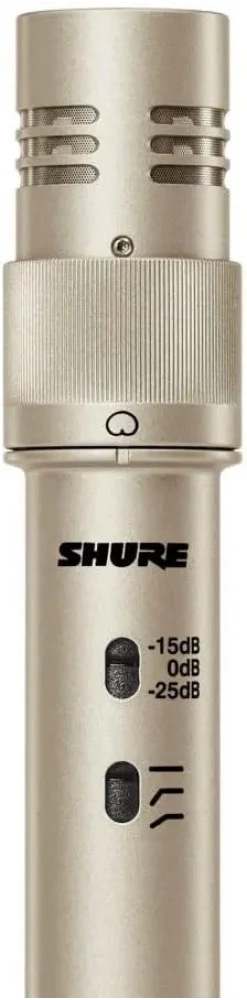

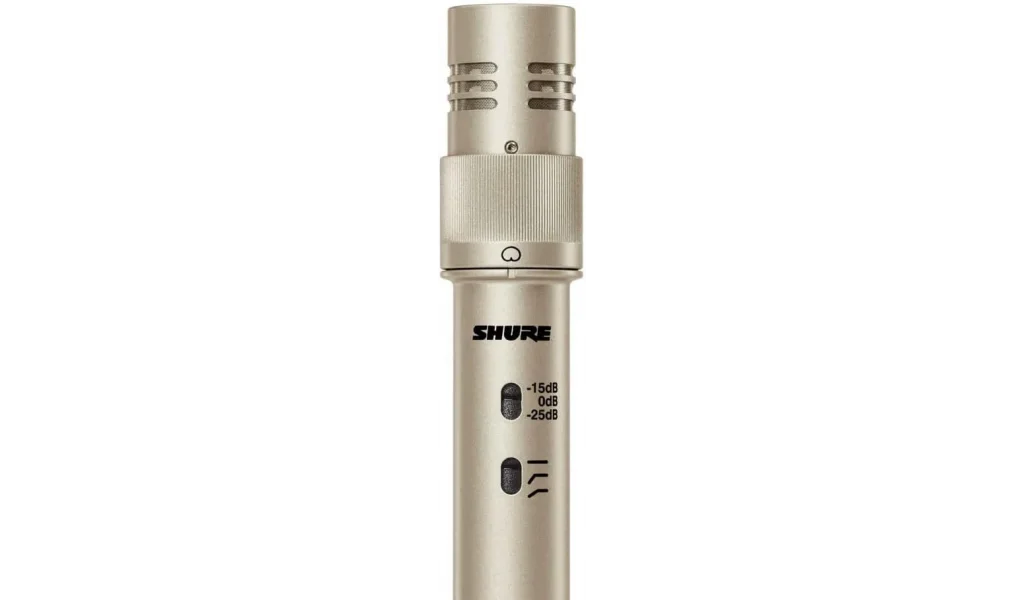

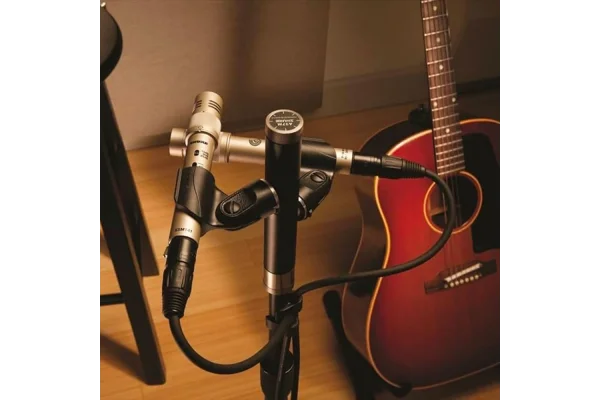

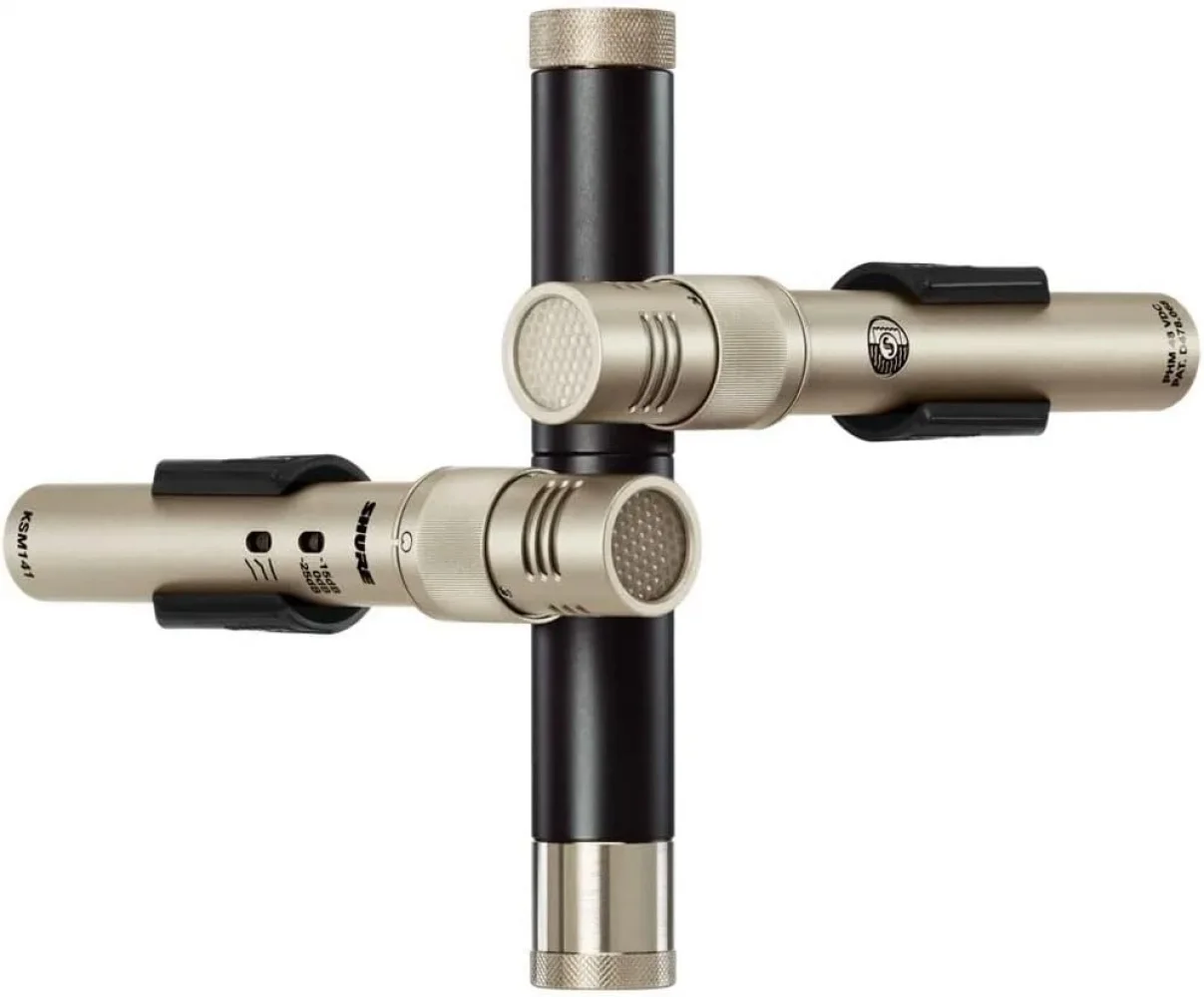

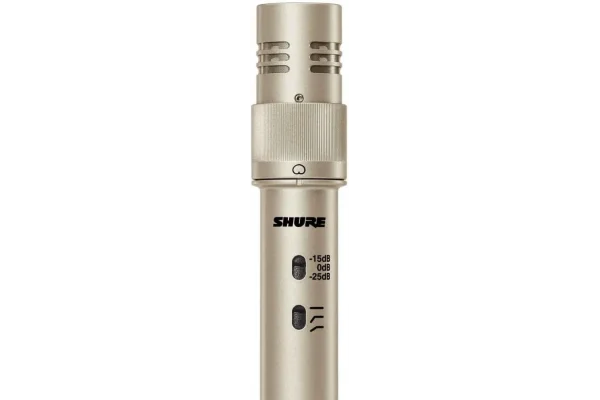

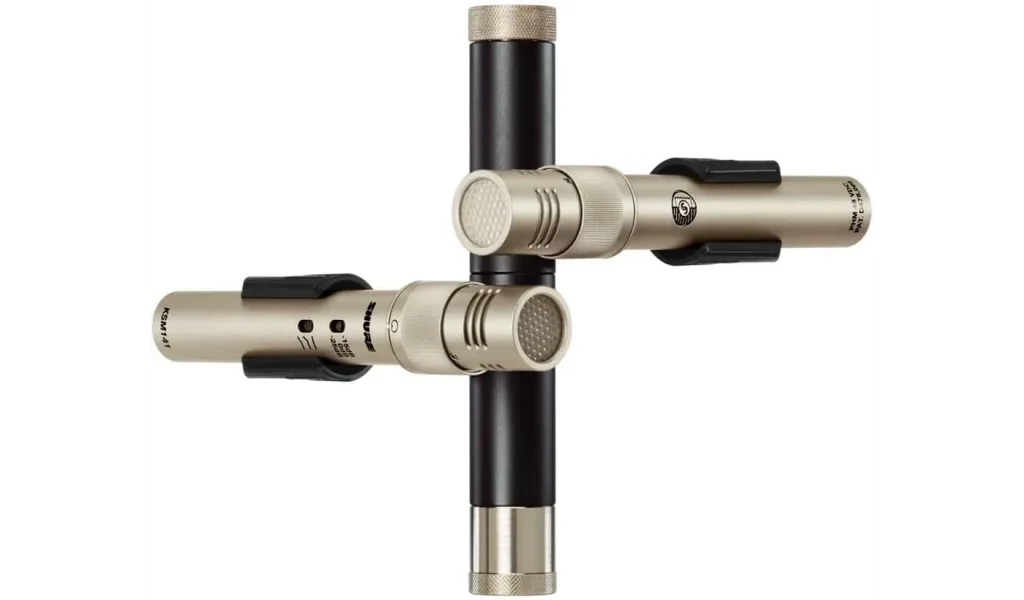

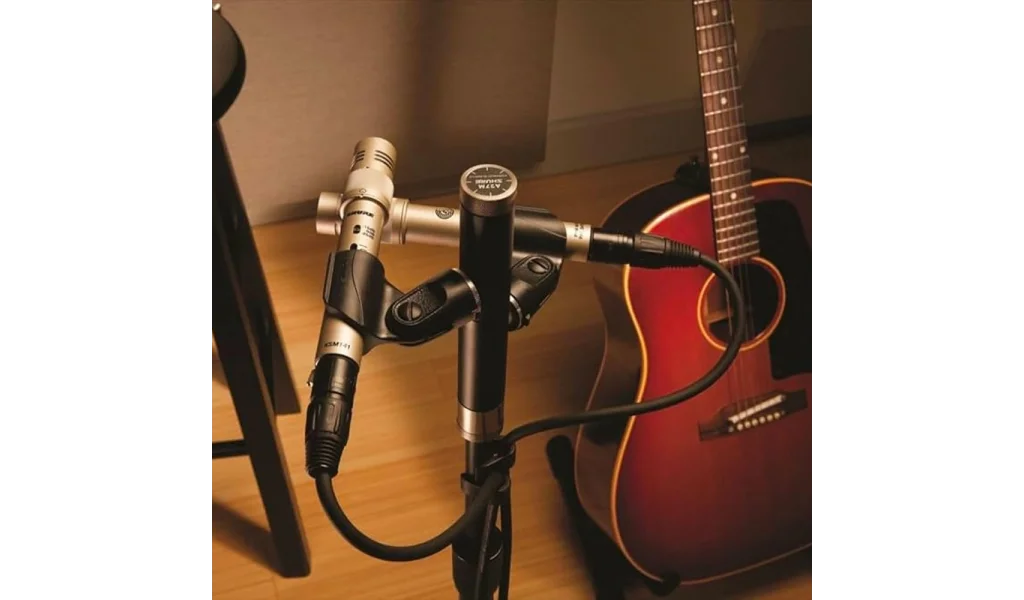

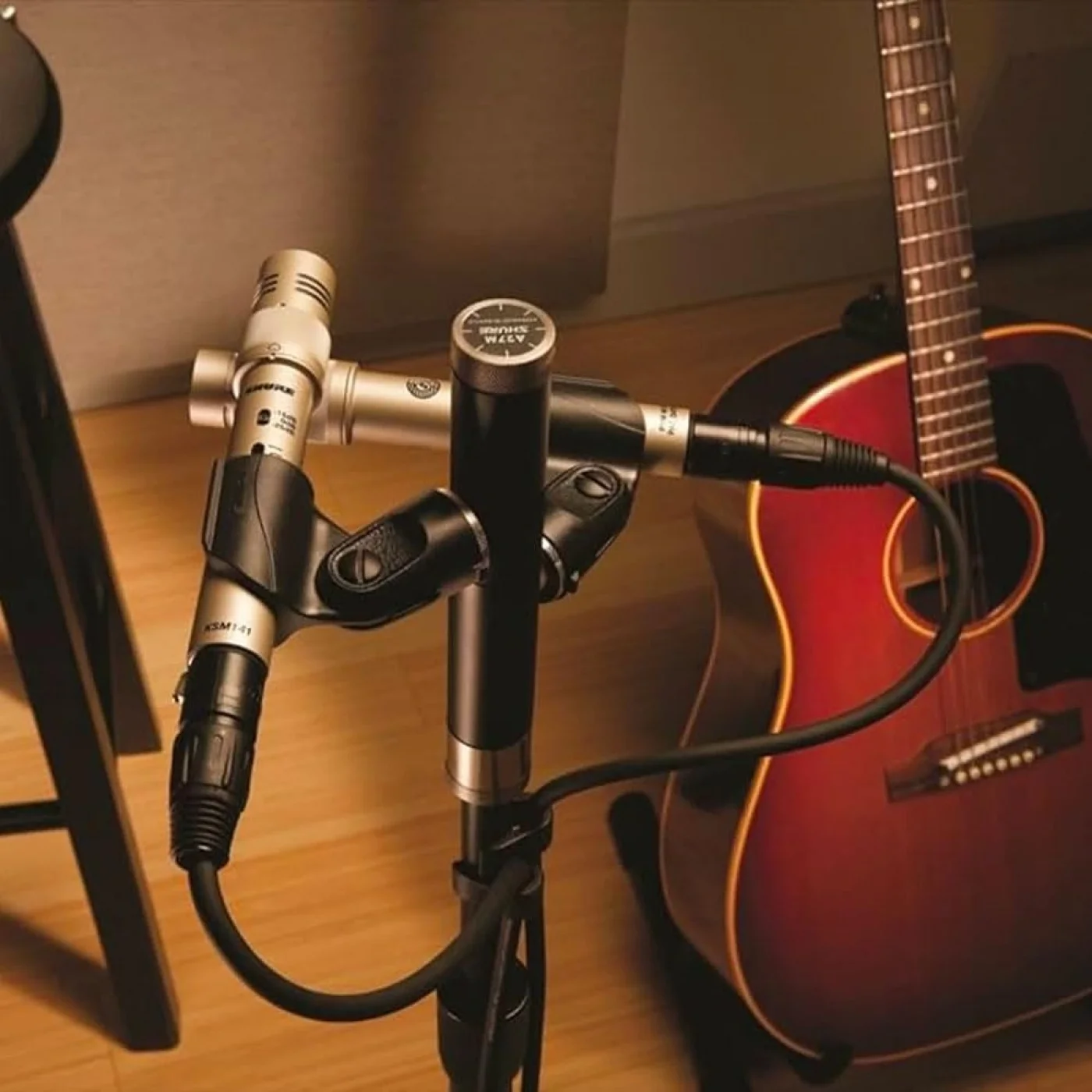

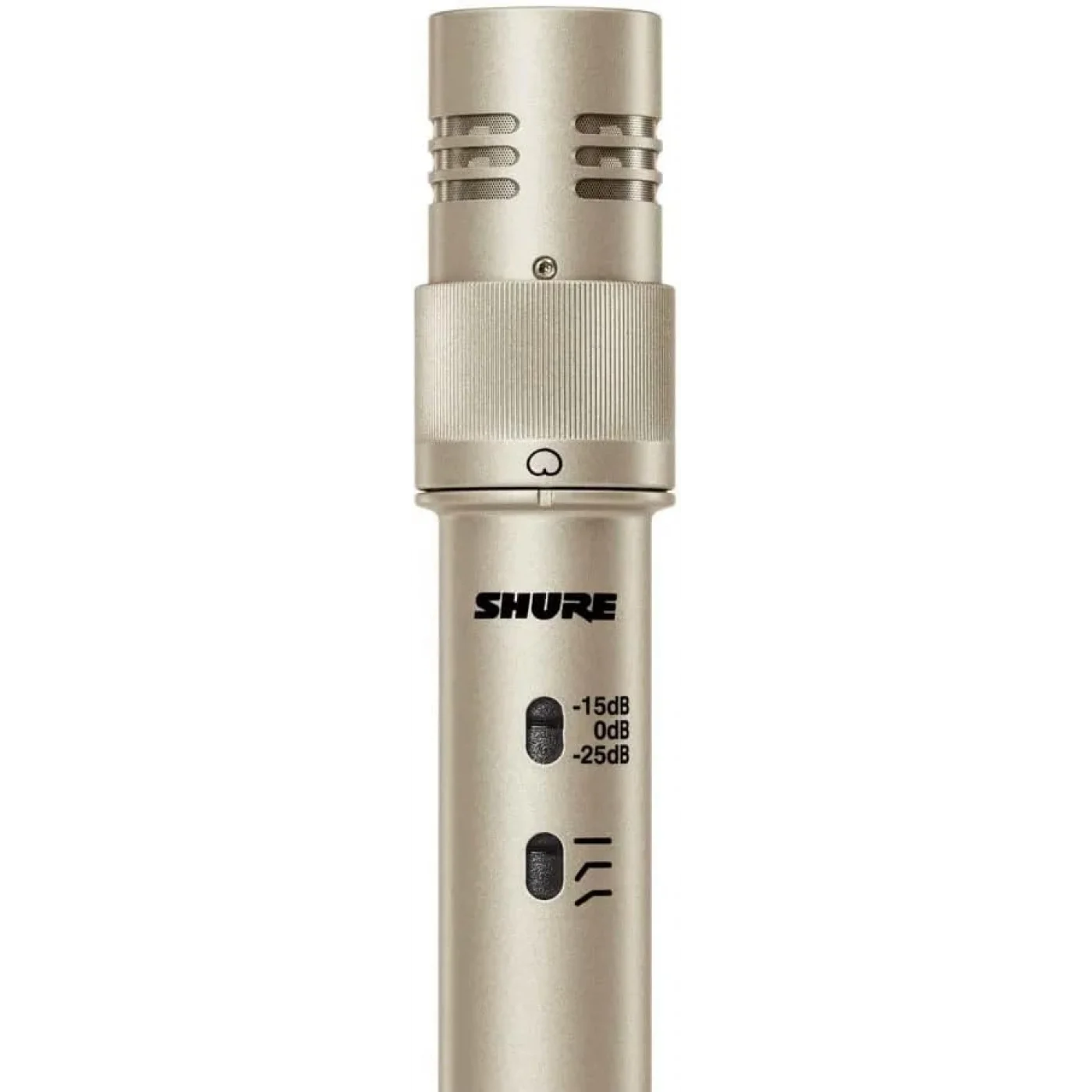

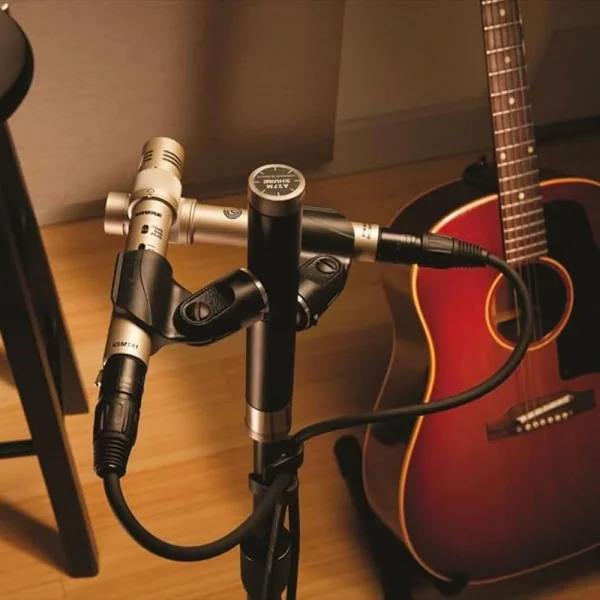

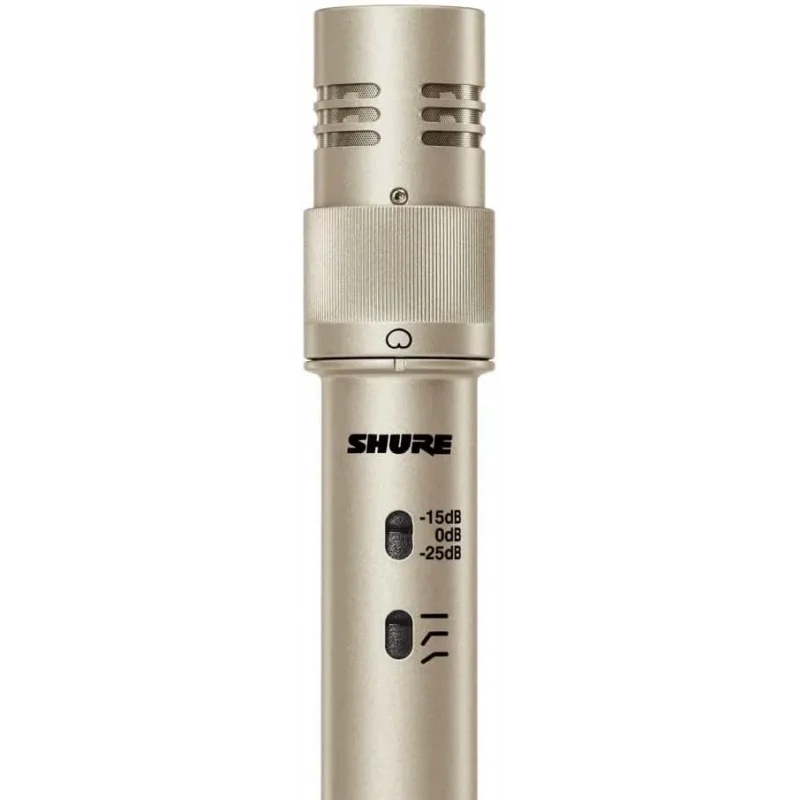

The KSM141/SL Stereo from Shure is a switchable polar pattern, condenser studio microphone pair designed for instrument recording and sound reinforcement. The microphone capsule is switchable between a true omni-directional and a cardioid pattern using a rotating collar. The omni-directional pattern offers a greater pick up area, while cardioid offers attenuation of noise and ambiance at the off-axis sections of the microphones.
- End-Addressed Condenser
- Extended Frequency Response
- Low Self-Noise
- Uniform Polar Response
- Withstands High SPL
- High Output Level
- No Crossover Distortion
| Transducer | Permanently biased condenser |
| Frequency Response | 20Hz to 20kHz |
| Polar Pattern | Cardioid and omni-directional |
| Output Impedance | 150Ω (actual) |

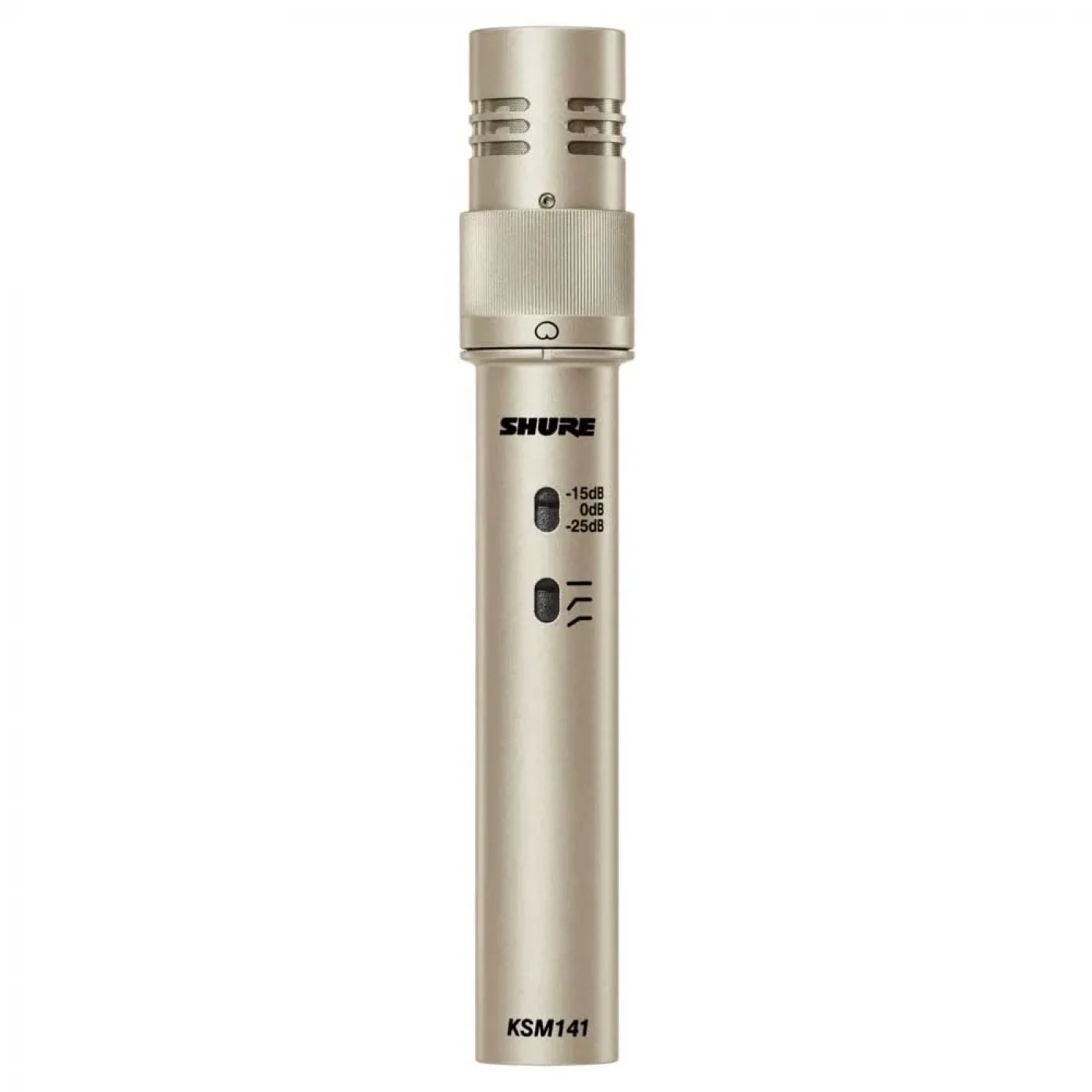

| Switches | Attenuation: 0, 15, or 25dB
Low Frequency Response: Flat or -6db/octave below 115Hz |
| Power Requirements | +48V phantom power |
| CMRR | >50dB, 20Hz to 20kHz |
| Output Polarity | Positive pressure on diaphragm produces positive voltage on output pin 2 relative to pin 3 |
| Sensitivity | -37dBV/Pa (typical, @ 1kHz; 1Pa = 94dB SPL) |
| Noise | Self Noise: 14dB (typical, equivalent SPL; A-weighted, IEC 651)
SNR: 80dB |
| Maximum Input Sound Level | 5kΩ Load (Attenuator ON): 145 (160, 170)dB
2.5kΩ Load (Attenuator ON): 139 (154, 164)dB
1kΩ Load (Attenuator ON): 134 (149, 159)dB |
| Output Clipping Level | 5kΩ Load: 15dBV
2.5kΩ Load: 9dBV
1kΩ Load: 3dBV |
| Dynamic Range (Typical) | 5kΩ Load: 131dB
2.5kΩ Load: 125dB
1kΩ Load: 120dB |
| Output Connectors | Balanced XLR |
| Dimensions (L x D) | 5.8 x 0.8" (146 x 20mm) |
| Weight | 5.5 oz (156g) - each |
