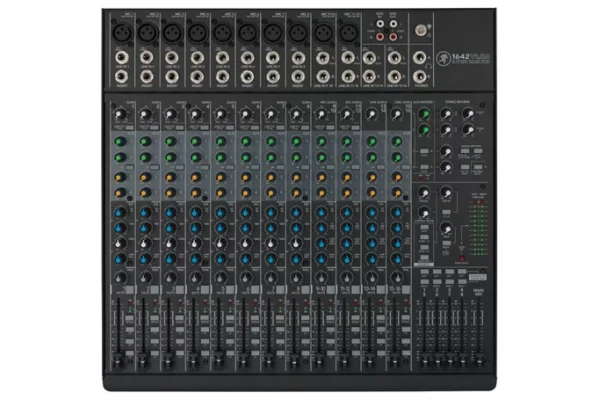

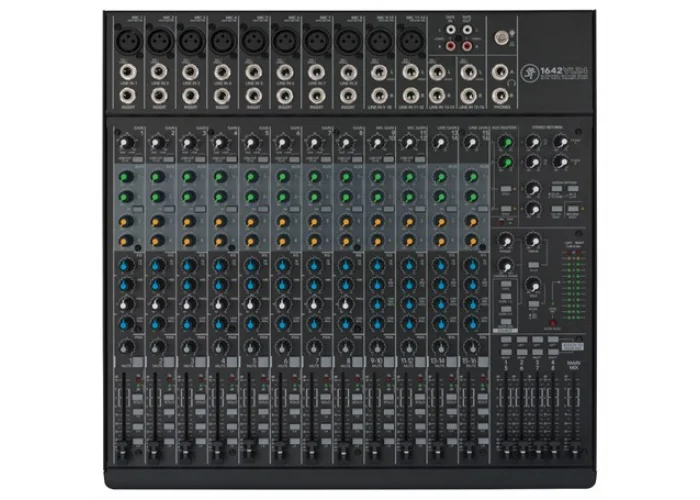

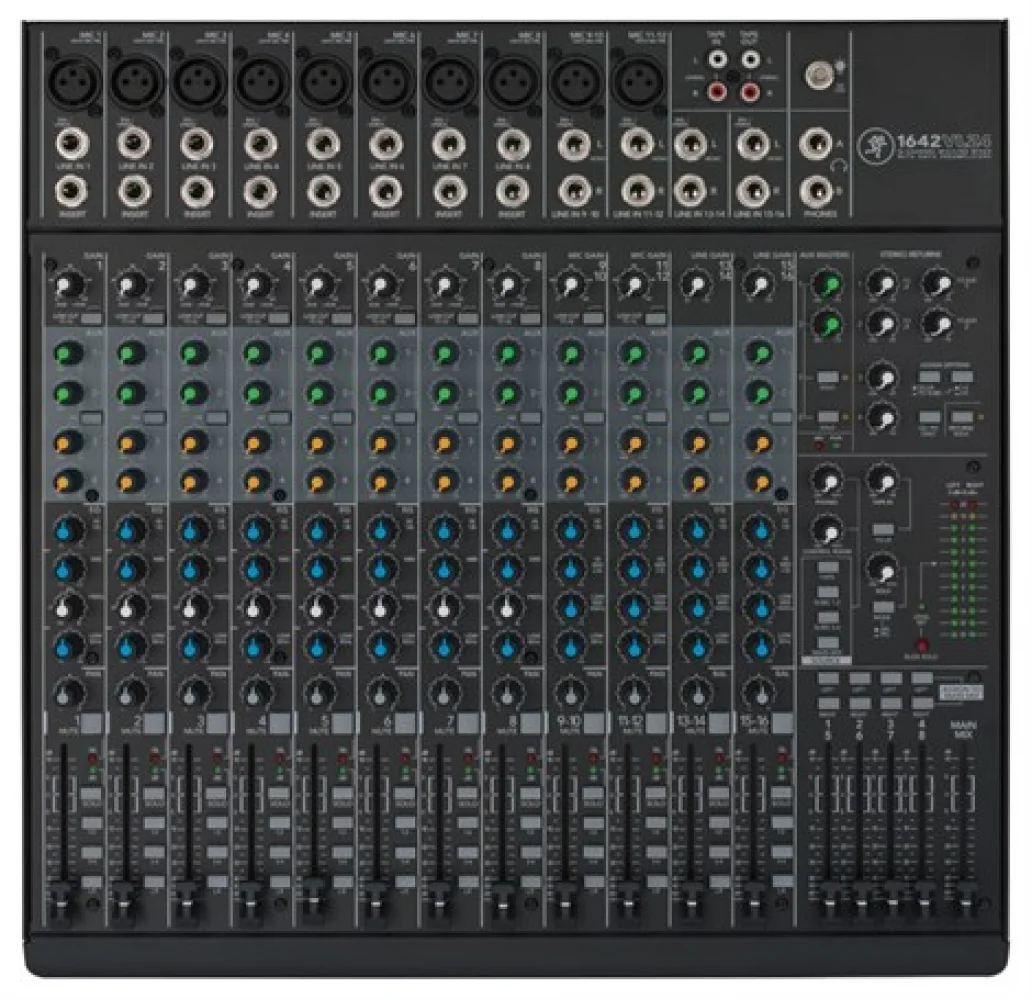

Mackie1642VLZ4 16-Channel 4-Bus Compact Mixer
The Mackie 1642VLZ4 16-Channel 4-Bus Compact Mixer delivers the proven performance of Onyx preamps in a compact 4-bus mixer design, suitable for bands, clubs, and more. From every input to every output, the mixer is designed to provide the highest headroom and lowest noise possible for maximum signal integrity.
The mixer is built-like-a-tank with a rugged solid-steel chassis and high-contrast controls for tactile control. With features like an expanded return section for no-hassle system integration and a dedicated control room section, the 1642VLZ4 16-Channel 4-Bus Compact Mixer is the go-to mixer choice for any application that demands flexibility and professional performance.
- 16-Channel mixer featuring high-headroom, low-noise design
- 10 Boutique-Quality Onyx Microphone Preamps:
-
- Wide 60 dB gain range
128.5 dB dynamic range
+22 dBu line input handling
Extended frequency response
- Distortion under 0.0007% (20 Hz to 50 kHz)
- Improved RF rejection, suitable for broadcast applications
- Phantom power for condenser microphones
- 16 High-headroom line inputs with +4 / -10 operation control
- 3-Band EQ (80 Hz, 2.5 and 12 kHz)
- 18 dB/octave 75 Hz low-cut filter on microphone input channels
- Four AUX sends, level, pan and PFL solo on each channel
- Four stereo returns for connecting FX processor or other stereo source
- 60mm long-wearing log-taper faders
-
Noise | Main Mix Noise: Main Mix Fader @ Unity, Channel Faders Down: -86.5 dBu (92 dB signal-to-noise ratio, ref +4 dBu) Main Mix Fader @ Unity, Channel Faders @ Unity: -86 dBu (20 Hz to 20 kHz bandwidth, 1/4" main out, channel gains at unity, channel EQs flat, all channels assigned to main mix, odd channels panned left, even channels panned right) |
Total Harmonic Distortion (THD) | Microphone In to Insert Send: <0.0007% (1 kHz @ 35 dB gain, 20 Hz to 20 kHz bandwidth) |
Crosstalk / Attenuation | Channel Mute Switch Engaged & Channel Gain Knob Down: -82 dBu (1 kHz relative to 0 dBu, 20 Hz to 20 kHz bandwidth, line in, 1/4" main out, gain @ unity) |
Frequency Response | Microphone Input to Main Output (Gain @ Unity): +0, -1 dB, 20 Hz to 50 kHz +0, -3 dB, <10 Hz to >100 kHz |
Equivalent Input Noise | 150 Ω Termination: -128.5 dBu, 20 Hz to 20 kHz Microphone input to insert send out, maximum gain |
Common Mode Rejection Ratio | Better than -70 dB @ 1 kHz |
Maximum Level | Microphone In: +22 dBu All Other Inputs: +22 dBu Main Mix TRS Out & XLR Out: +28 dBu All Other Outputs: +22 dBu |
Impedance | Microphone In: 2.5 kΩ Channel Insert Return: 2.5 kΩ All Other Inputs: 10 kΩ or greater Tape Out: 1.1 kΩ All Other Outputs: 120 Ω |
Equalizer | 3-Band EQ (Channel 1 to 8): High Shelving: ±15 dB @ 12 kHz Mid Peaking: ±15 dB sweep 100 Hz to 8 kHz Low Shelving: ±15 dB @ 80 Hz Low Cut Filter: 18 dB/octave, -3 dB @ 75 Hz
4-Band EQ (Channel 9 to 16): High Shelving: ±15 dB @ 12 kHz Hi Mid Peaking: ±15 dB @ 2.5 kHz Low Mid Peaking: ±15 dB @ 400 Hz Low Shelving: ±15 dB @ 80 Hz Low Cut Filter: 18 dB/octave, -3 dB @ 75 Hz |
Power Consumption | 50 W, 100 to 120 VAC/ 200 to 240 VAC, 50 to 60 Hz |
Operating Temperature | 32 to 104°F (0 to 40°C) |
Fuse Rating | 100 to 120V: 1 A slo blo, 5 x 20 mm 220 to 240V: 0.5 A slo blo, 5 x 20 mm |
Dimensions (H x W x D) | 16.7 x 16.6 x 5.2" (425.0 x 421.0 x 131.0 mm) |
Weight | 18.2 lb (8.3 kg) |
-
