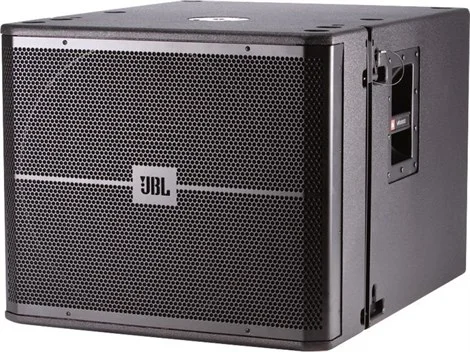

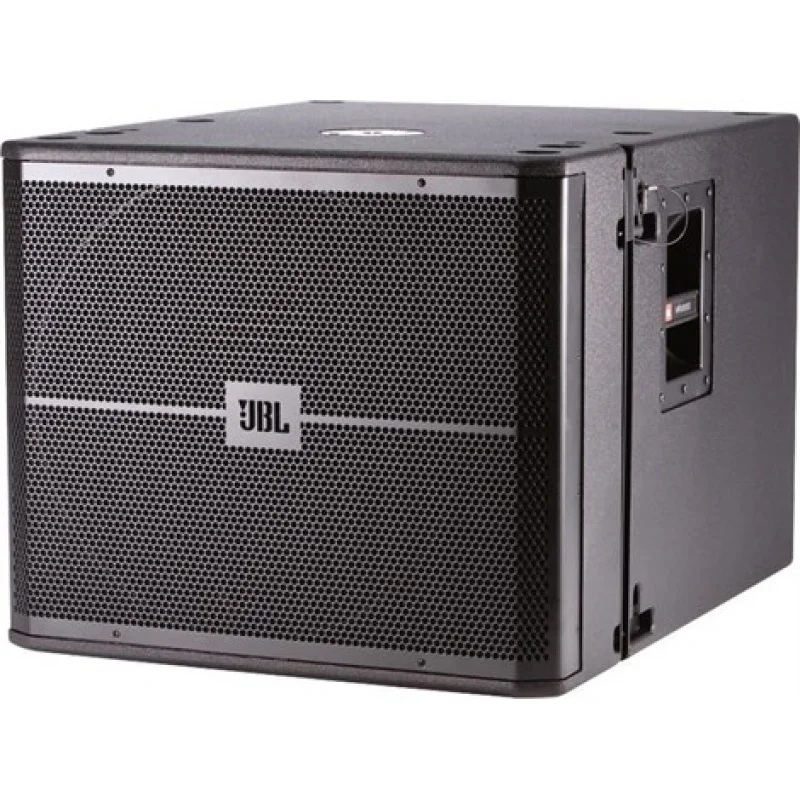

JBL VRX918SP 18" Aktif Line Array Subwoofer
The VRX918SP is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure. The VRX918SP was designed specifically for use in arrays with the VRX932LAP Line Array speaker and VRX-AF Array Frame. In addition it may also be used in arrays consisting entirely of VRX918SP subwoofers.
- Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1500 Watts of peak Power. DSP based resident input module provides system optimization, EQ and crossover functionality.
- 18 inch, 2268FF dual voice coil, neodymium magnet Differential Drive® woofer for high-power capacity and
light weight. - Integral rigging hardware for simple connection of enclosures and optional array frame.
- 20 mm threaded pole socket for solid, secure satellite speaker mounting.
- Large port area for reduced distortion.
| | Power Rating | 1500 Watts Peak
LF: Dual-Bridged Technology™, Class D |
| | Frequency Range | 31 Hz – 220 Hz |
| | Dimensions
(H x W x D) | 508 mm x 597 mm x 749 mm
(20.0 in x 23.5 in x 29.5 in) |
| | Frequency Response | 34 Hz – 220 Hz |
| | Maximum Peak Output | 126 dB SPL at 1m |
| | Bandpass Nominal Impedance | LF: 2 x 2 ohms |
| | LF Driver | 1 x JBL 2268FF 457 mm (18 in) dual voice coil
Differential Drive® woofer with neodymium-magnet |
| | Audio Input Connector | XLR with loop through |
| | User Controls | Input Attenuator (0-16 dB)
Selectable 80 Hz or 120 Hz Low Pass
80 Hz High-Pass enable/disable for XLR loop thru. |
| | Signal Processing | DSP based, resident in Input Module |
| | System Management | DSP based limiters for mechanical and thermal protection |
| | AC Power Operating Range | 90-132 VAC or 216-264 VAC, 50/60Hz |
| | AC Line Voltage | User selectable: 120V/240V (-15%, +10%) |
| | AC Input Connector | Neutrik PowerCon (NAC 3MPA) |
| | AC Loop Through Connector | Neutrik PowerCon (NAC 3MPB) |
| | AC Current Requirements | 6A per system at 120V, 3A per system at 240V |
| | Enclosure | 18 mm birch plywood. |
| | Suspension / Mounting | Optional VRX-AF line-array frame kit or 10 mm forged eyebolts |
| | Finish | Black DuraFlex™ finish |
| | Grille | Powder coated, black, 16-gauge perforated steel with
acoustically transparent foam |
| | Net Weight | 38.5 kg (85 lb) |
| | Optional Accessories | VRX-AF array frame
SRX718S-CVR: Pull-over padded cover (works with WK-4S)
SS4-BK adjustable satellite speaker pole WK-4S Caster kit
|
