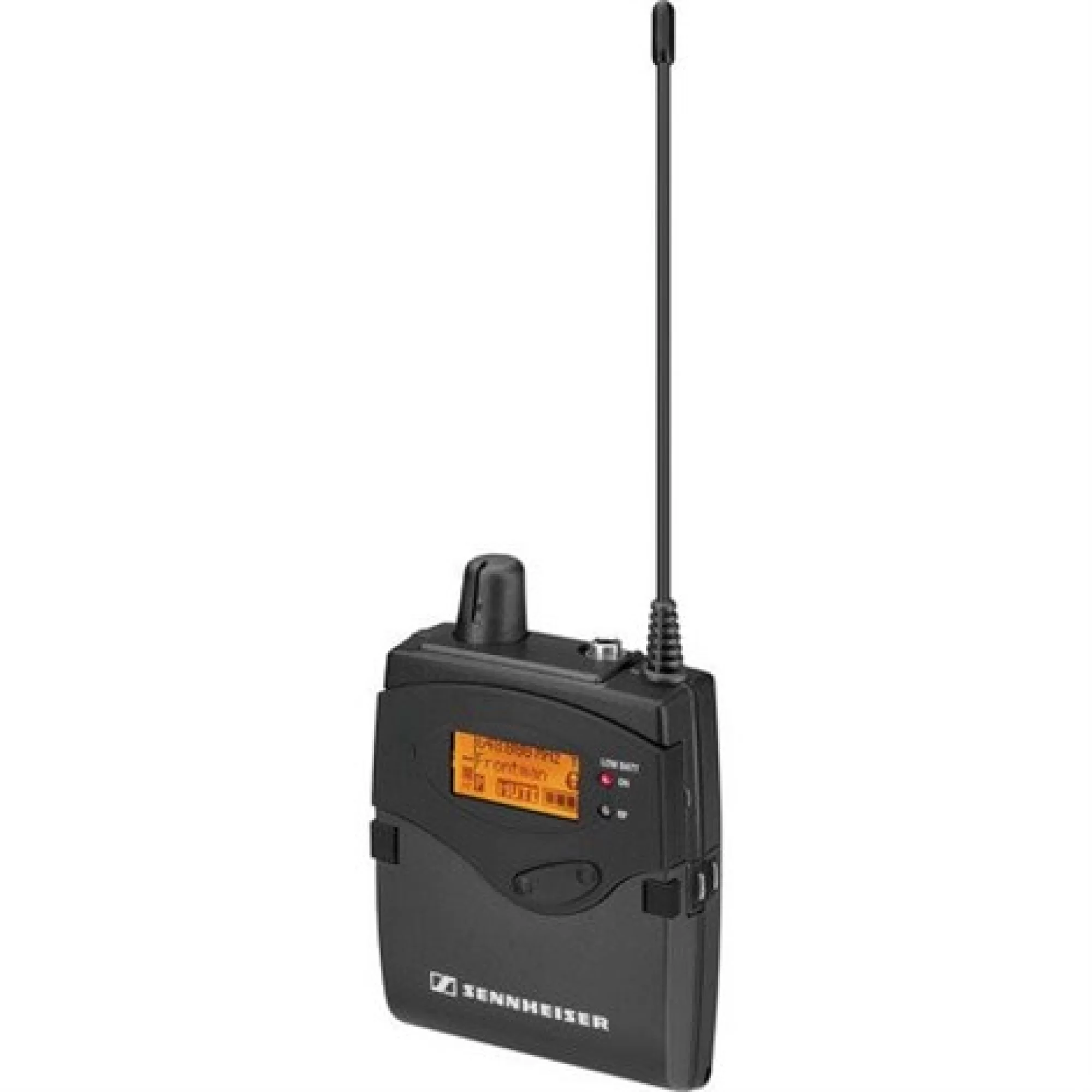

Sennheiser EK 2000-IEM Overview
The Sennheiser EK 2000-IEM Diversity Receiver is intended for use with their monitoring systems and is completely compatible with any of the Sennheiser SK series transmitters. Together the transmitter and receiver provide reliable audio monitoring during stage performances, broadcasts and more. The EK 2000-IEM features adaptive diversity reception to reduce drop outs, includes the IE 4 ear phone, features 6 banks of up to 32 tunable channels and runs on 2 1.5V AA batteries.
- Sturdy all-metal housing
- Up to 3000 frequencies in up to 75 MHz switching bandwidth
- 20 fixed frequency banks with up to 32 compatible presets
- 6 banks with up to 32 tunable channels
- Adaptive diversity technology for high reliability
- Pilot tone squelch can be set in 2 dB steps for interference-free reception
- Frequency scan feature searches for available reception frequencies
- Wireless synchronization of receiver parameters from transmitter
- User-friendly menu interface with a backlit graphic display
- HDX compander for crystal clear sound
- Enhanced AF frequency response
- Backlit graphic display
- 4-stage battery status display
- Charging contacts for recharging BA2015
- Auto-lock feature to prevent settings from being changed accidentally
- Hi Boost, adjustable limiter, stereo/focus mode, selectable balance on receiver
- Wide range of accessories for virtually any use
Specifications
| Type of Receiver | FM, MPX-Stereo |
| RF Carrier Frequency Range | A / 516 - 558 MHz |
| Overall Frequency Response | 25Hz - 15kHz |
| Signal-to-Noise Ratio | > 90dB(A) |
| # Of Channels | max. 32 |
| Type of Output(s) | 1/8" (3.5mm) Mini |
| Power Requirements | 1.5V AA Alkaline Batteries x2 (4 - 6 hours) |
| Display | LCD |
| Dimensions (WxHxD) | 3.22 x 2.52 x 0.94" (82 x 64 x 24mm) |
| Weight | (200 g) |
