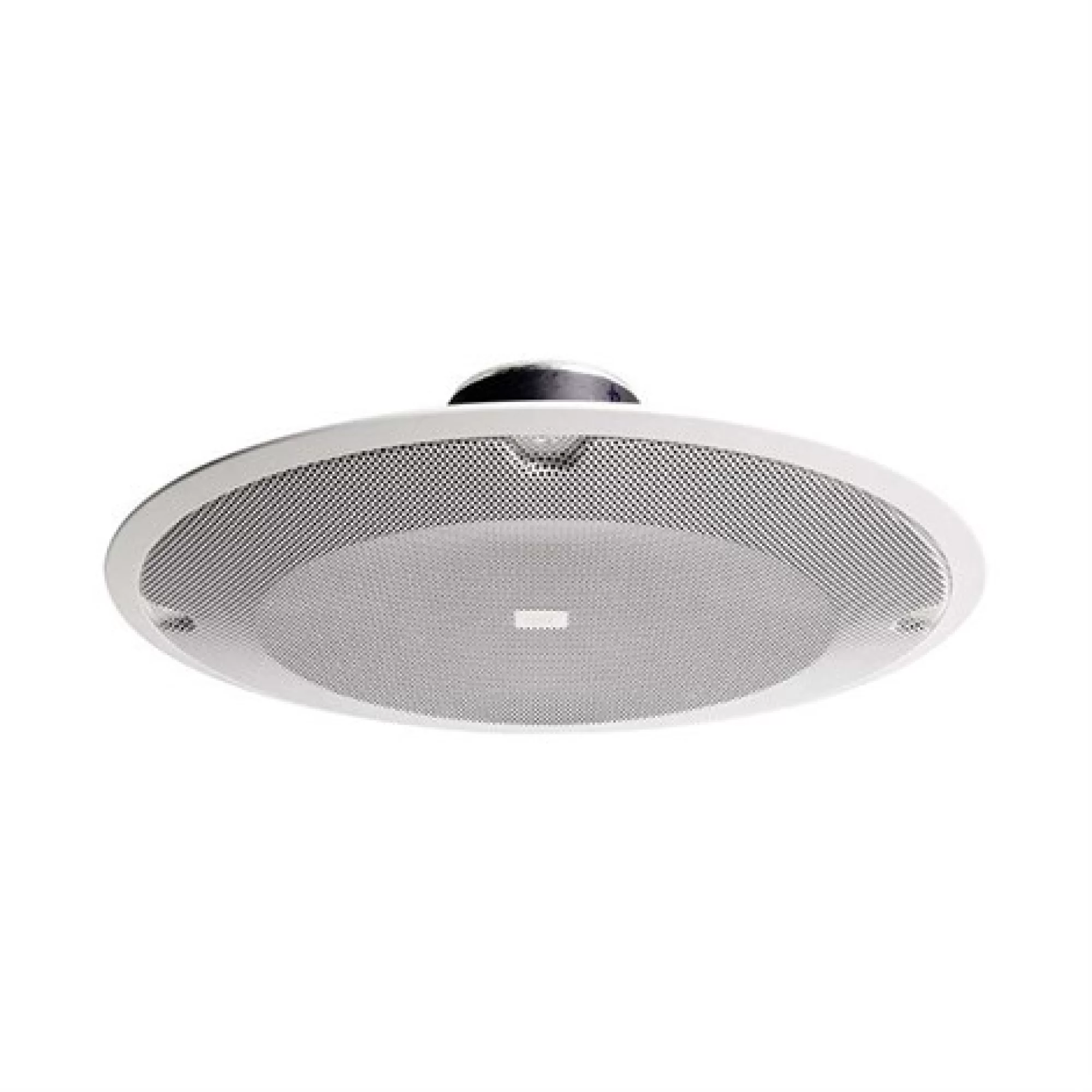

JBL 8124 4" Tavan Hoparlörü 6W/100V
The 8124 is a 4-inch, full-range, cost-effective loudspeaker for commercial applications. The 8124 features high-fidelity performance in an easy to install package. The system’s high sensitivity drivers deliver maximum sound levels using minimal amplifier power. With its contemporary grill design, 70V/100V taps and an open-back design, the 8100 series brings elegance and performance to basic commercial sound systems, or any application not requiring a backcan for installation.
FEATURES
- Clear, High-Fidelity Performance
- Dog-ears for easy Blind Mount Installations
- High Sensitivity (93 dB, 1W, 1m) for Maximum Power Efficiency
- 6W Transformer for use of 70V / 100V Distributed Lines
SPECIFICATIONS
| | Component | 4 in (100 mm), Full-range Driver |
| | Frequency Range | 60 Hz – 18 kHz |
| | Sensitivity | 93 dB (1 kHz – 8 kHz), 1W, 1M |
| | Coverage | 130° conical |
| | 70V/100V Taps | 6W, 3W, 1.5W (0.75W at 70V only) |
| | Termination | Bare wires |
| | Dimensions
(Diameter x Depth) | 8.1 in (206mm) x 3.5 in (89mm) |
| | Weight | 2.5lb (1.2kg) |
| | Included Accessories | Sculpted Grille |
| | Optional Accessories | MTC-8124C C-ring, MTC- Rail tile rails |
