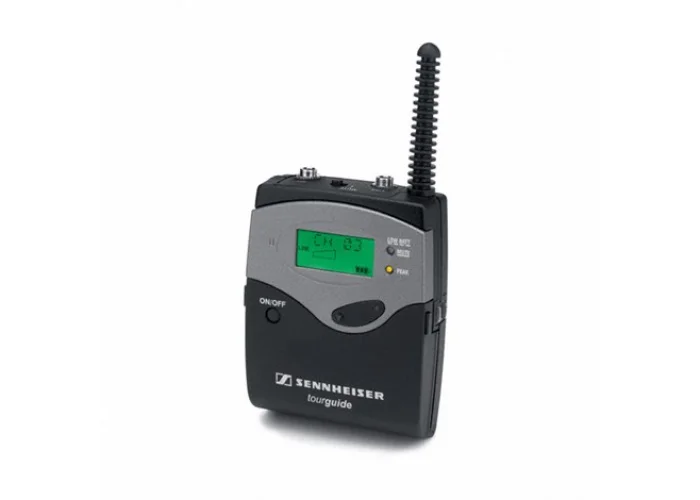

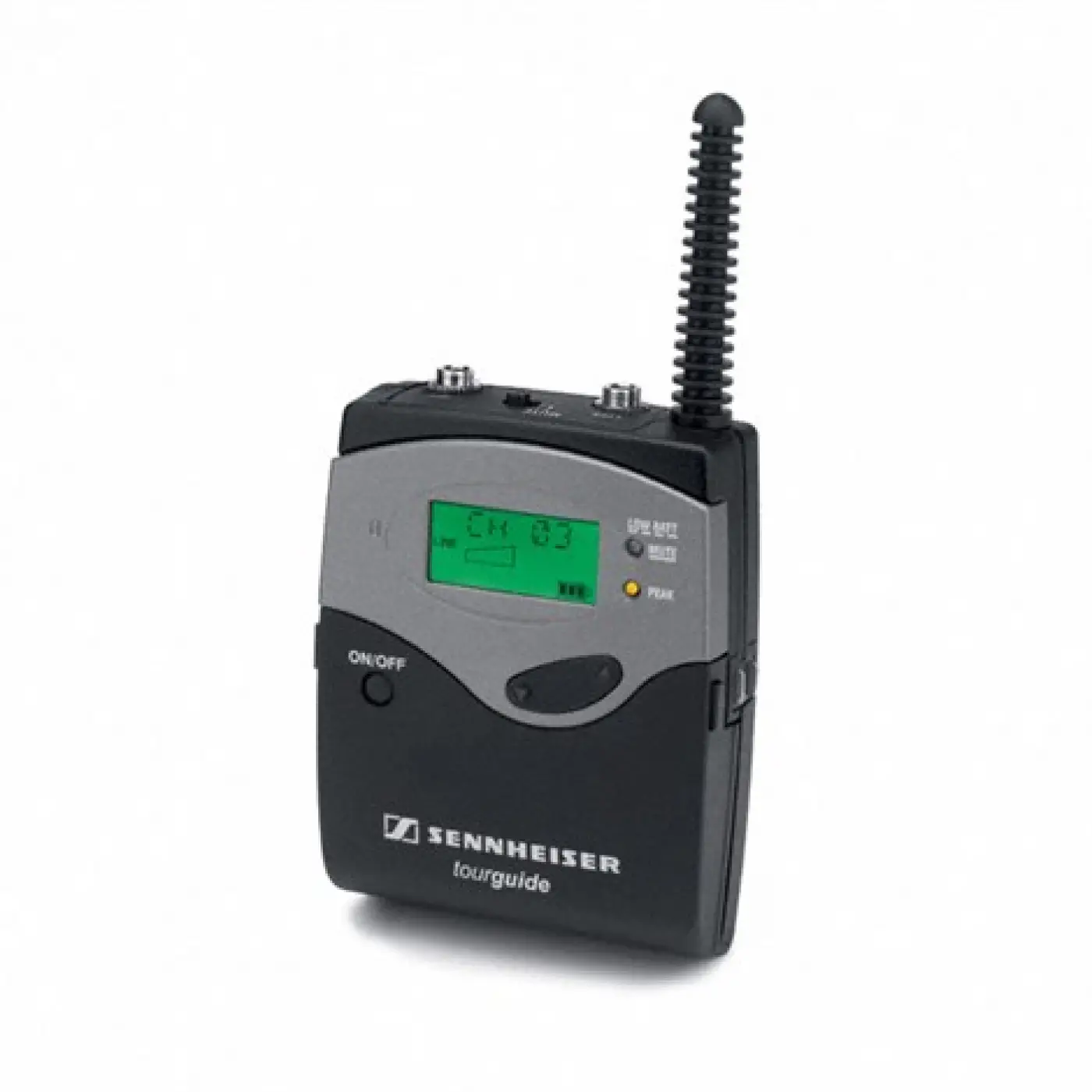

The TourGuide transmitter SK 2020-D will allow you to deliver a highly professional guided tour. Combining the bodypack transmitter with an headworn or clip-on microphone, will give you total freedom of movement during your tour. You will have both hands free to describe an object, make a presentation and express your point. The transmitter can be easily and comfortably operated, and is highly robust. The back-lit display confirms channel choice, the radio signal and the status of the battery. Two jacks for the microphone and line ensure variable utilization. For example, you will be able to transmit an external audio source such as music from a portable CD player via your transmitter and continue to talk or mute the microphone.
Features
6 channels in the license-free frequency range Europe: 863 - 865 MHz
Microphone input (3.5 mm screw-type jack socket) with adjustable sensitivity
Line input (3.5 mm screw-type jack socket) with adjustable sensitivity
Backlit display shows:
- audio level meter for microphone
- audio level meter for line input
Yellow LED: peak warning
Red LED: MUTE or LOW BATT warning
RF frequency range | 926 - 928 MHz | 500549 |
---|
Dimensions | 82 x 64 x 24 mm | |
---|
Frequency response (microphone) | 100 - 7000 Hz | |
---|
Weight | 160 g | |
---|
Operating temperature | 0 - 50 °C | |
---|
Operating time | Accupack:10 h (BA 2015) | |
---|
Modulation | 2 FSK | |
---|
Power supply | BA 2015 / 2,4V; 2x AA 1,5V | |
---|
Input voltage range | max. 650 mVrms max. 2 Vrms (at -24 dB line sensitivity) | |
---|
max. 2 Vrms max. 2 Vrms (at -24 dB line sensitivity) |
