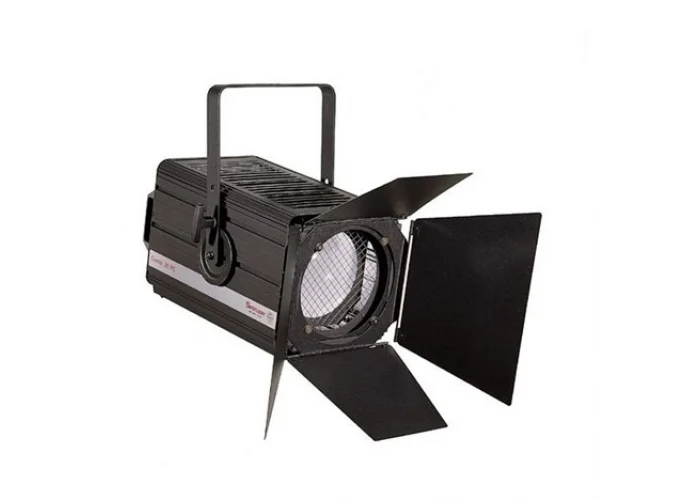

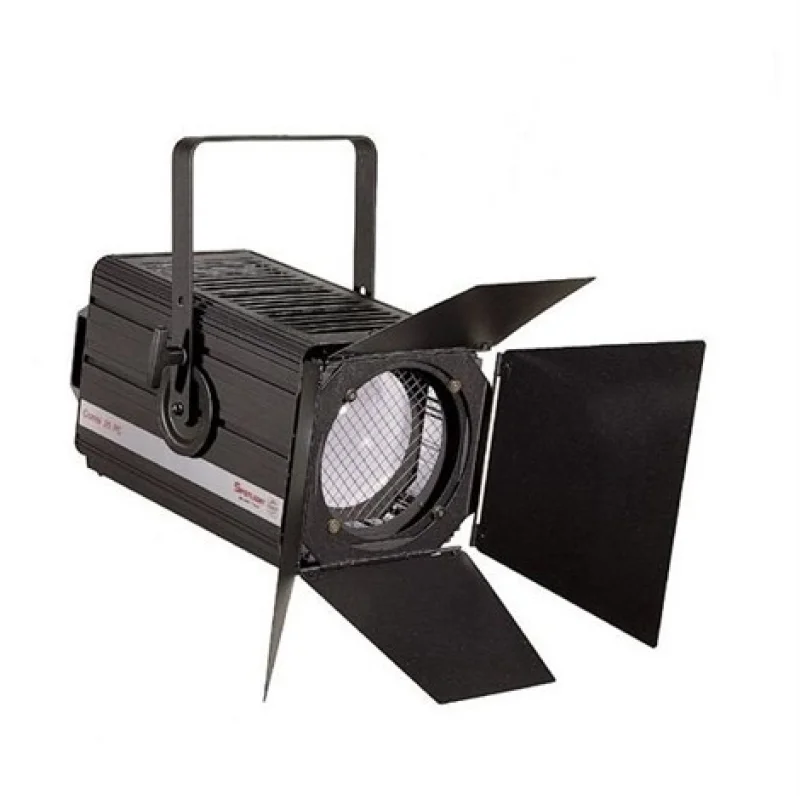

A Plano-Convex luminaire with a defined beam - Variable from 4 to 66° 200mm Ø borosilicate lens - Barndoors optional - Power: 2000/2500W
Electrical
• Standard 230V, 50/60Hz power supply (others available on request)
• Lamp-holder type G22 (optional GY16)
• 2m power supply cable (plug available on request)
• Strain relief cable clamp entry into light housing
Safety
• Safety mesh
• Filter-frame locking system
• Compliance to CE EN 60598-2-17 standards
Optical
• Spherical reflector in 99.99% polished and treated aluminium:
150mm diameter
• 200mm diameter borosilicate lens mounted onto extended holders to allow ventilation
Mechanical
• Extruded aluminium and steel housing
• Black Epoxy Resin paint
• Labyrinth ventilation to avoid light spillage
Operational
• Access for lamp maintenance via removable top cover
• Yoke with 10mm diameter hole, adjustable height, reversible and
sliding into extruded rails to balance accessories and for use in any position
• Heat insulated knobs and handles
• Lamp-holder mounted onto an easily adjustable plate for 1000, 2000 and 2500W lamps
• Focus adjustment by an endless screw mechanism operated by rear knob
Size in mm
Light Output: Spot 4°
Light Output: Flood 66°
