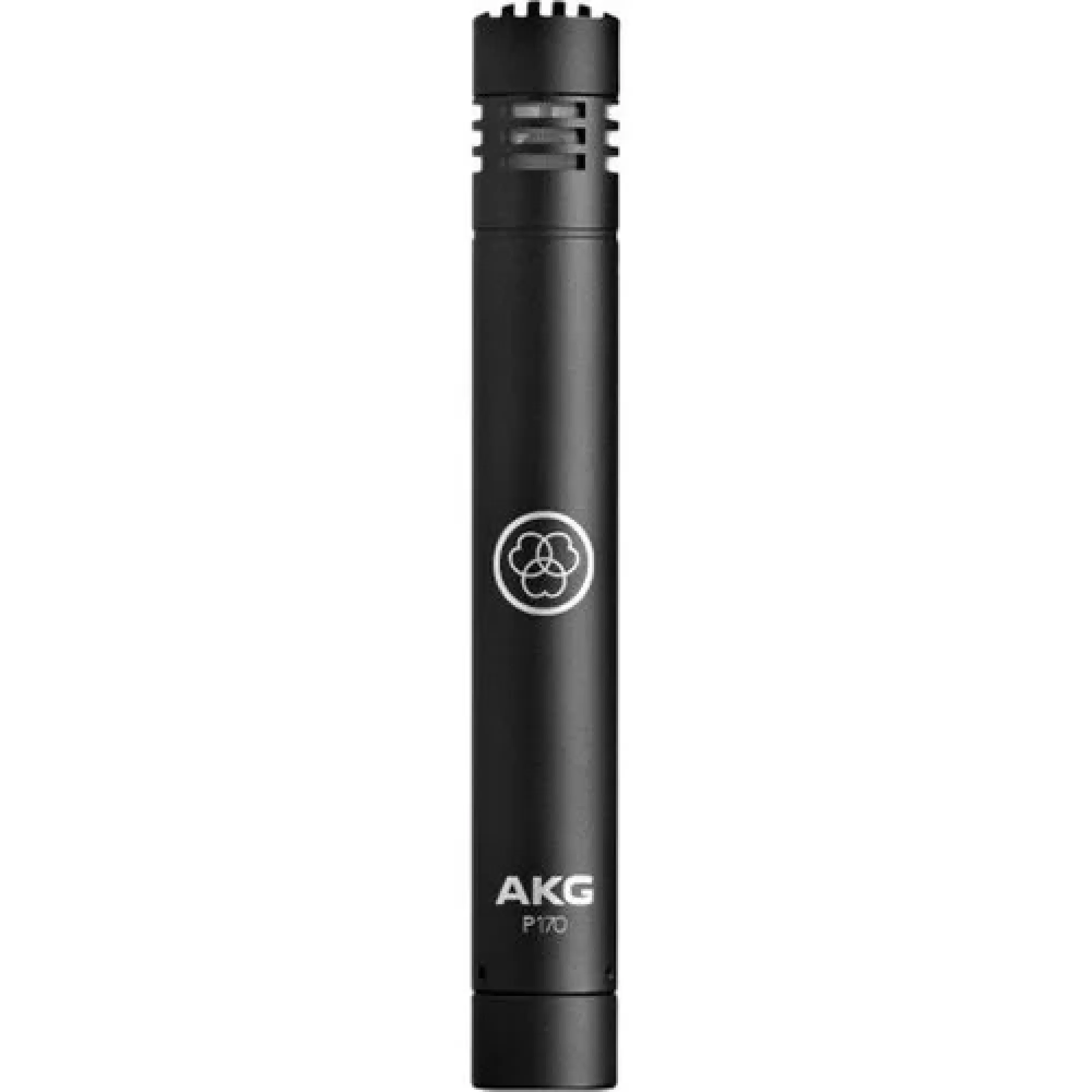

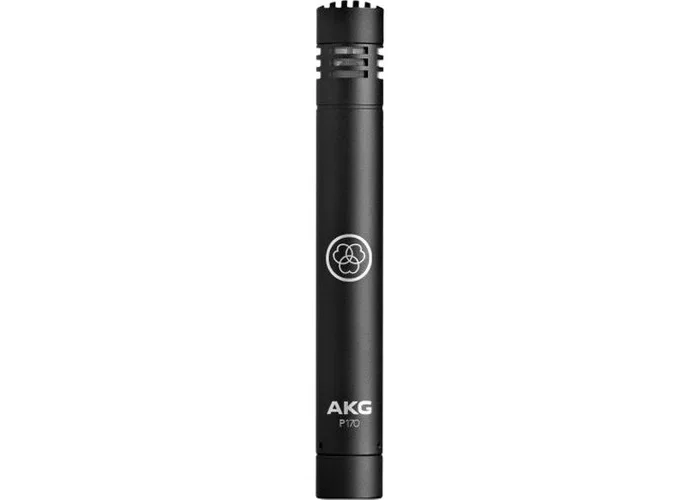

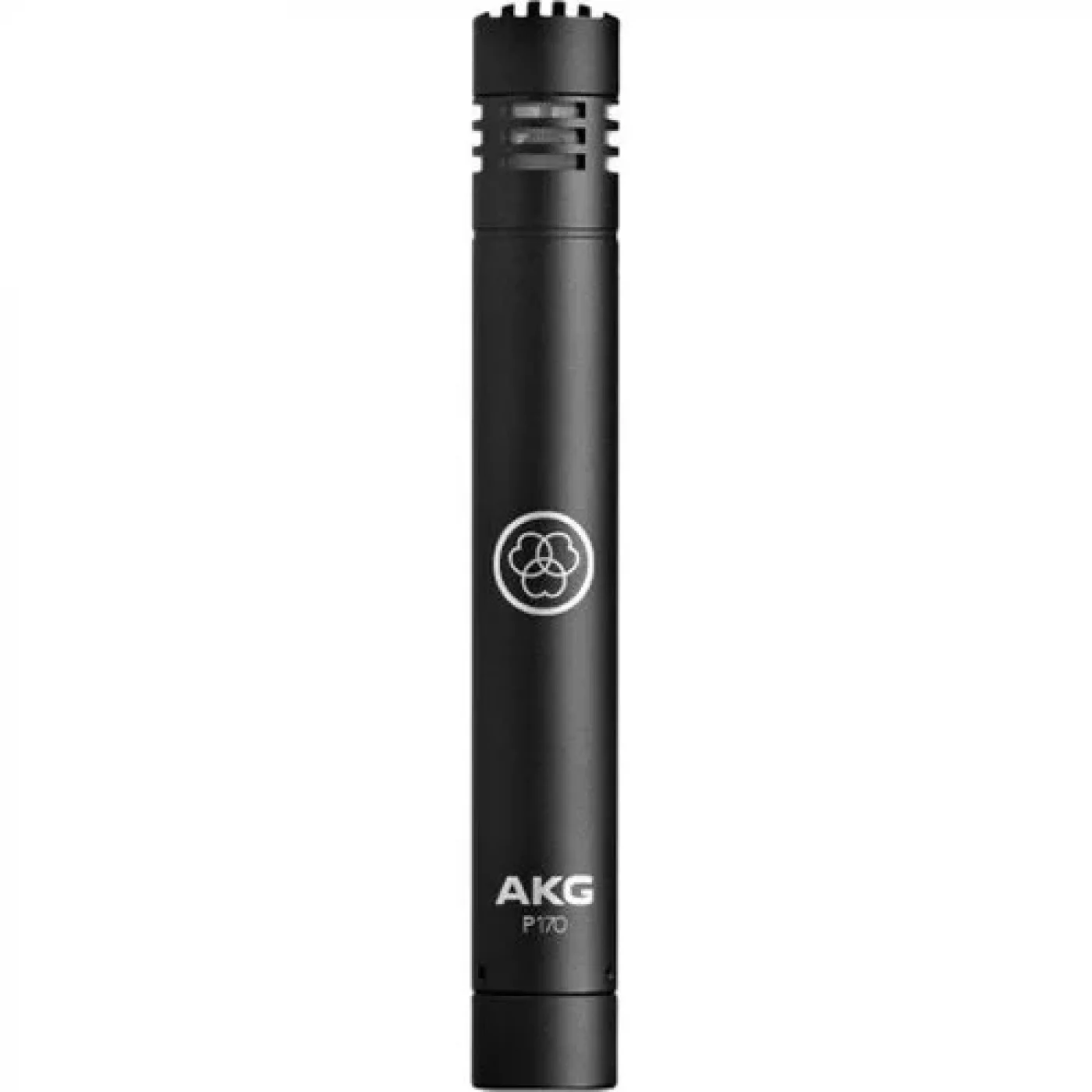

The Perception P170 is a small-diaphragm condenser microphone for recording of overheads, percussions, acoustic guitars and strings. Its lightweight 1/2-inch true condenser transducer diaphragm delivers outstanding clarity and transient response. A switchable attenuation pad enables the Perception 170 to be used close to sound sources delivering up to 155dB SPL.
The Perception P170 utilizes the experience of sound engineers from around the world and is considered an affordable alternative to the legendary AKG C451 B. Incorporated in a heavy-duty all-metal chassis, it delivers the legendary AKG sound to project studios and to every stage.
| General | | Audio Frequency bandwidth | 20 to 20000 Hz | | Sensitivity | 12 mV/Pa | | Equivalent Noise Level | 21 dB-A | | Signal to Noise | 73 dB-A | | Bass Cut Filter | 300 Hz | | Electrical Impedance | 200 Ohms | | Recommended Load Impedance | 1000 Ohms |
|
| Polar Patterns | | Polar Pattern | cardioid | | Polar Pattern 1 | Cardiod | | Polar Pattern Picture 1 | 9932 | | Number | 1 |
|
| Powering Interface | | Voltage | 44 to 52 V | | Current | 2 mA |
|
| Audio Output | | Type | Symmetrisch XLR | | Gender | Männlich | | Contacts | 3 Kontakte |
|
| Design | |
| Dimensions / Weight | | Height | 160 mm | | Diameter | 22 mm | | Net Weight | 130 g |
|
Mikrofon küçük diaframlı kondenser özellikte olacak. Overhead,perküsyon ve kayıt için özel üretim olacaktır.Ses frekans bandgenişliği 20-20000hz olacaktır.Hassasiyet derecesi 12 mV/Pa olacaktır.Sinyal gürültü oranı 73db-ABass cut filter 300hzElektrik empedansı 200 ohmYüklü empedansı 1000 ohm olacaktır.Polar pattern Kardioid Maksimum ağırlık 130g
