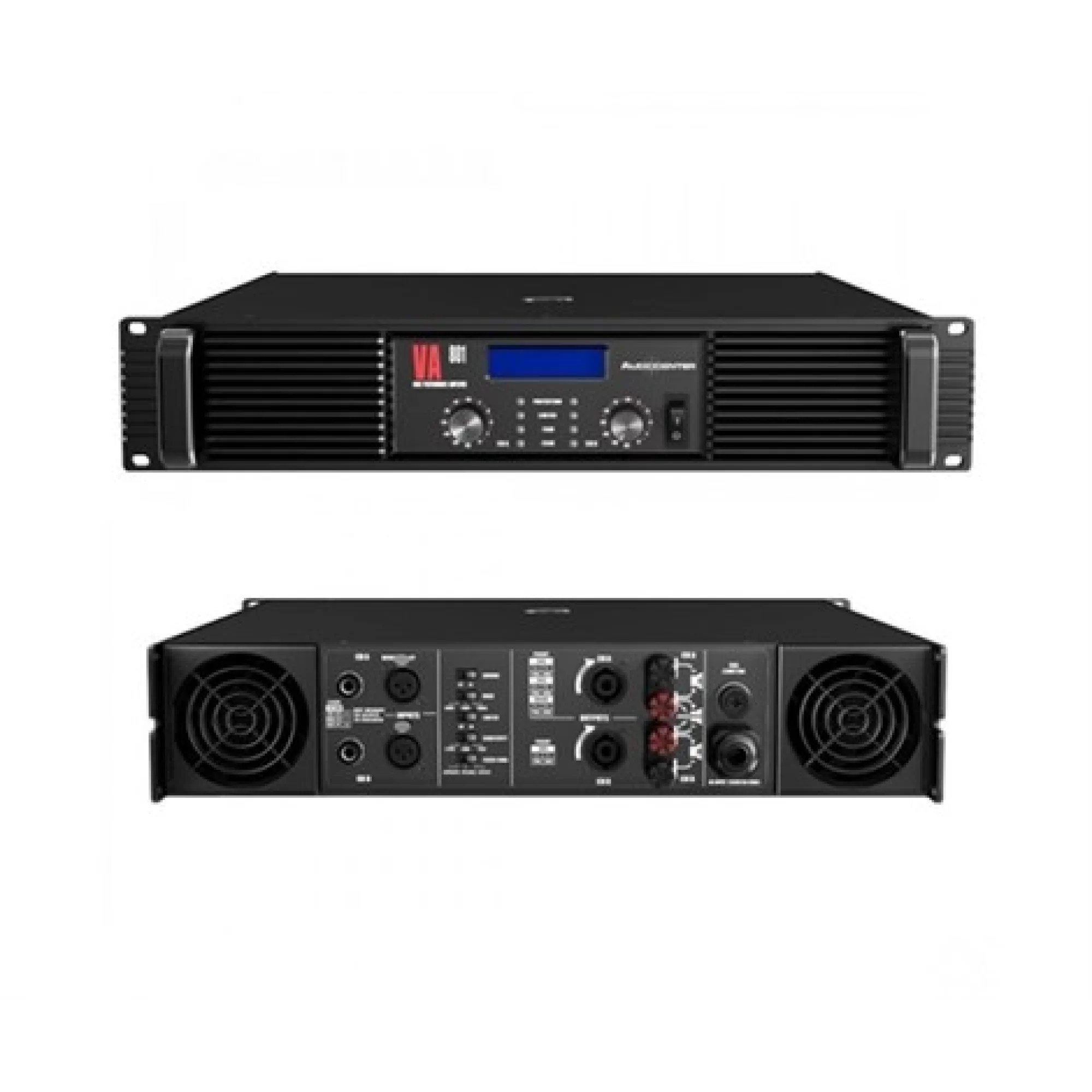

Name: Audiocenter VA 801 Power Amplifier 2x1100W 4-ohm
Brand: Audiocenter
SKU: Audiocenter VA 801

Audiocenter VA 801 Power Amplifier 2x1100W 4-ohm

Barkod: 2242005995303

Marka: Audiocenter

Kategori: Power Amplifier

Ürün Grubu: Power Amplifier

Kanal Sayısı: 2 Kanal

Kanal Gücü /4 ohm: <1500W

%28indirim

46.375 TL

KARGO BEDAVA

Hızlı Gönderi

Audiocenter VA-801

Specifications		VA401	VA601	VA801	VA1201
Maximum output powe	4Ωbridge	5600W	7700W	9100W	18900W
	8Ωbridge	4200W	5250W	7700W	12600W
	2Ωstereo	2×2800W	2×3920W	2×4550W	2×8750W
	4Ωstereo	2×2100W	2×2625W	2×3850W	2×6300W
	8Ωstereo	2×1400W	2×1750W	2×2625W	2×4200W
Rated power (20~20kHz ≤0.1%THD)	4Ωbridge	1600W	2200W	2600W	5400W
	8Ωbridge	1200W	1500W	2200W	3600W
	2Ωstereo	2×800W	2×1120W	2×1300W	2×2500W
	4Ωstereo	2×600W	2×750W	2×1100W	2×1800W
	8Ωstereo	2×400W	2×500W	2×750W	2×1200W
A - Guard protection system	DC protection	√
	Short circuit protection	√
	Smart overheat management	√
	Overheat protection	√
	Input overload protection	√
	Output overload protection	√
	Soft startup protection	√
	Limiter protection	Up to 9V
Frequency response (1W 8Ω stereo)		20Hz～20KHz(±0.5dB)
Sensitivity (8Ω 1KHz)		0.775V/32dB/26dB	0.775V/36dB/32dB
Connectors	Input	jack & NEUTRIK male XLR
	Output	3×NEUTRIK Speakon 4P & Binding post
Filter capacitor capacity		10000μf/63V×4	10000μf/63V×8	10000μf/80V×8	6800μf/100V×12
Input impedance	Balanced	20KΩ
	Unbalanced	10KΩ
Crosstalk(20Hz-20KHz, Rated power 8Ω)		≥60dB
S/N ratio (Rated power 8Ω;A weighted)		≥103dB
Damping factor(1kHz&8Ω)		≥350			≥650
Intermodulation distortion (20Hz-20KHz,half power)		≤0.1%
Harmonic distortion (8Ω&20Hz-20KHz,half power)		≤0.1%
Phase response (1W & 8Ω,20Hz-20KHz)		20Hz+4°20KHz-12°			20Hz+5° 20KHz-20°
Slew rate		≥25V/μs
Output circuitry		CLASS AB		CLASS H+
Power consumption (Dual channel driven4Ω, 1/8RMS/230V)		3.1A	4.3A	3.4A	5.0A
Rack space		2U			3U
Cooling		Back to front venting, Mandatory cooling
Dimension(W×H×D)		483×88×456mm			483×132×506mm
Net weigh		18kg	20kg	21.5kg	40kg
