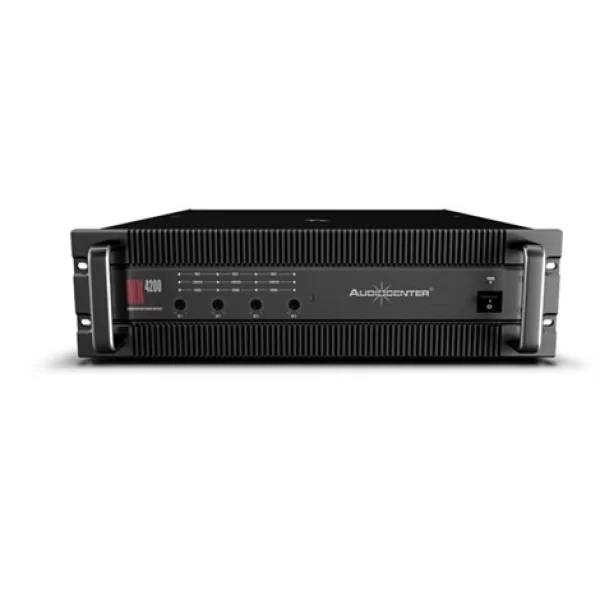

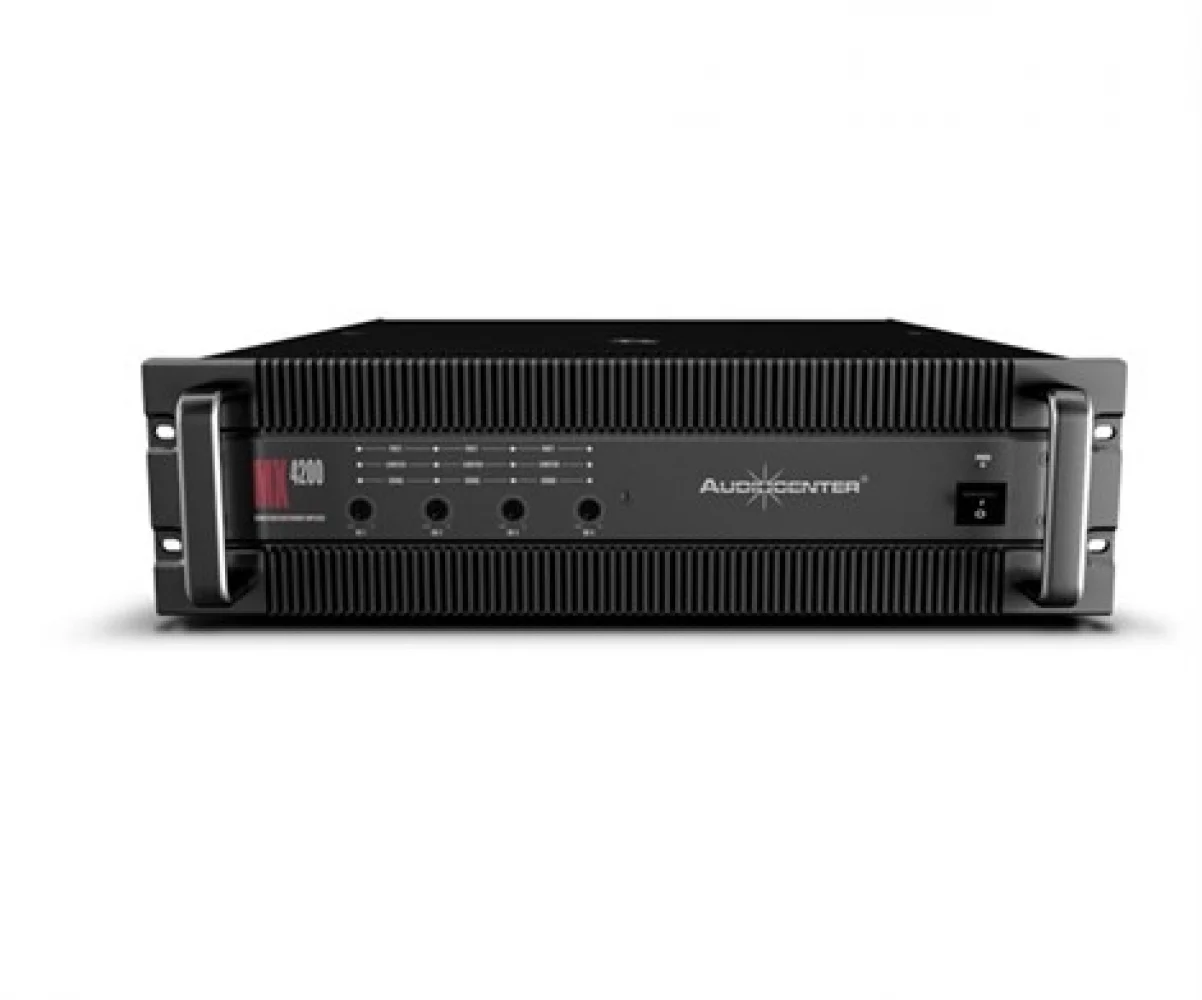

AUDIOCENTER electronic engineers and experienced purchasing team spend long time to work together to study, select and compare the raw materials from VIP suppliers. After countless tests, we find the best quality components for MX amplifiers without any compromise. This ensures Hi-Fi sound and high damping factor, suitable for multi-power output.
Main Applications
MX is very suitable to drive MAIN SPEAKERS at the small fixed installation market like multifunctional room, restaurant, supermarket, meeting room, etc.
Specifications
br> Rated power (20~20kHz =0.1%THD)
8 ohm bridge - 420W 4 ohm stereo - 4 x 210W
8 ohm stereo - 4 x 490W
Maximum Output Power -
8 ohm bridge - 4 ohm stereo - 4 x 735W
8 ohm stereo - 4 x 140W
-DC protection
-Short circuit protection
-Overheat protection
-Input overload protection
-Output overload protection
-Soft startup protection
-Limiter protection Up to 9V
Frequency response (1W 8O stereo) 20Hz~20KHz(±0.5dB)
Sensitivity (8O 1KHz) 1V
Connectors
Input Male XLR & Jack
Output PCB Connectors
Filter capacitor capacity 10000µf/80V×4
Input impedance
Balanced 20KO
Unbalanced 10KO
Crosstalk(20Hz-20KHz, Rated power 8O) less than 60dB
S/N ratio (Rated power 8O;A weighted) less than 100dB
Damping factor(1kHz&8O) less than 300dB
Intermodulation distortion (20Hz-20KHz,half power) less than 0.03%
Harmonic distortion (8O&20Hz-20KHz,half power) less than 0.03%
Phase response (1W & 8O,20Hz-20KHz) 20Hz+6°20KHz-23°
Slew rate =25V/µs
Output circuitry AB
Power consumption (Dual channel driven4O, 1/8RMS/230V) 2.3A
Rack space 3U
Cooling Two speed,Back to front venting
Dimension(W×H×D) 483×132×451mm
Net weight 19kg
