| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| Program power handling | 2 x 100 W | |||
| RMS/AES power handling | 2 x 50 W | |||
| Impedance | 8 Ω | |||
| Sensitivity (1W/1m) | 83 dB | |||
| Sound Pressure (Max. W/1m) | 103 dB | |||
| Frequency | Response (± 3 dB) | 45 Hz - 200 Hz | ||
| Range (-10 dB) | 32 Hz - 200 Hz | |||
| Crossover | Type | Passive built-in | ||
| Frequency | 200 Hz | |||

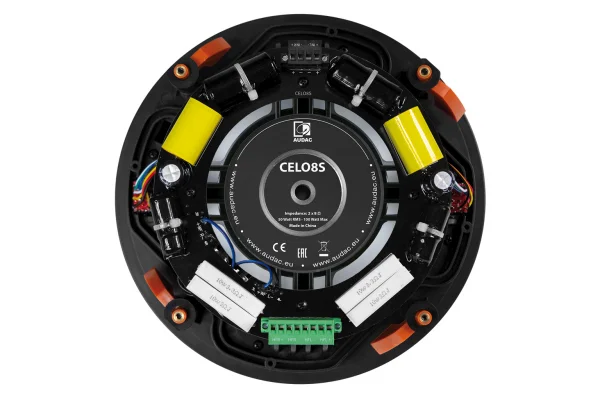

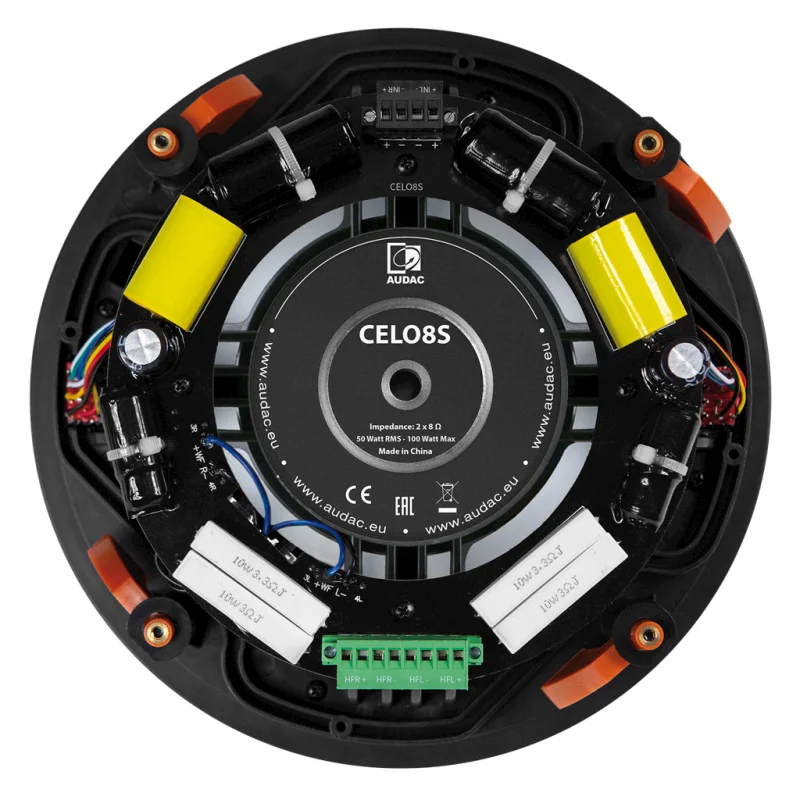

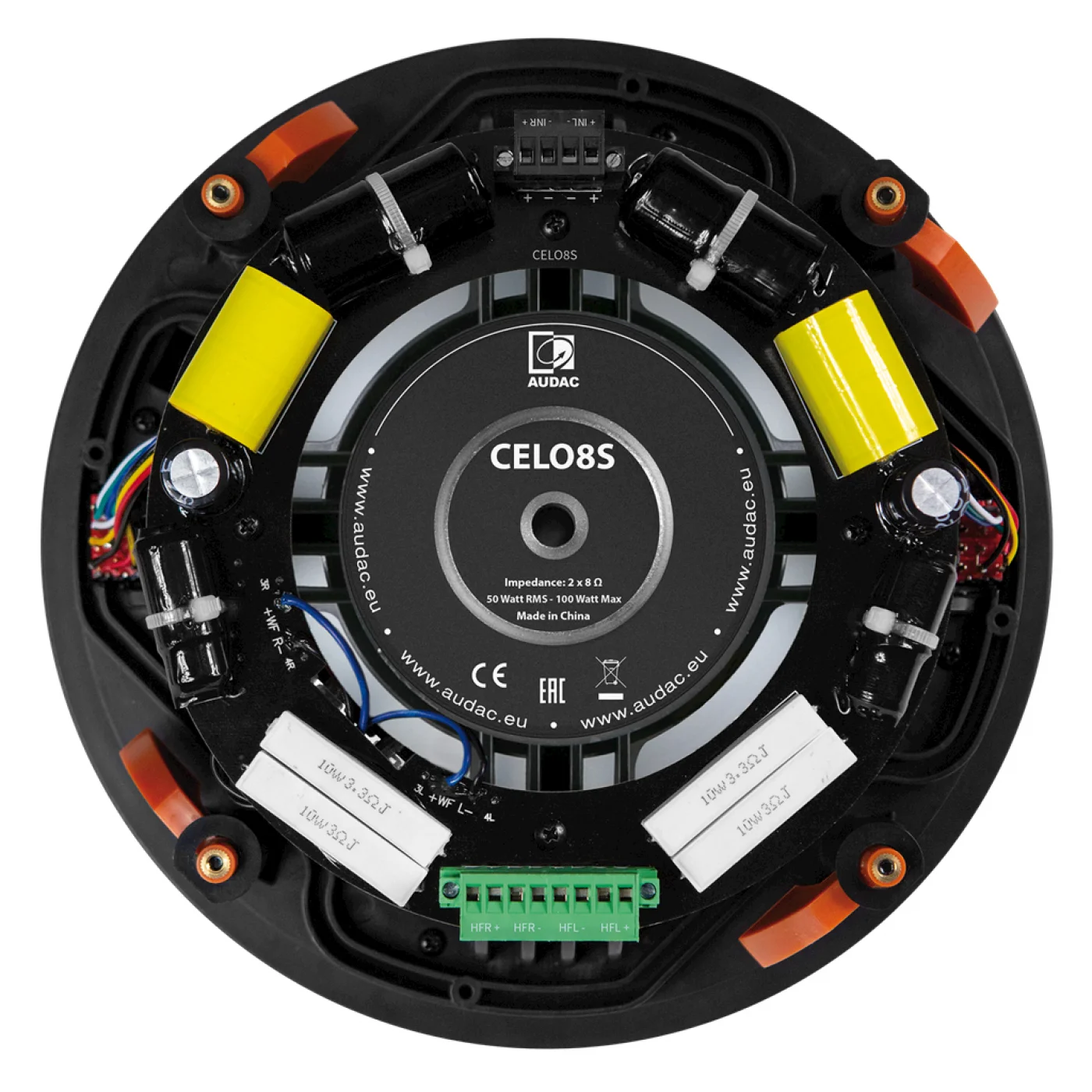

| Connectors | Input | 4-pin Euro Terminal Block (Pitch - 3.81 mm) | ||
| Output | 8-pin Euro Terminal Block (Pitch - 5.08 mm) | |||

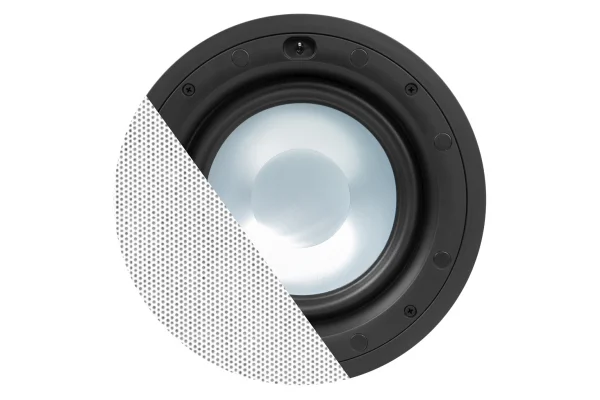

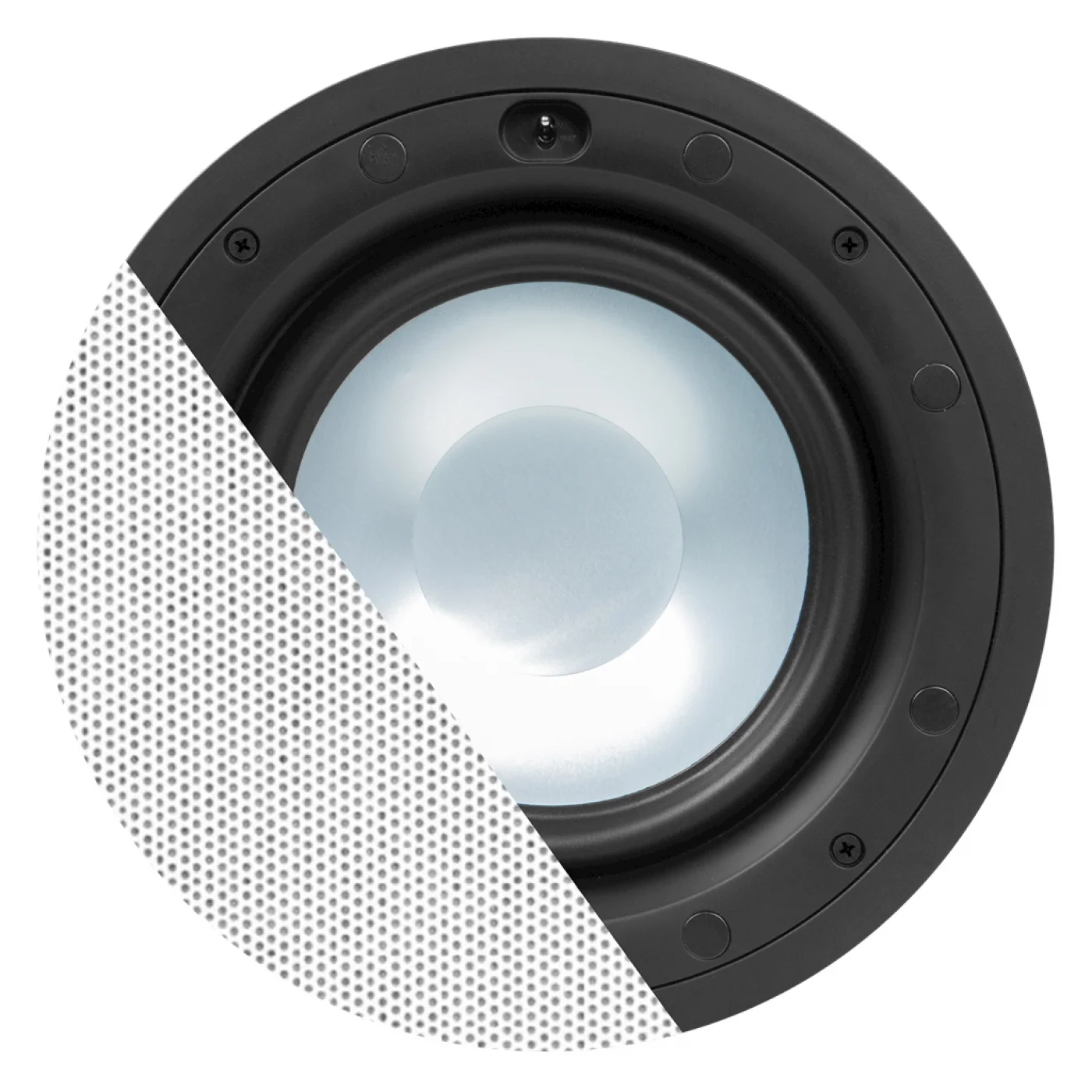

| Drivers | 8” Aluminium membrane | |||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Dimensions | 275 x 120 mm (Ø x D) | |||
| Weight | 2.75 kg | |||
| Construction | ABS | |||
| Front finish | Thin edged white grill (RAL9003) | |||
| Cut-out measurement | 250 mm (Ø) | |||
| Built-in depth | 117 mm | |||
| Mounting & handling | 4 Screw quick-fixing mechanism | |||
| Operating temperature | -20 °C ~ 60 °C | |||
| Colours | Black frame & white grill | |||
| Accessories | Included | GLC08/W - White grill (RAL9003) | ||
| Optional | GLC08/B - Black grill (RAL9005) | |||
| GLC08/P - Paintable grill | ||||
