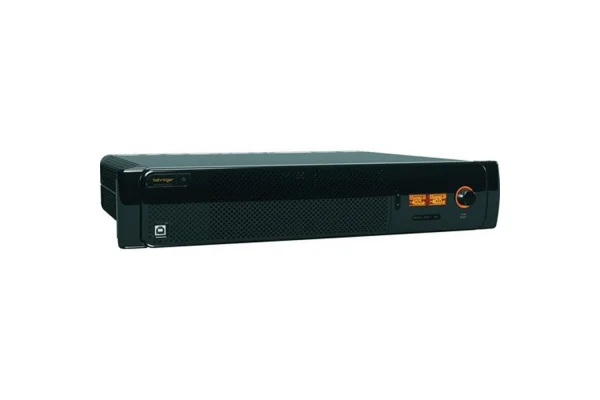

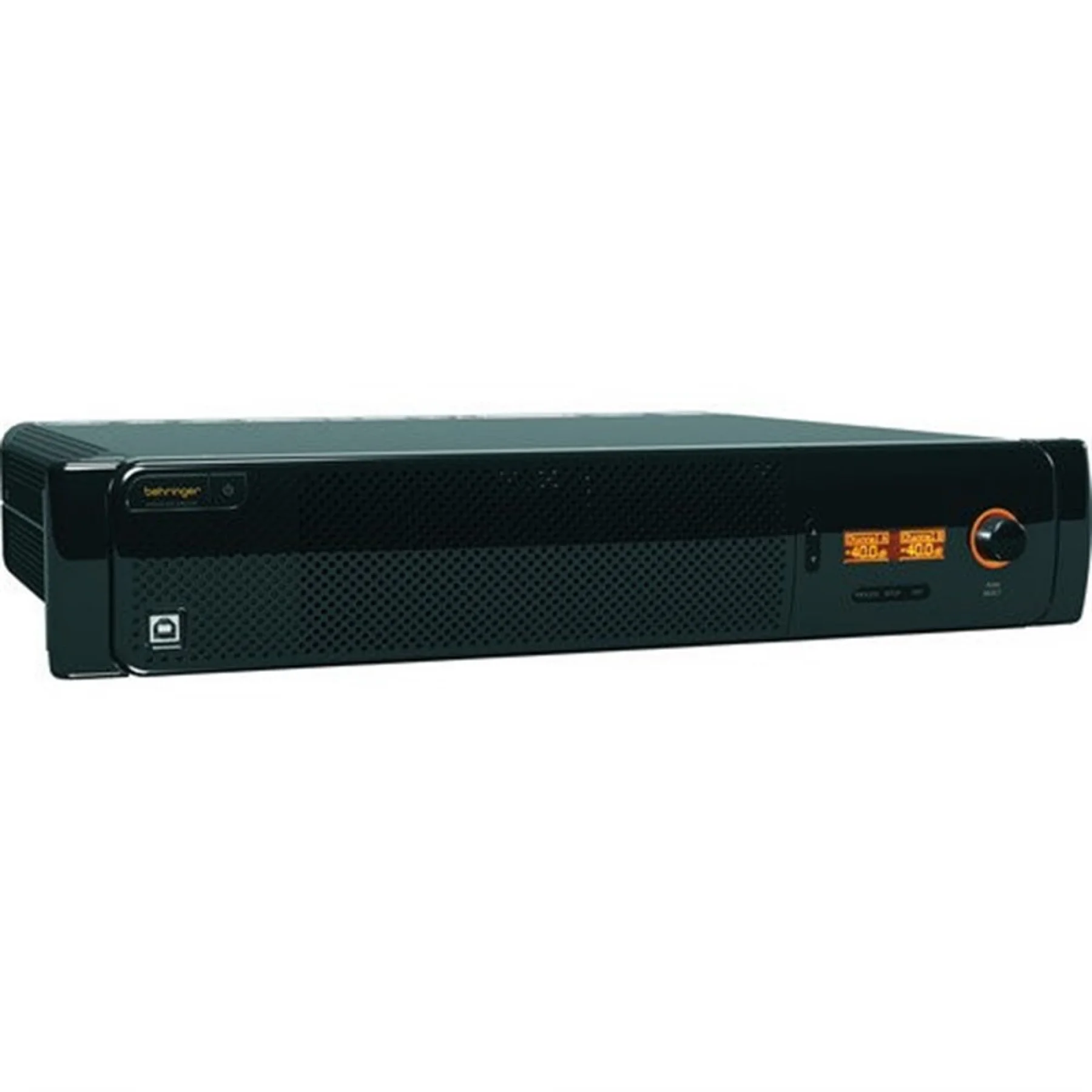

Behringer Eurocom AX6240 2x1300W

The Eurocom AX6240 Low Impedance Stereo Power Amplifier from Behringer is a dual channel rack mount power amplifier with a stereo output rating of 1300w at 4Ω, which offers digital control for a variety of applications including distributed music, paging systems, and other AV uses. The 24 bit, 96 kHz convertors provide high fidelity audio for the Eurocom AX6240 s digital signal processor, or DSP, which includes delay, crossover, and dynamics as well as an eight band parametric and two band dynamic EQ. Onboard DSP also includes Behringer s "Zero Attack" limiters, designed to protect connected speakers.

The AX6240 s settings can be controlled and saved remotely using your PC s Ethernet connection and Behringer s free Amp Remote software (available through their website).The unit can also be directly controlled with its front panel LCD screen.

Switch-Mode Power technology provides up to 73% power efficiency to reduce power consumption

Dual-channel power amplifier designed for continuous operation

Two transformerless, cool-running Class-H amplifiers drive low-impedance loads down to 2 Ω

The 24 bit/96 kHz DSP section features delay, crossover, EQ (8 parametric, 2 dynamic), dynamics processing and lockable security settings

Front panel LCD display enables setup and adjustment without use of a PC

Can be set up, controlled and monitored through standard Ethernet network or panel USB connector

Two line level inputs via 3-pin Euroblock or XLR/TRS combination connectors

Front panel VU metering, mute indication, system fault, over-current or overdrive indicators and illuminated master volume ring with clipping indication

Limiters on all output channels with independent DC and thermal overload protection automatically protects amplifier and speakers

Power Output	680 w per channel @ 8 Ω stereo @ peak, 1% THD, 1 kHz sine wave 1300 w per channel @ 4 Ω stereo @ peak, 1% THD, 1 kHz sine wave 2250 w per channel @ 2 Ω stereo @ peak, 1% THD, 1 kHz sine wave 2560 w per channel @ 8 Ω bridged @ peak, 1% THD, 1 kHz sine wave 4000 w per channel @ 4 Ω bridged @ peak, 1% THD, 1 kHz sine wave 550 w per channel @ 8 Ω stereo @ RMS, 1% THD, 1 kHz sine wave 900 w per channel @ 4 Ω stereo @ RMS, 1% THD, 1 kHz sine wave 1500 w per channel @ 2 Ω stereo @ RMS, 1% THD, 1 kHz sine wave 1850 w per channel @ 8 Ω bridged mono @ RMS, 1% THD, 1 kHz sine wave 2900 w per channel @ 4 Ω bridged mono @ RMS, 1% THD, 1 kHz sine wave
Inputs	2x 3-pin Euroblock 2x XLR/TRS combo
Outputs	2x Speakon 4x binding post
Gain	36 dB @ 8 Ω
Minimum Load Impedance	2 Ω
Frequency Response	20 Hz - 20 kHz, -1 dB @ 1 W, 1 kHz dBr into 8 Ω
Total Harmonic Distortion (THD)	< 0.25% @ 1 W, 1 kHz dBr into 8 Ω
Signal to Noise Ratio	87 dB @ input 2 dBu 93 dB @ +22 dBu
Damping Factor	> 220 @ 8 Ω
Crosstalk	> -68 dB @ rated power, 1 kHz
Indicators	Power indicator LED ring illumination (yellow) Overload/Protection LED ring(red) LCD display VU meters System fault, overcurrent/overdrive indicators
Operating Temperature	14° to 104° F (-10° to 40° C)
Cooling Method	Automatic variable speed fan rear to front airflow
PC Control	Type B USB on front or IEEE 802.3 Ethernet network connector on back panel
Display	LCD 128 x 32, amber backlit
Delay	0 - 300 ms
Crossover	3 filter types per channel: (Butterworth, Bessel, Linkwitz-Riley) up to 48 dB/octave
Digital Equalizer	8-band parametric, 2-band dynamic (per channel)
Dynamics	Digital zero attack limiter (per channel)
Presets	20 total presets, 19 user definable
Power Consumption	5 a @ 220-240 v~50/60 Hz 9 a @ 120 v~60 Hz 10 a @ 100 v~50/60 Hz
Power Efficiency	69%
AC Power Source	100~120 v ac 50/60 Hz 220~240 v ac 50/60 Hz
Rack Size	1 unit
Dimensions (WxDxH)	19 x 16 x 4" (483 x 408 x 95 mm)
Weight	21.6 lb (9.8 kg)
