For applications requiring a higher level of sophistication and capability, the MA6000M 8 Mic/Line auto-mixer will set a new standard for integrated mixer-amplifiers. The extensive feature set includes eight universal inputs with individual two-band equalization, direct outputs and adaptive proportional gain automatic mixing for use in speech reinforcement systems that can be expanded to accommodate up to 32 inputs. In addition, four auxiliary inputs are provided with intuitive front panel selectors to allow users to quickly and easily select between music sources. Equipped with remote volume control, source selection and system power, the MA6000M auto-mixer is aimed at installations in conference centers, council chambers, courtrooms, hotel meeting rooms and many other venues.
The MA6000M auto-mixer combines a fresh and modern aesthetic design with innovative technologies which will set new standards in distributed system designs. With a focus on sustainability, the MA6000M product family employs high efficiency electronics, resulting in significantly lower power consumption and operating costs. Aimed at enabling LEED certified applications they also create a vastly smaller carbon footprint than conventional products built around legacy technologies.
Switch-Mode Power technology reduces energy cost
4 front panel buttons select which four rear-panel Aux inputs are active and feeding the Main mix bus at any given time
Multi-featured, dedicated page input with assignable Chime, switchable Mic/Line and Phantom power
Main mix output features switchable mic/line level settings
Volume, power, and aux channel selection are controllable with optional wired remote control

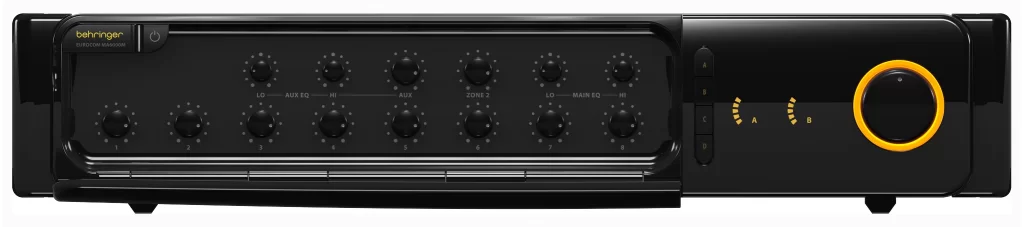

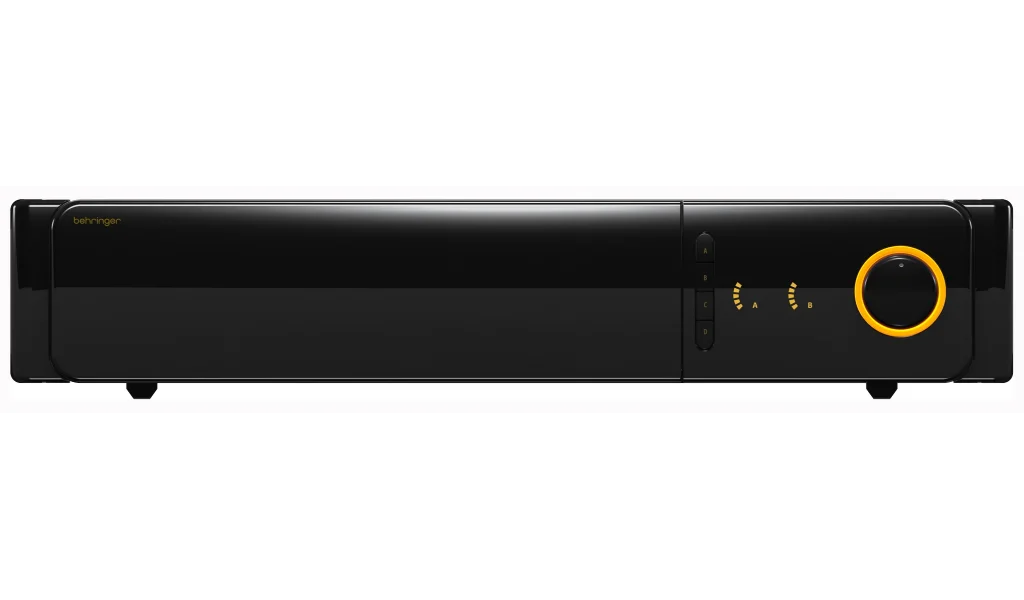

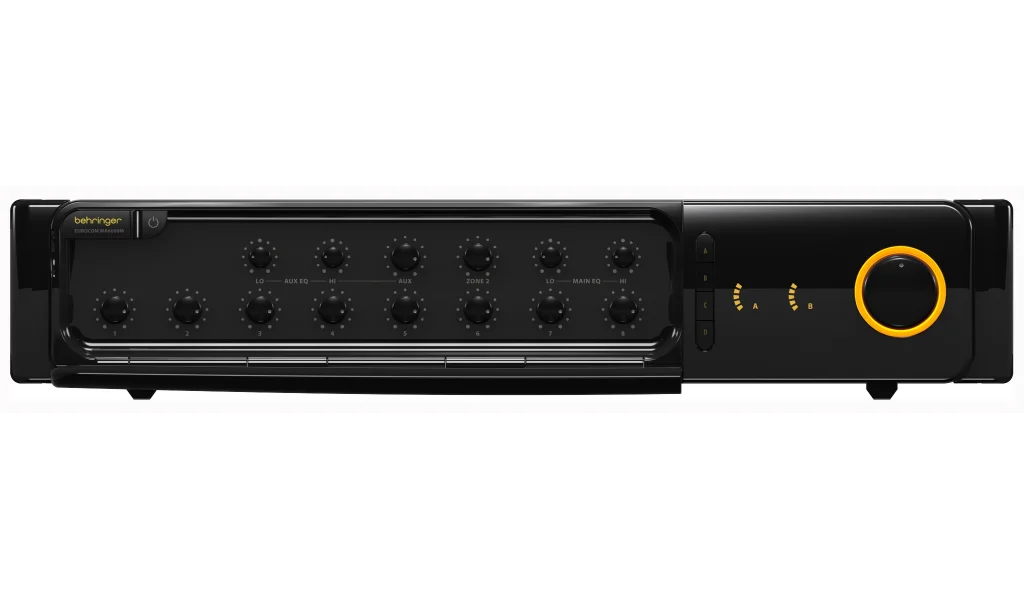

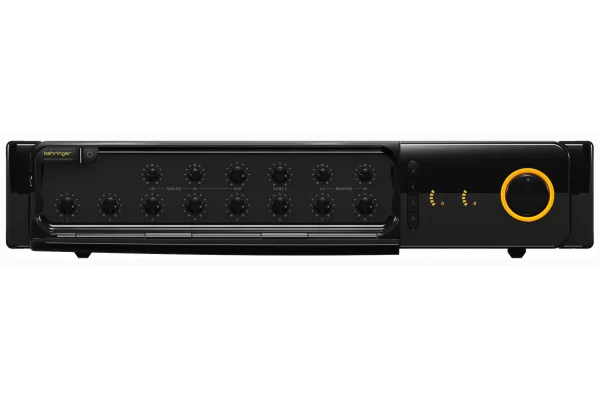

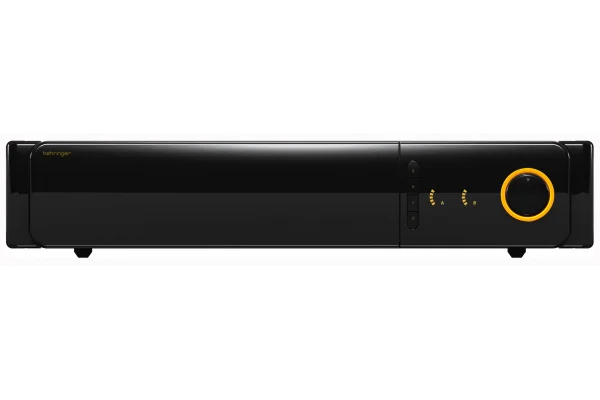

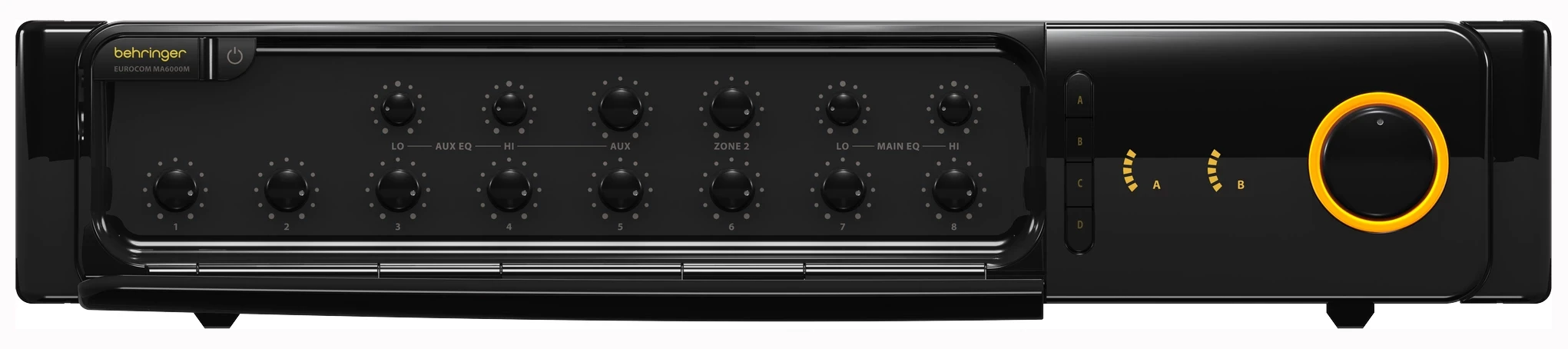

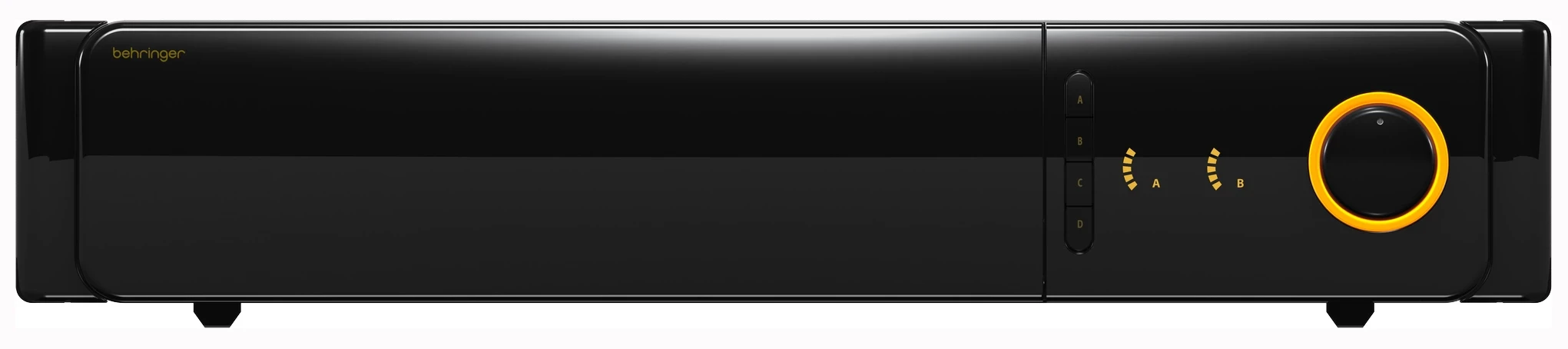

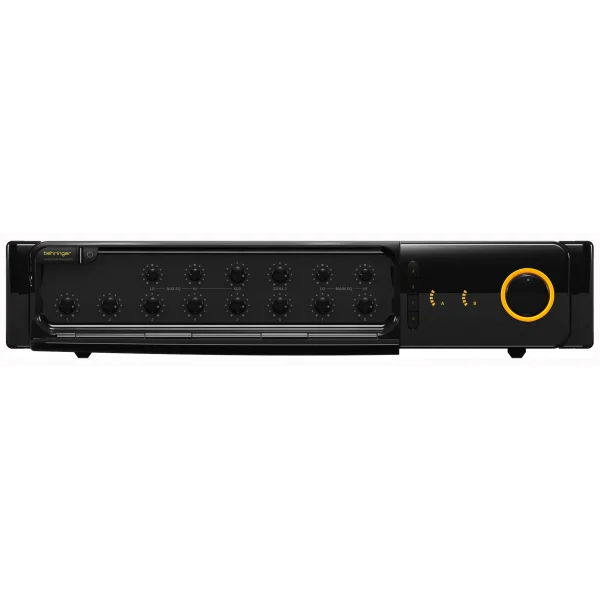

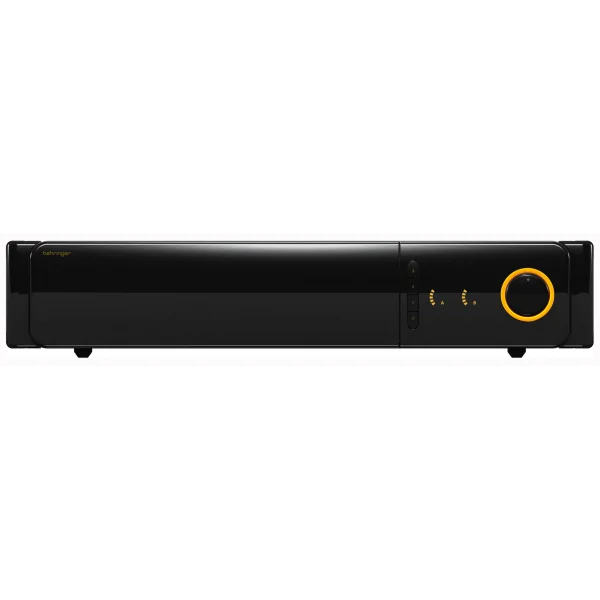

Auto-dimming control illumination, dual channel VU meter, Power switch, and dual-function indicator ring surrounding Master volume control

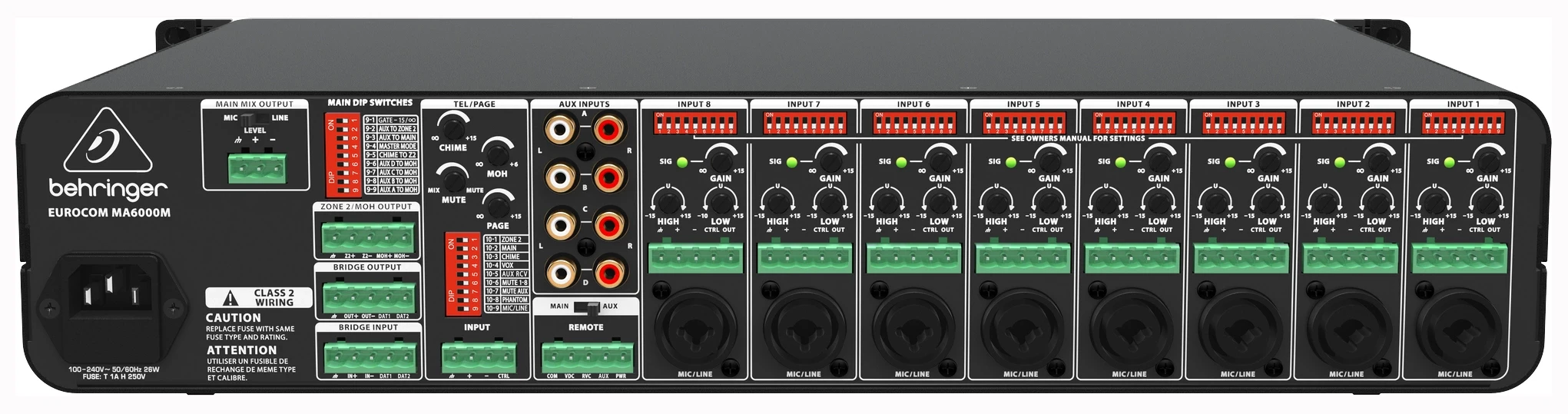

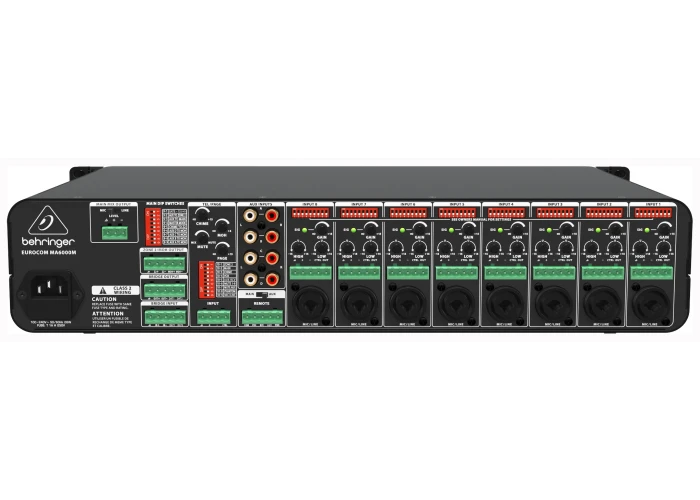

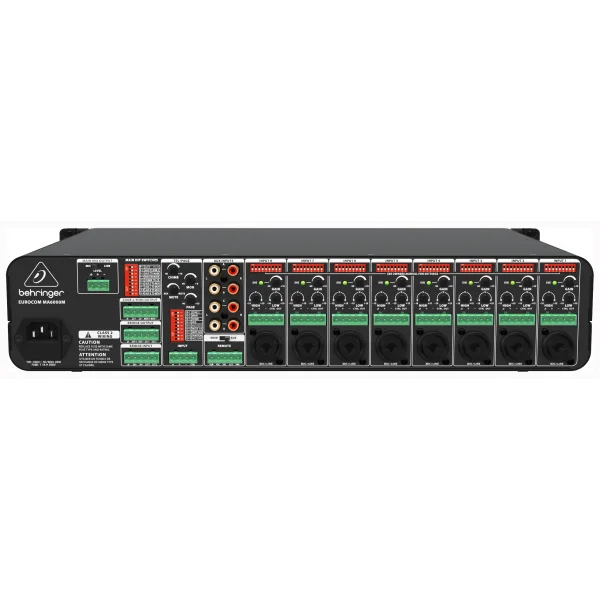

Main Mix output on balanced Euroblock connector featuring switchable Mic/Line level
Zone 2 or MOH assignable output with independent gain control
24 VDC
Switchable on inputs 1 to 8 and Tel/Page input

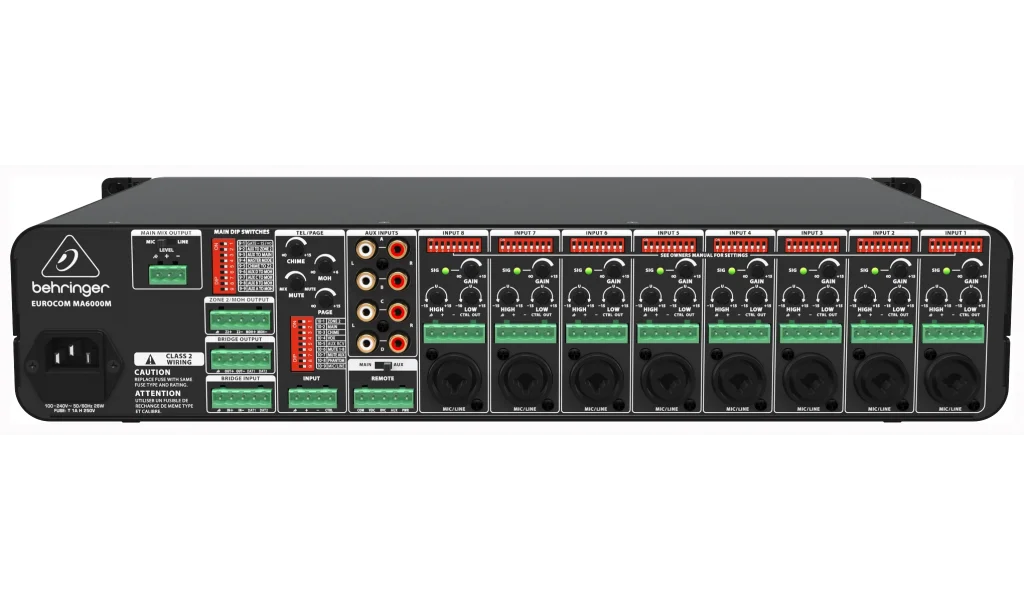

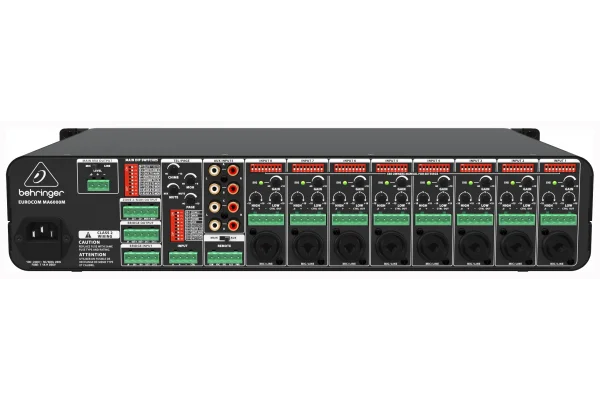

Audio Outputs
1x 3-Pin male Euroblock main mix output (mic/line switchable)
8x 5-Pin Euroblock direct outs
1x 5-Pin Euroblock bridge out
1x 5-Pin Euroblock zone 2/MOH out
Master:
Low: ± 10 dB @ 100 Hz
High: ± 10 dB @ 12 kHz
Inputs 1 to 8:
Low: ± 15 dB @ 100 Hz
High: ± 15 dB @ 12 kHz
Connections
Remote: 1x 5-Pin Euroblock
Common: -5 VDC @ 100 mA (short-circuit protected)
Remote Power: 5 VDC @ 100 mA (current limited, short-circuit protected)
RVC: 10 kΩ linear taper potentiometer
Aux Input Select: used in conjunction with wall remote to select aux feed
Power On/Off: 5 VDC voltage make contact input, no open voltage
Inputs 1 to 8: no voltage make contact input; open voltage 5 VDC, short circuit < 10 mA
Indicators
Power: Yellow LED ring illumination
Overload: Red LED ring illumination
Output Level: LED VU meter (yellow and red when clipping)
Power Supply
Mains Voltage: 100 to 120/220 to 240 VAC, 60/50 Hz (switchable)
Power Consumption: 26 W
Fuse: T 1 AH 250 V
Mains Connector: Standard IEC Receptacle
