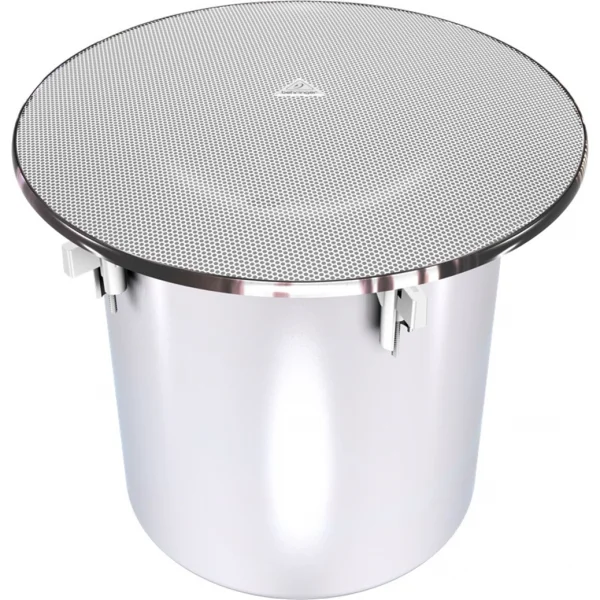

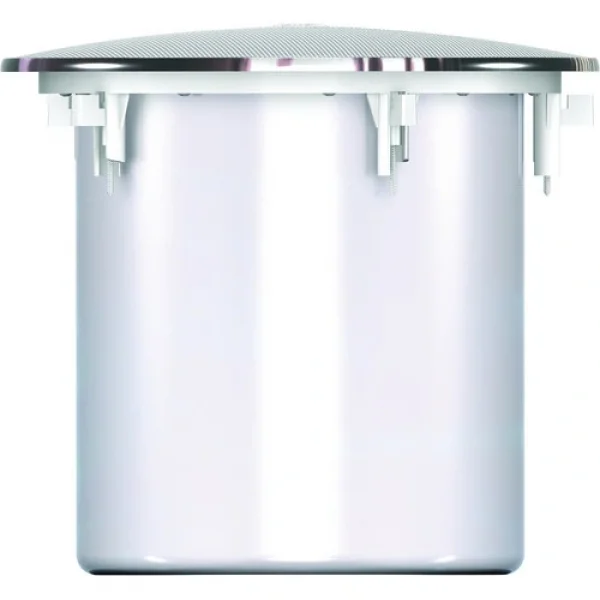

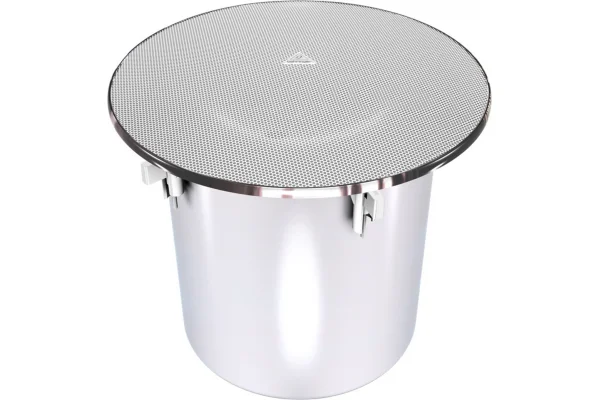

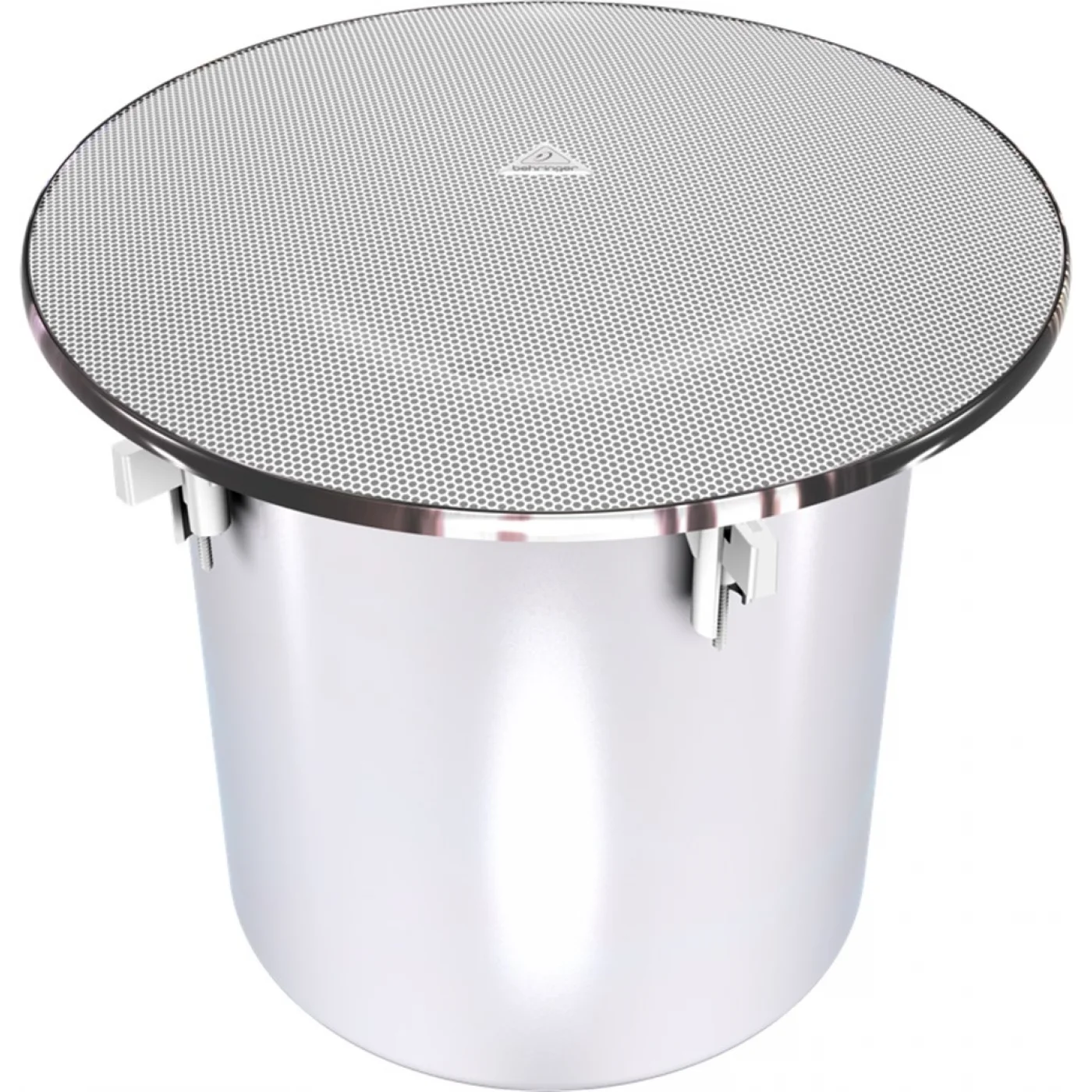

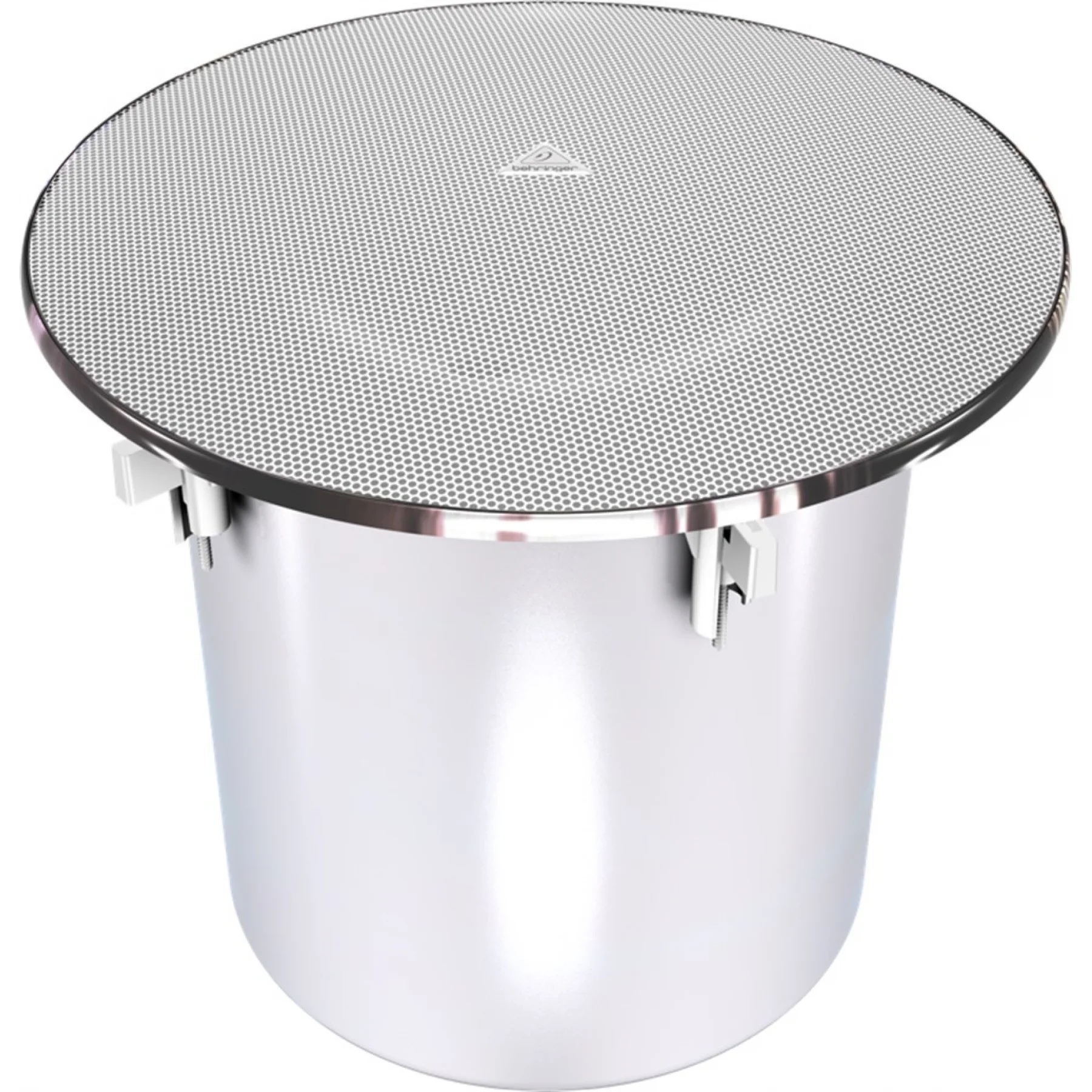

The ST208S high performance 8” in-ceiling subwoofer has been designed for demanding installation projects such as conference centers, hotels, casinos, and other venues that require rich, full sounding AV playback and precise background and foreground audio complimented by the powerful Low Frequency performance of the ST208S.
At BEHRINGER our exacting quality control standards and advanced engineering research make certain that every in-ceiling speaker will deliver years of uncompromised sound quality and faultless performance. The ST208S design aesthetic gives the speaker a soft and unobtrusive profile adding modern style and sophistication to any décor. The ST208S body design provides optimum low frequency response and advanced driver protection technology ensures reliable performance under extreme operational conditions.
Building the ST208S in-ceiling speaker with both a Low Impedance drive mode and a multi-tap High Impedance transformer ensures that the ST208S will always be a perfect fit in every application, extending a cost-saving benefit to the Installer by streamlining purchasing with singe SKU ordering, reducing inventory and overhead costs with multi-function units, and reducing time spent on proposals by providing a single unit solution to multiple projects.
- Ported refl ex enclosure for outstanding bass response
- Exceptional sound quality and uniform dispersion
- Overload circuitry for driver protection
- Black powder-coated steel grille with smoked-chrome rim for unique look (no trim ring) that complements any decor
- 12-inch-deep back can of zinc-coated steel
- Professional 4-pole Euroblock connector (included)
- Easy tile mount with steel support bars, split C-ring backing plate, and seismic restraint
- Designed for “blind fi t” installation
- Safety code compliant (UL1480 and UL2043 rated)
- Ships in a set of two with all required hardware
Specifications:
- Frequency range (-10 dB): 45 Hz - 200 kHz
- Frequency response (-3 dB): 55 Hz - 150 kHz
- Power handling (pink noise): 80 W
- Max. power handling: 160 W
- Sensitivity: 89 dB, 1 W @ 1 m, 1/2 space
- Nominal dispersion: 150°
- Nominal impedance: 8 ohm
- Maximum SPL (low impedance): 108 dB @ 1 m
- Transformer taps @ 70 V: 80, 40, 20, 10 W
- Transformer taps @ 100 V: n/a, 80, 40, 20 W
Transducers:
- Baffle: Plastic
- Back can: Steel
- Termination: 4-pole Euroblock
- Outside diameter: 13.7" / 348 mm
- Inside depth: 12.5" / 317 mm
- Cutout size: 12.2" / 308 mm
- Net weight: 20.9 lbs / 9.5 kg
