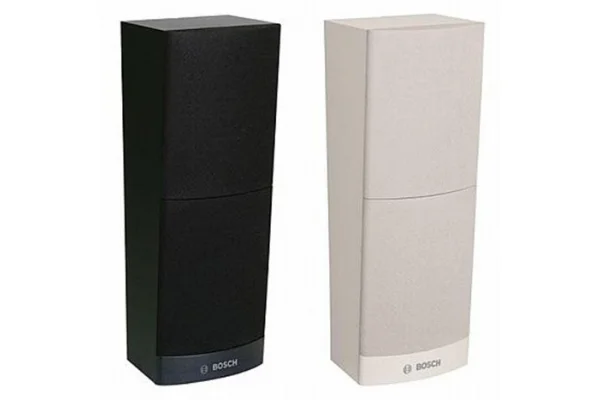

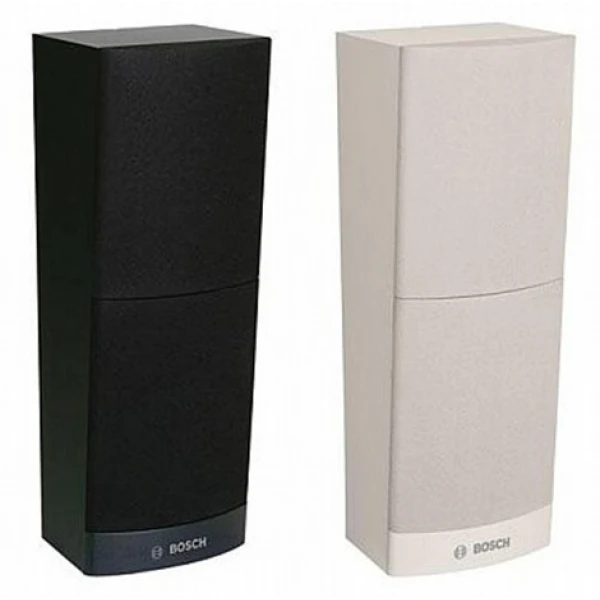

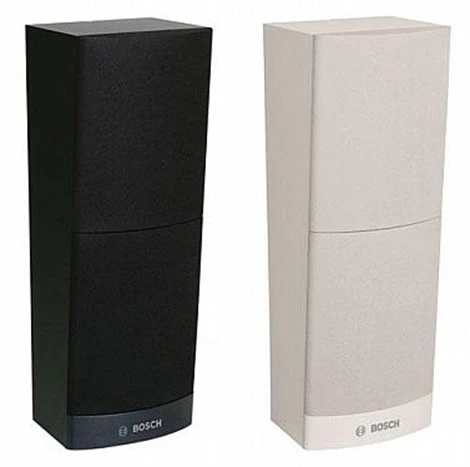

The LB1-UW12-x is a 12 W, general-purpose, cost-effective loudspeaker for indoor use. Keyholes at the rear provide quick and easy wall mounting. The angled front baffle results in a better sound in the listening area. The cabinet is available in black or white.
Maximum power 18 W
Rated power 12 / 6 / 3 W
Sound pressure level at 12 W / 1 W (1 kHz, 1 m) 104 / 93 dB (SPL)
Effective frequency range (-10 dB) 160 Hz to 20 kHz
Opening angle 1 kHz / 4 kHz (-6 dB) horizontal 195° / 95° vertical 69° / 17°
Rated input voltage 100 V
Rated impedance 833 ohm
Connector 4-pole push-in terminal block
* Technical performance data acc. to IEC 60268-5
Mechanical
Dimensions (H x W x D) 441 x 151 x 150/111 mm(17.4 x 5.9 x 5.9/4.4 in)
Weight 2.5 kg (5.5 lb)
Color Black (D) or white (L)
cabinet / cloth (D) Matches RAL 9004 / RAL 9004
cabinet / cloth (L) Matches RAL 9010 / RAL 7044
Environmental
Operating temperature -25 ºC to +55 ºC (-13 ºF to +131 ºF)
Storage temperature -40 ºC to +70 ºC (-40 ºF to +158 ºF)
- Relative humidity <95%
