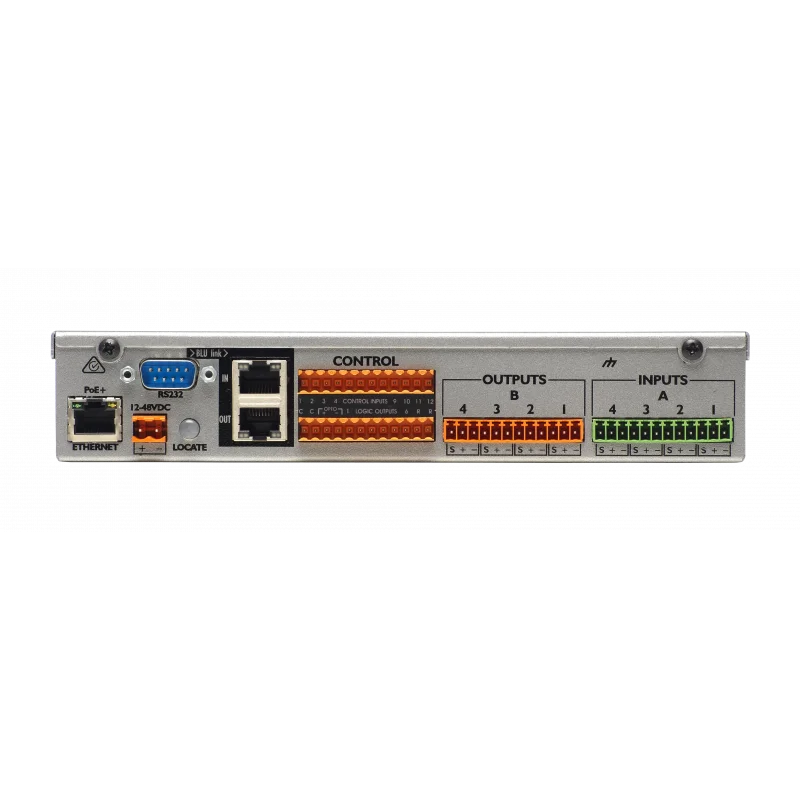

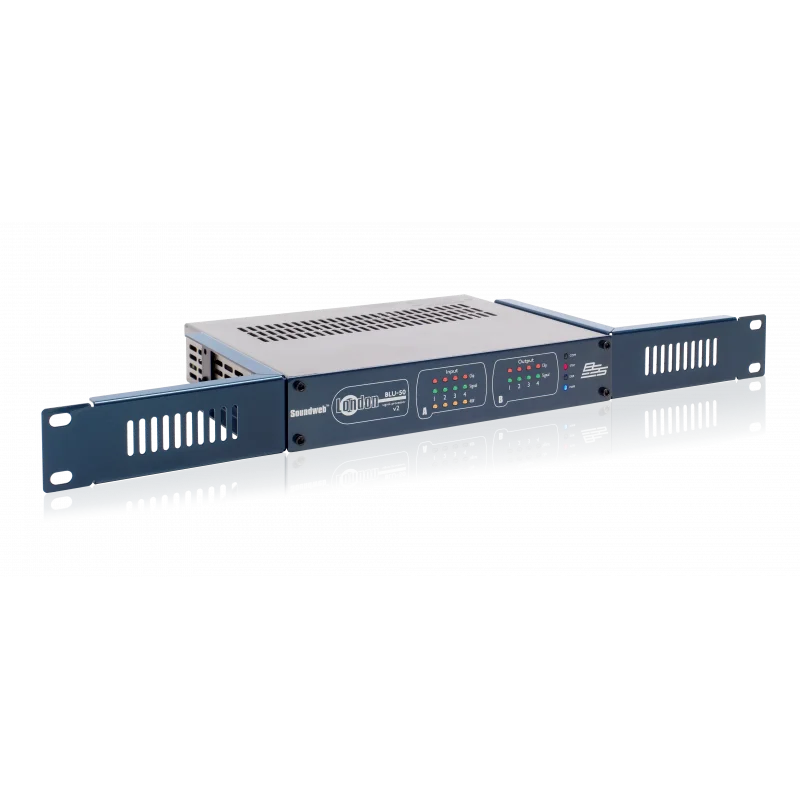

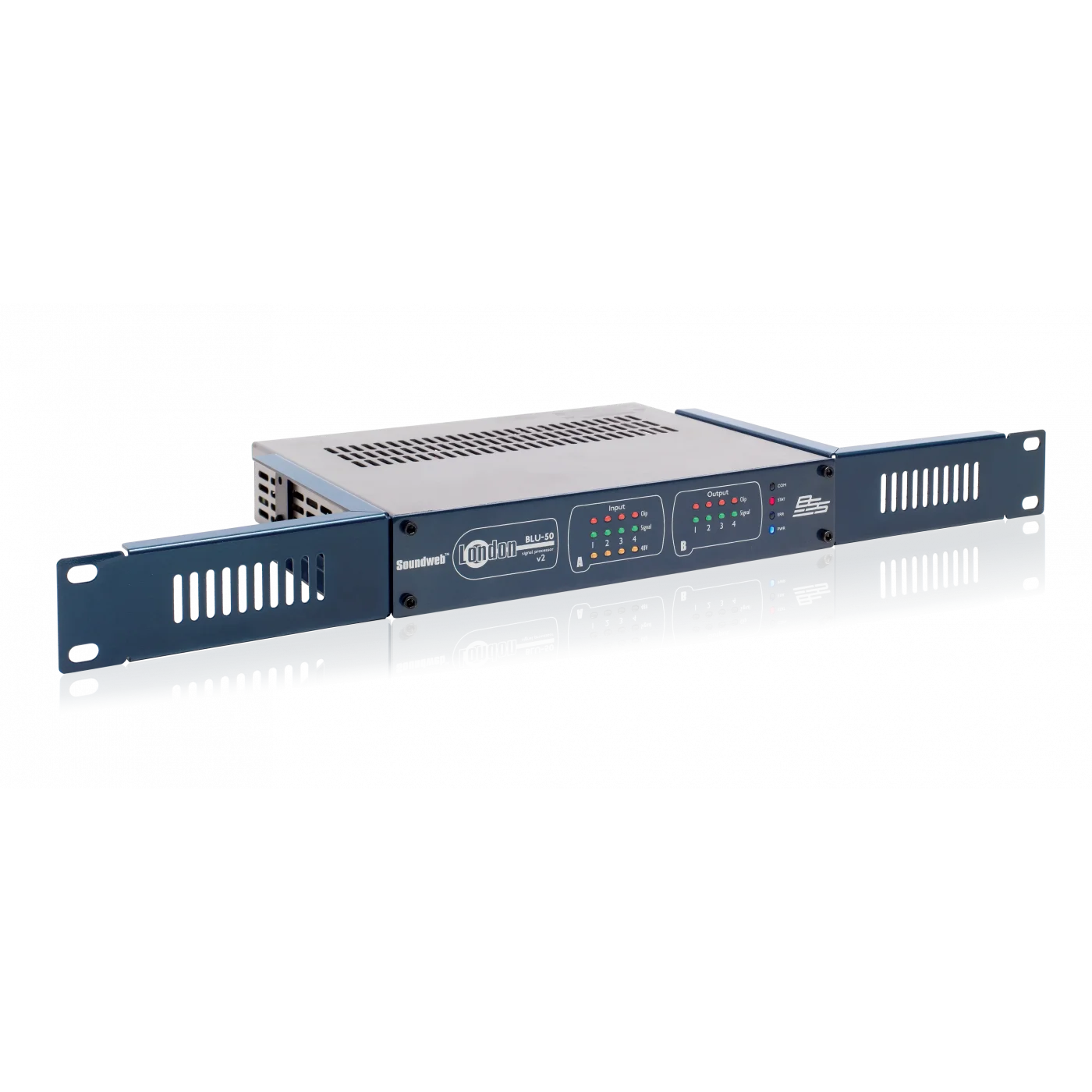

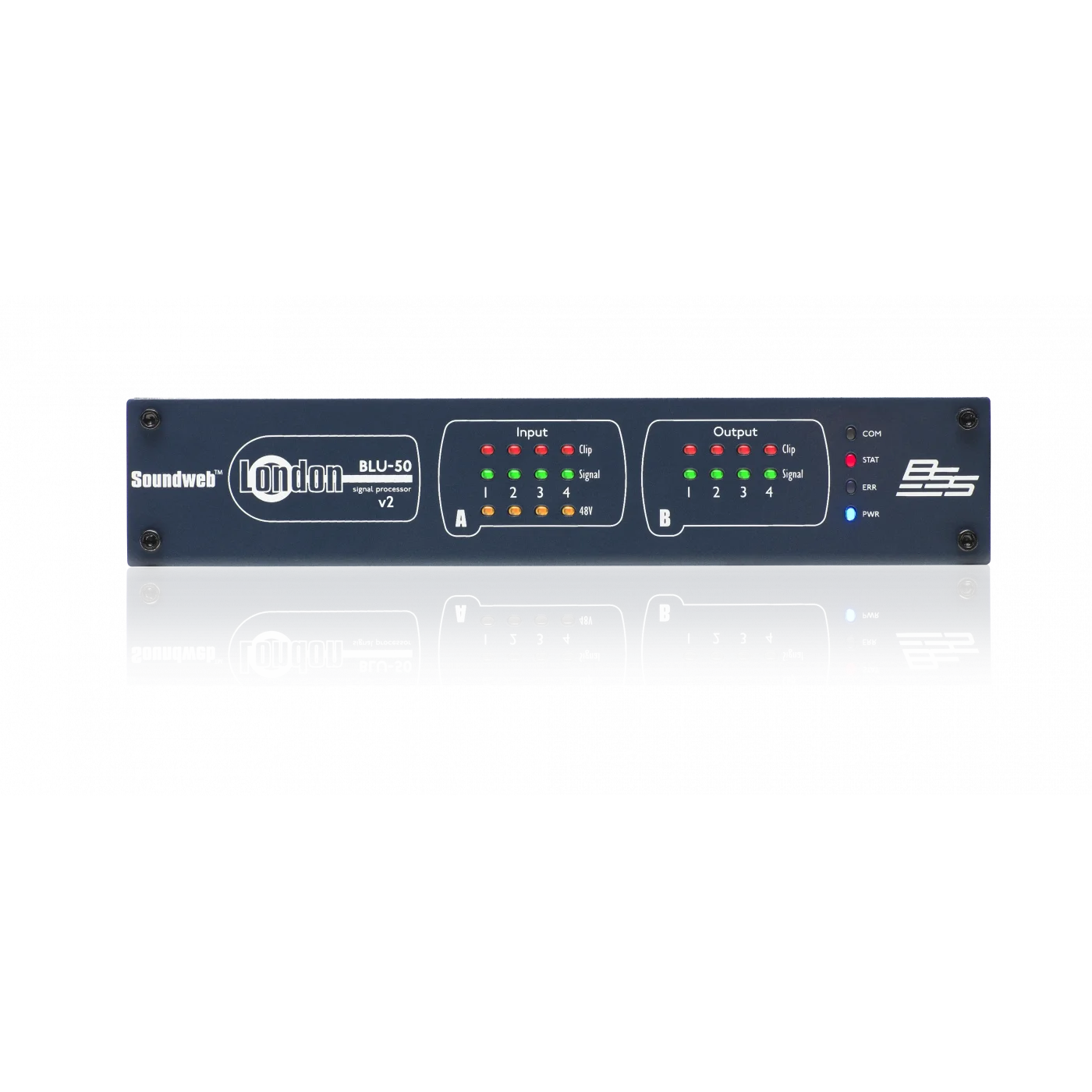

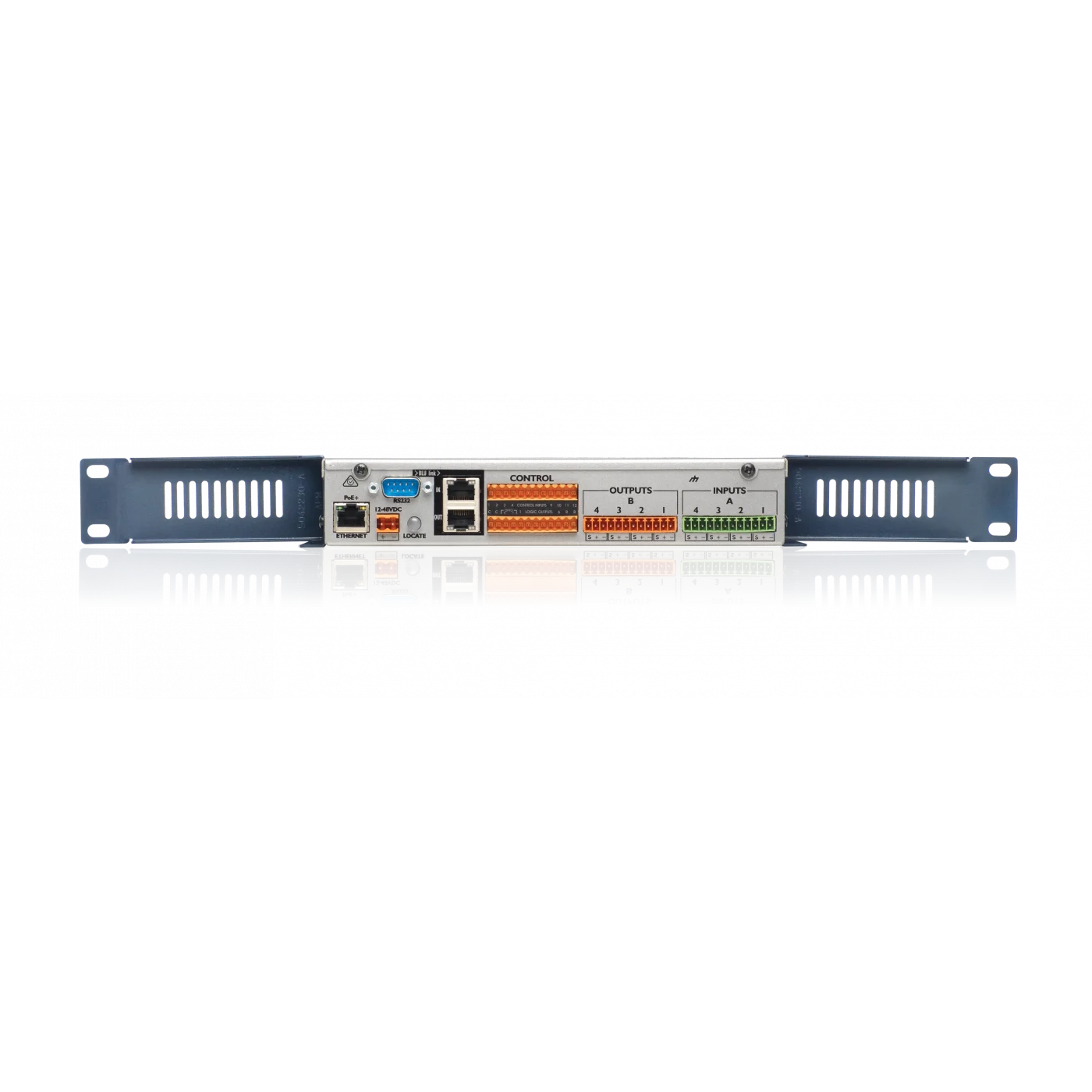

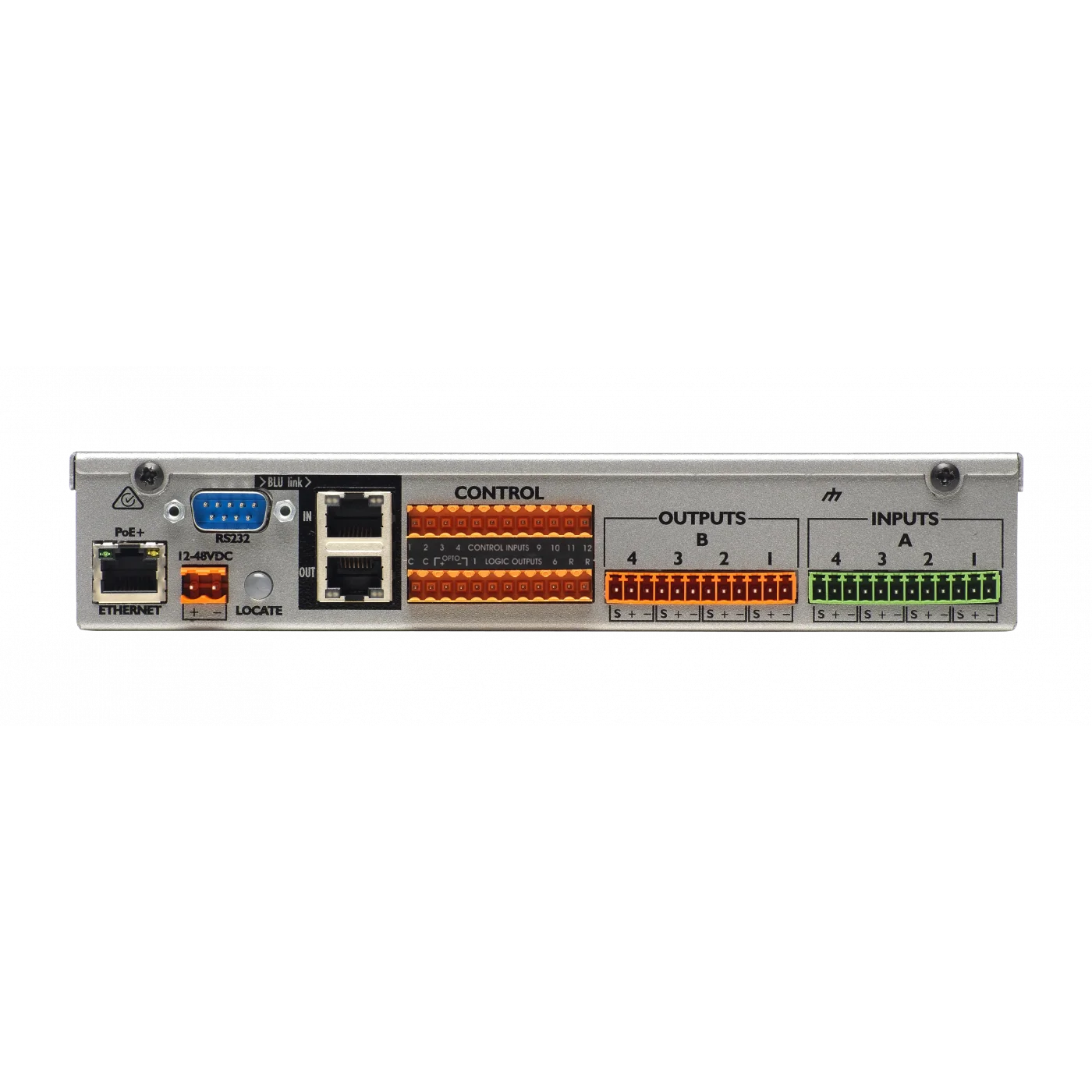

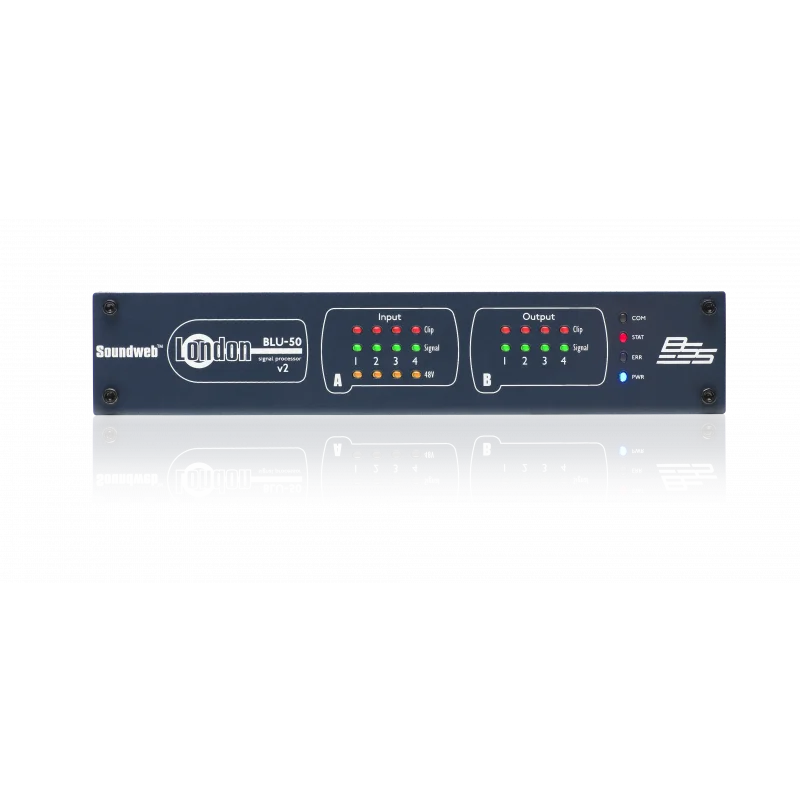

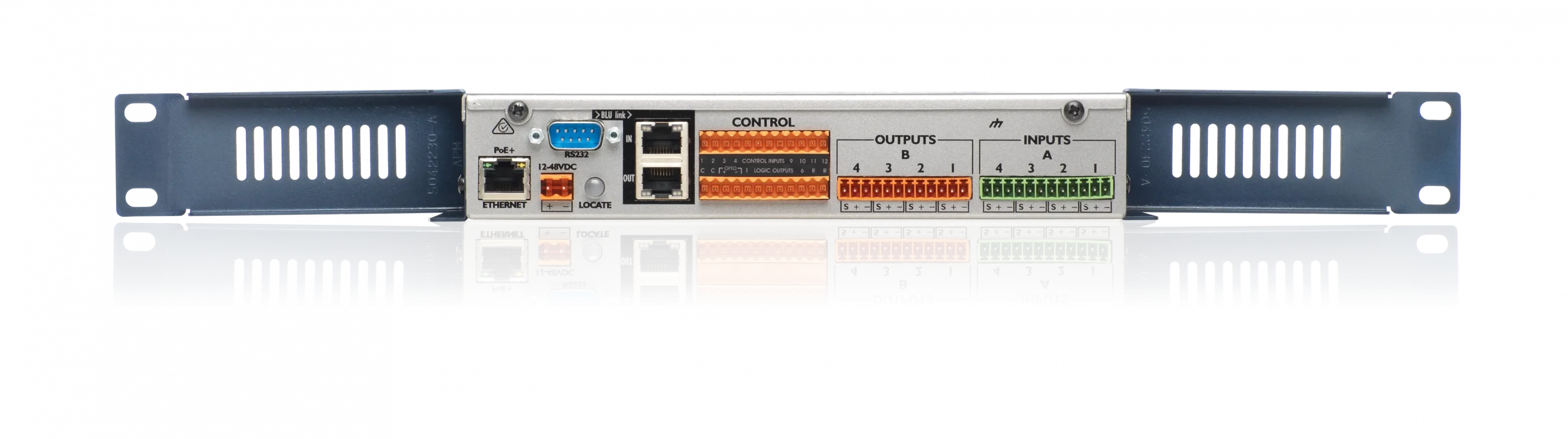

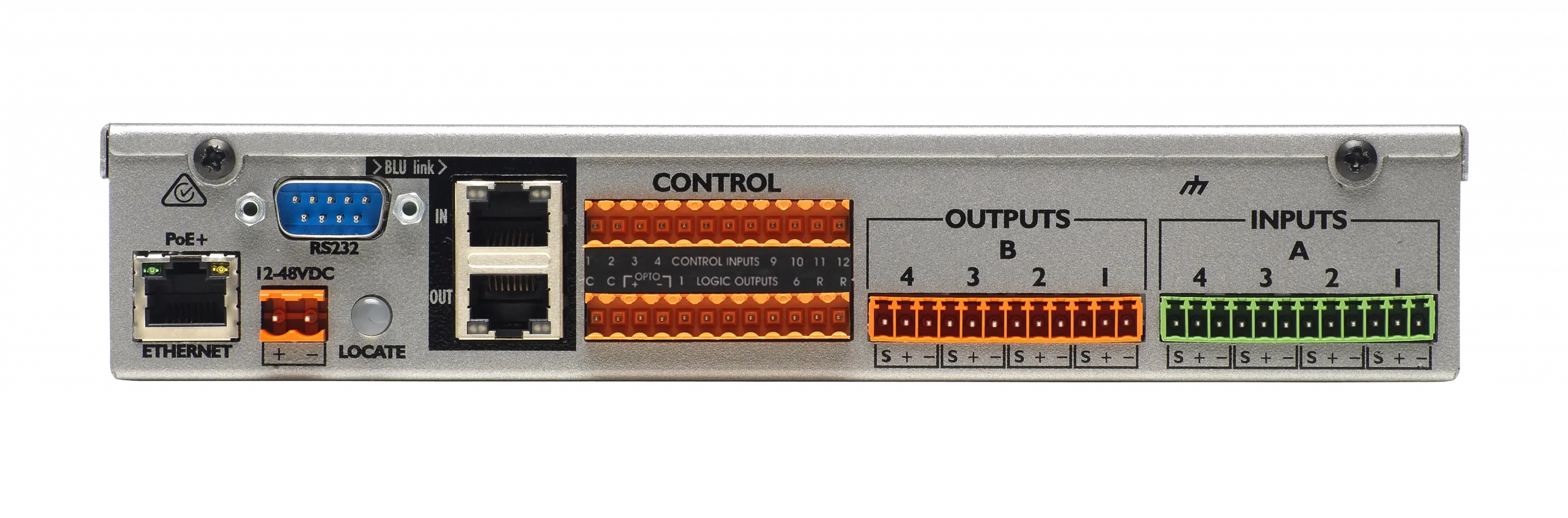

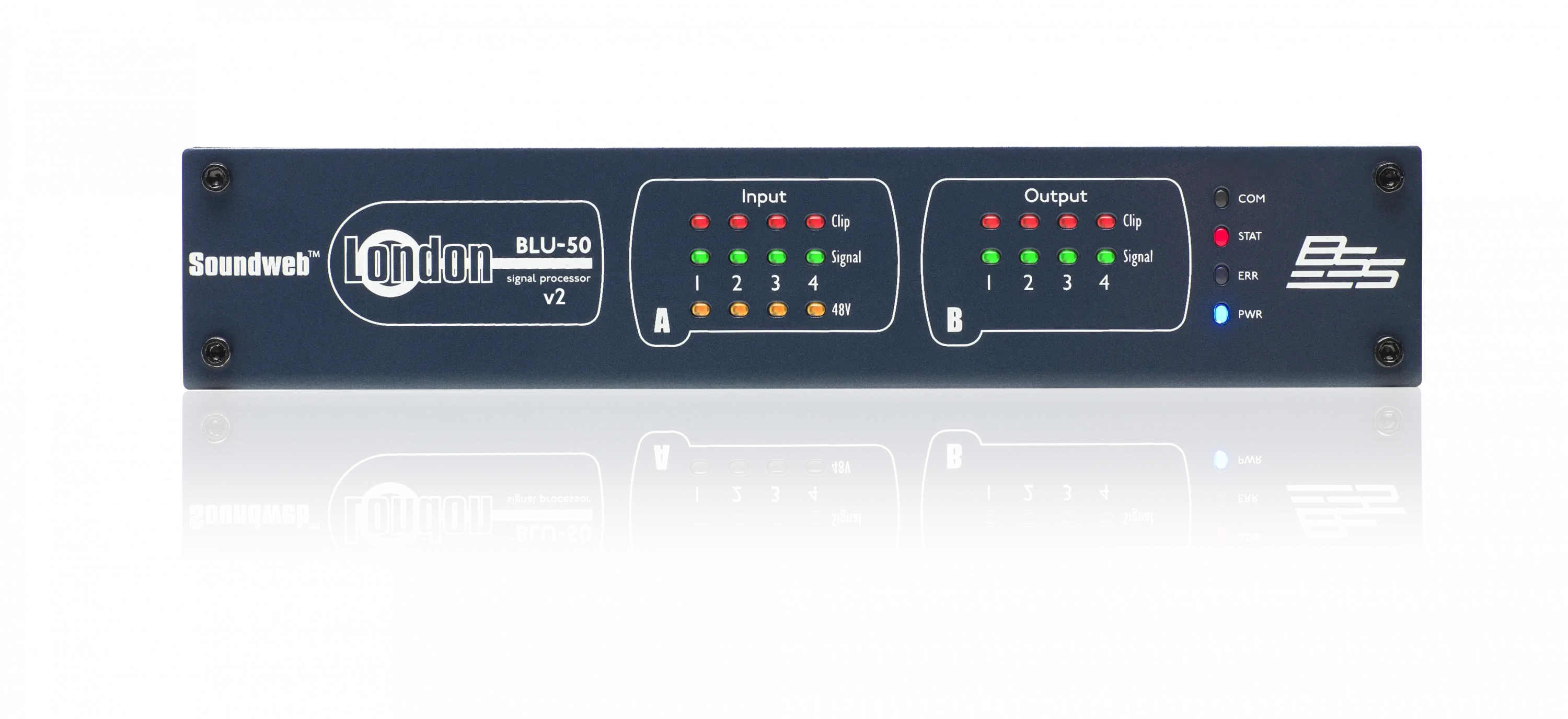

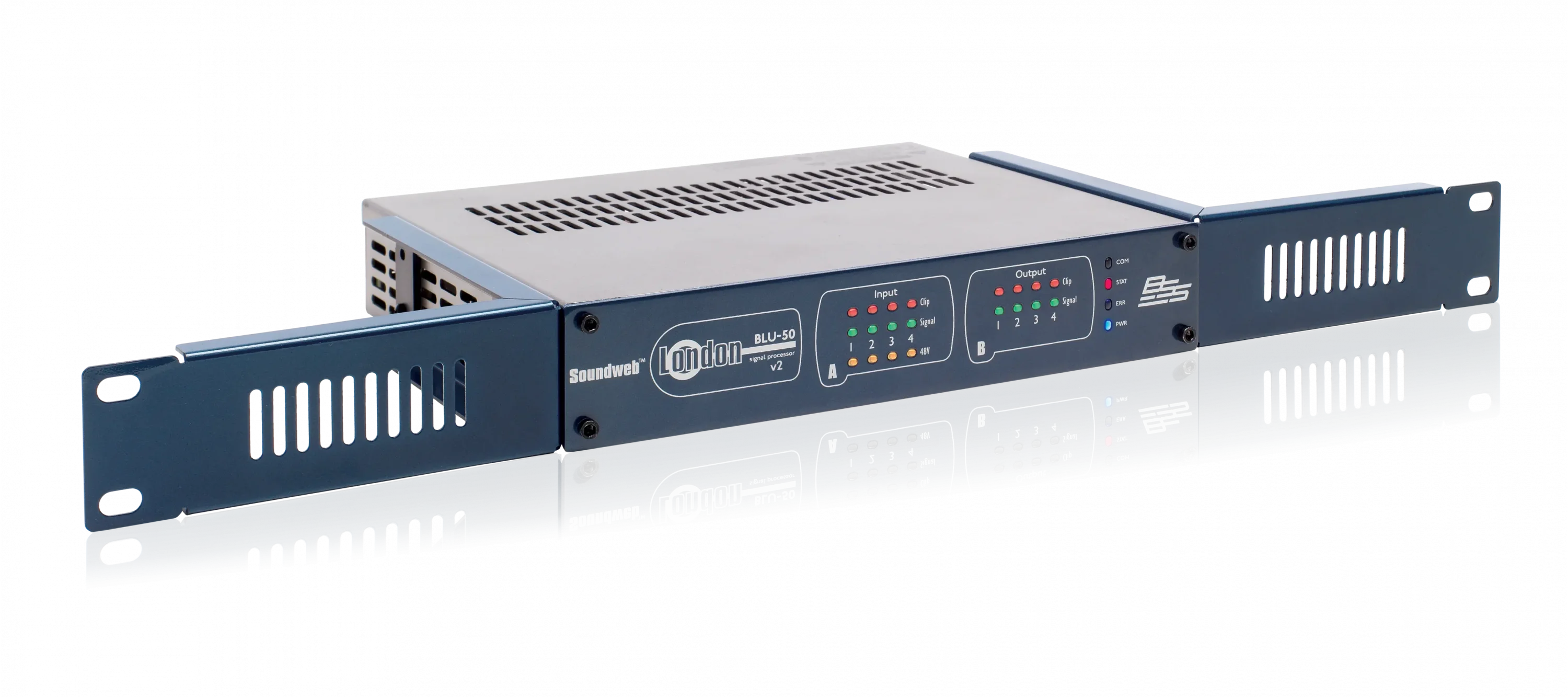

The BLU-50 is a half-rack width processor that offers a fixed configuration of four inputs and four outputs, configurable signal processing, logic processing and BLU link. The device can be powered with the included 12VDC power supply but can accept 12-48VDC via a terminal block connector. The BLU-50 can also be powered with PoE+ via the Ethernet port, allowing the device to be powered, configured, controlled and monitored using a single Cat 5e cable.
Specifications
| Chassis | Half rack (single space, half-width) |
| Custom I/O (card based) | no |
| Analog Inputs | 4 |
| Digital Inputs | 0 |
| AEC Inputs | 0 |
| Analog Outputs | 4 |
| Digital Outputs | 0 |
| Telephone Connection | 0 |
| Max Inputs/Outputs | fixed |
| Config | Software |
| LCD Display | no |
| Logic Processing | yes |
| RS-232 | yes |
| GPIO | yes |
| Signal Processing (MHz) | 400 |
| Cobranet | no |
| SWL Digital Audio Bus | 48 |
| AVB | no |
| Dante | no |
