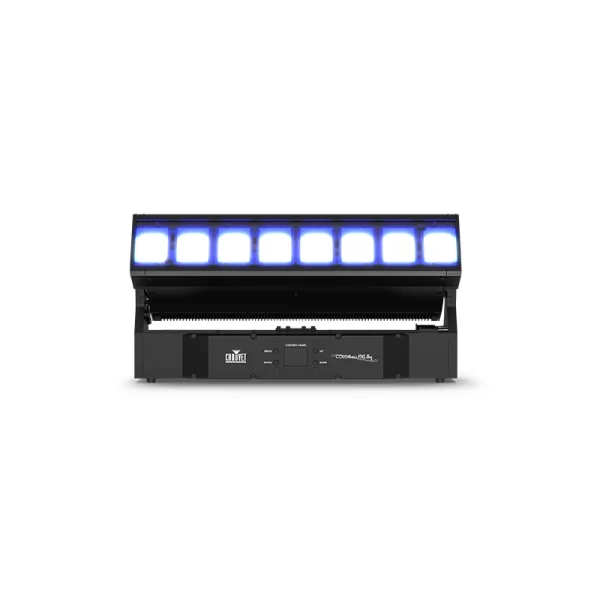

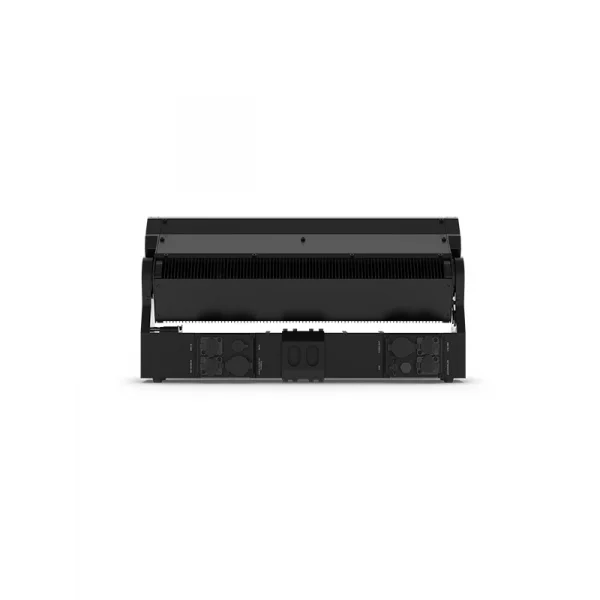

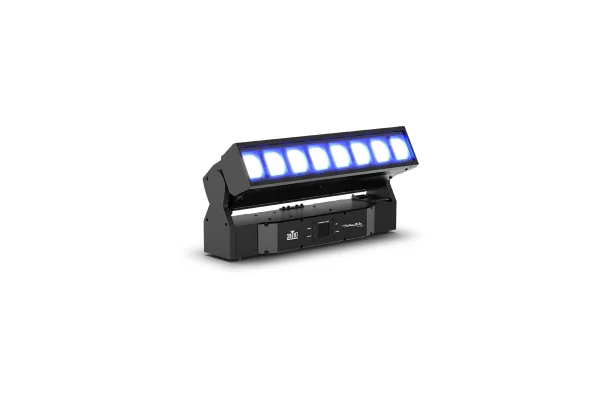

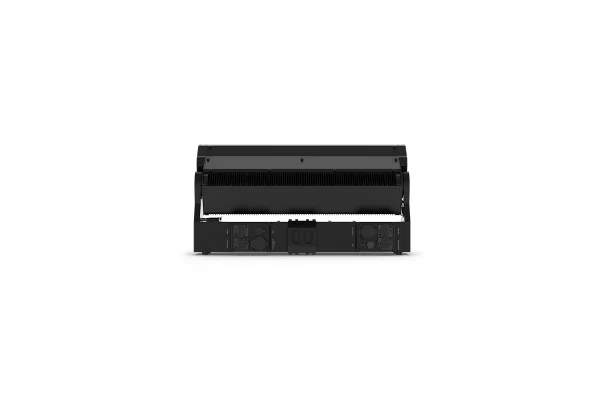

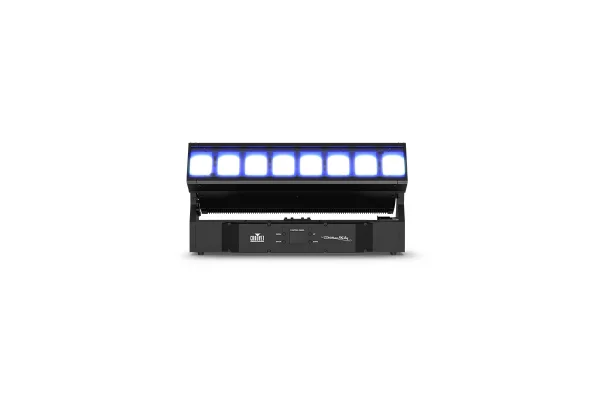

Chauvet COLORado PXL Bar-8 Pixel Led Bar Spot 8x45W RGBW IP65

• IP65-rated motorized tilting batten with (8) 45 W RGBW LEDs with a 3.5° to 47.3° zoom range, maintains pixel pitch between fixtures.
• Quiet and quick operation of 200-degree tilt
• Quiet and quick operation of zoom
• Fully pixel mappable
• Several built-in effects including virtual gobos and movement macros with foreground and background color control for easy pixel animation effects
• DMX, SACN, Art-Net, and Kling-Net control for full flexibility
• RDM Enabled for remote addressing and trouble shooting
• 3.5° to 47.3° zoom range for variable beam sizes
• TRUE1 compatible power input/output ports
• IP65 rated 5 pin DMX and TCP/IP input/output ports
• IP65 rated USBc software upload port
• Slotted Omega brackets for easy hanging on truss

OPTICAL

• Light Source: 8 LEDs (quad-color RGBW) 45 W, (3.0 A),50,000 hours life expectancy.
• Color Temperature: 6121 K (calibrated white)
• CRI: 64
• Beam Angle: 3.5° to 30.8°
• Beam Angle single cell: 4° to 29.9°
• Field Angle: 5.2° to 42.7°
• Field Angle single cell: 5.4° to 42.3°
• Cutoff Angle: 8.5° to 47.3°
• Cutoff Angle single cell: 6.1° to 45.5°
• Zoom Range: 3.6° to 47.3°
• Zoom Range single cell: 4° to 45.5°
• Lumens: 3,503
• Illuminance (3.6°): 12,109 lux @ 5 m
• Illuminance (47.3°): 563 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

• Tilt: 200°
• Tilt Ranges: 60°, 180°, 200° tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Dim Modes: 2
• Dim Curves: 4

CONSTRUCTION / PHYSICAL

• Dimensions: 19.69 x 5.47 x 10.75 in (500 x 139 x 273 mm)
• Weight: 25.2 lb (11.5 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer

CONNECTIONS

• Power Connection: Bare end to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP rated, Seetronic IP rated RJ45 connectors in/out
• Cable Length (power): 5 ft (1.5 m)
