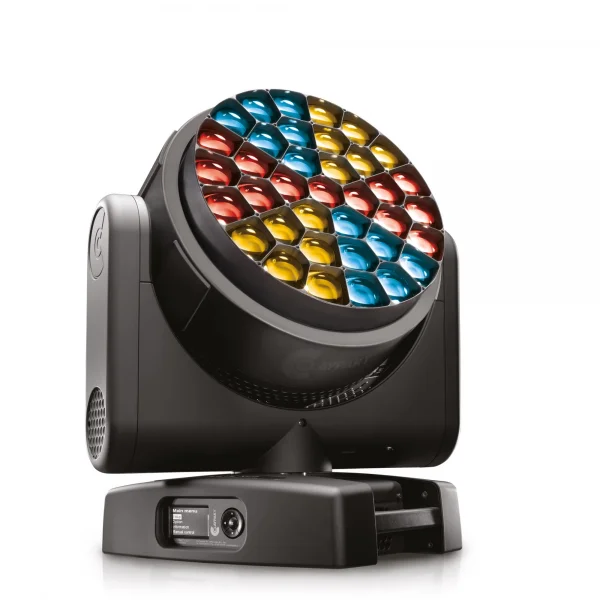

Claypaky HY B-EYE K25 37x40W RGBW Led Wash Spot

Claypaky HY B-EYE K25 37 Adet x 40W OSRAM OSTAR - Stage II LE RTDUW S2WN  tipi Led kullanır,  4°-60° elektronik zoom kullanan, daha çok büyük sahneler, stadlar ve büyük tiyatrolarda kullanma yönelik hazırlanmış Led Wash  moving head spotdur.


Teknik Özellikleri ;

LIGHT SOURCE TYPE

• 37 RGBW LEDs driven at 40 Watt
• Type: OSRAM OSTAR - Stage II LE RTDUW S2WN
• Color Temperature: 6000 K
• Life: 50000 hrs
  *It may vary depending on various factors, as type of use and environment

OPTICS

• Zoom range: 4°-60° Electronic Zoom Range
• High efficiency optical system

INPUT POWER

• 1250 VA @230Vac - 50Hz

CONTROL and CONNECTIONS

• 22/36/111/148 DMX channels.
• Basic Engine (Standard and Shape Mode).
• Pixel Engine (RGB and RGBW Mode).
• DMX protocol signal: USITT DMX 512.
• Art-Net / RDM / sACN.
• Arkaos Kling-Net protocol already included in the firmware.
• Display: Graphic LCD backlit b/w Display.
• Pan/Tilt Resolution: 16 bit.
• Dimmer Resolution: 16 bit.
• Movement control: vectorial.
• DMX signal connection: 3 and 5 pole XLR input and output.
• Software upload through DMX input

EFFECTS SECTION

• Three operating modes: wash, beam, FX (Kaleido effects).
• Bi-directional Rotating Front Lens.
• Digital Wash-Beam Framing effect.
• Beam edge softening control (in Wash mode).
• Pixel Patterning Macros with enhanced control.
• 0-100% linear electronic dimmer.
• Adjustable speed stop/strobe effect, with instantaneous blackout.
• Dedicated channel for color temperature setting.
• White CT Emulation 2500-8000K.
• RGBW auto-tuning to lamp CT Emulation.
• Tungsten Lamp Emulation.
• Slow Strobe: 1 flash/sec; Fast Strobe: 25 flash/sec
• Movement:
  - PAN = 540°- TILT = 210°

HARDWARE and SOFTWARE

• Long life self-charging battery
• Display Graphic LCD backlit b/w Display
• Firmware upload from another fixture
• Firmware Upgrade via Web Server
• Diagnostic
• DMX monitoring
• Remote access through RDM
• CloudIO compatibility

HOUSING

• Aluminum structure with die-cast plastic cover.
• Two side handles for transportation.
• PAN and TILT lock for transport and maintenance.



WORKING POSITION

• Working in any position.
• Hanging system: with fast-lock omega clamps (1/4 turn) on the base.
• Optional safety chain.

ELECTRICAL

• Power Supply:100-240V 50/60Hz
• 1250 VA @230Vac - 50Hz

THERMAL SPECIFICATION

• Max ambient temperature 45°C (113°F)
• Min ambient temperature -20°C (-4°F)
• Max temperature of the external surface 90°C (194°F)
• Total heat dissipation: 2562 BTU/hr ±10% / 2700 kJ/hr ±10%

SAFETY SPECS

• Automatic power safety derating in case of overheat of the LED board.
• Forced ventilation

COMPLIANCE

• CE: conforms to the European Directives
• UKCA: conforms to UK Regulations
• EAC: conforms to EurAseC Regulations
• cMETus Listed

PACKAGING

• Carton box + Polystyrene
• Carton box + Foam shell
• Flight case + Foam shell (2 positions)

WEIGHT - SIZE

• 27,5 Kg (60.6 lbs).

ACCESSORIES

• Omega clamps (included)
• Power cord (included)
• Carton box + Polystyrene.
• Carton box + Foam shell. F21313/001
• Flight case + Foam shell CF1001 (2 position)
