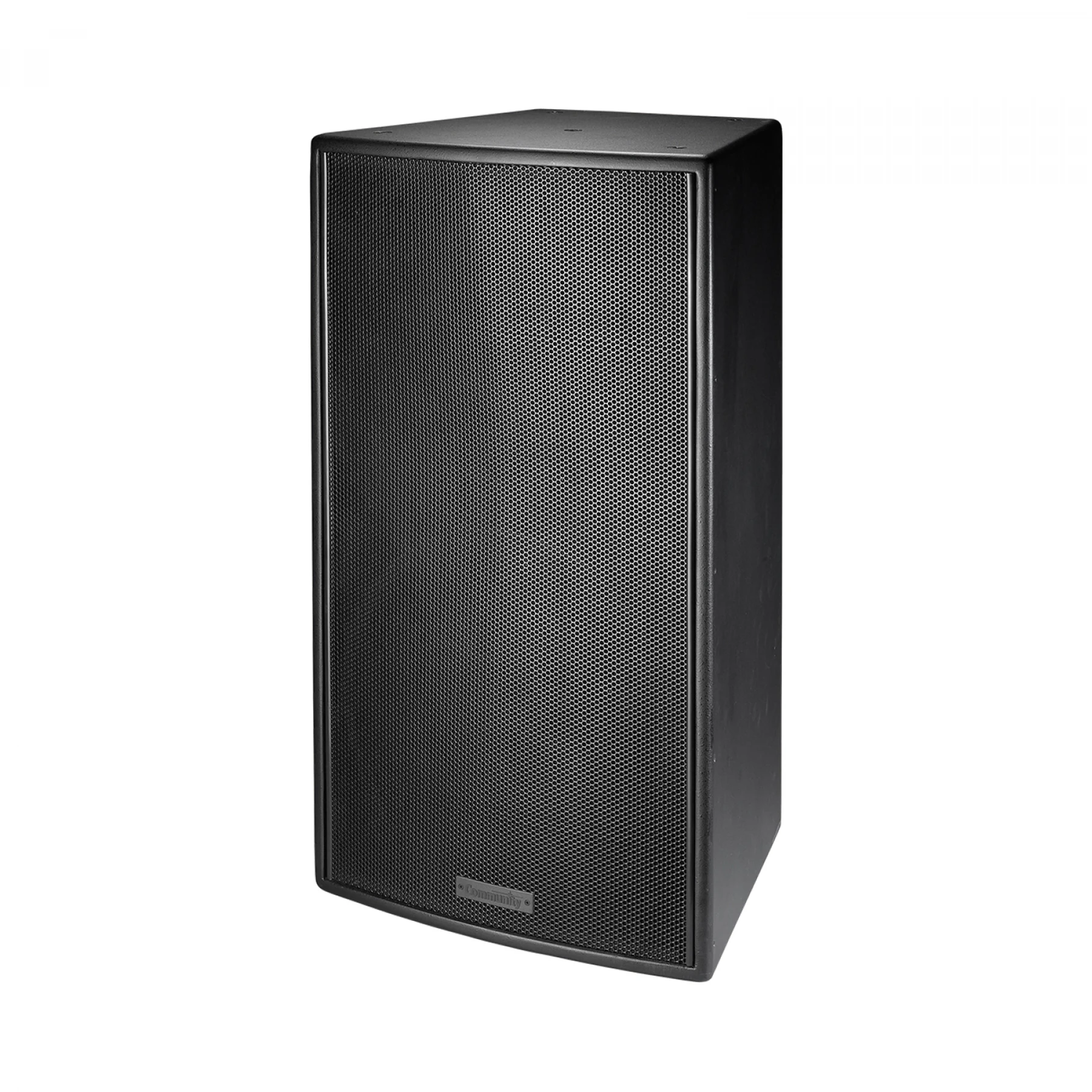

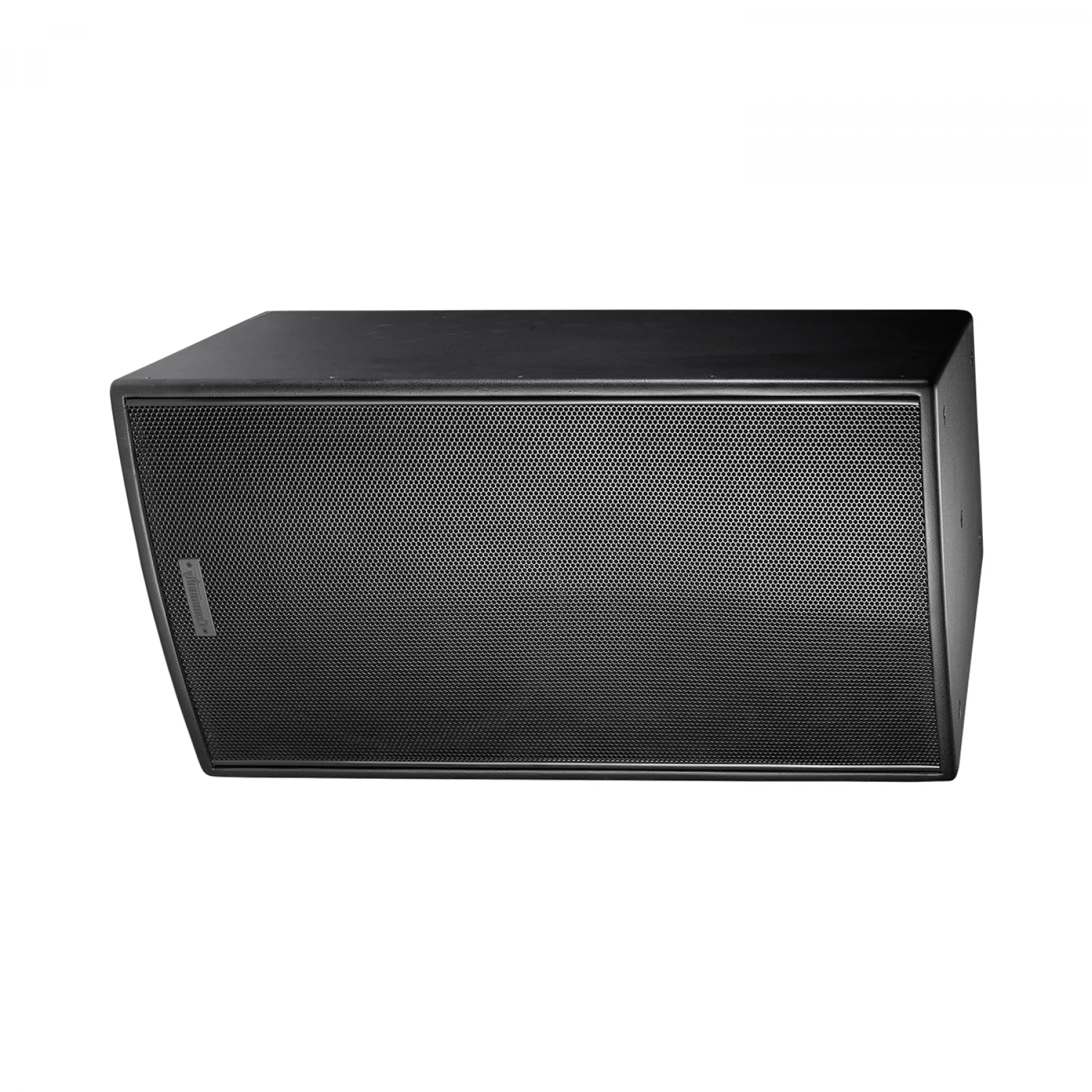

Community Sonus 3294 12" 3-yollu Pasif Hoparlör 1000W

SYSTEM Format:

• Three-way full-range,
• vented bass,
• switchable passive or bi-amp x-over.
• Rotatable fiberglass horn

Operating Range............................. 60 Hz - 20 kHz
Frequency Response........................ 90 Hz - 16 kHz (±3 dB)
Dispersion (-6 dB)........................... 90º H x 40º V
Maximum SPL @1m.......................... 123 dB continuous / 130 dB peak
Crossover Frequency.........................800 Hz / 3 kHz
Sensitivity in SPL (1W/1m free space)
100 dB (100 Hz - 12,500 Hz,1/3 octave)
100 dB (250 Hz - 4 kHz, speech range)
Impedance (passive)......................... Nominal 8 ohm/ Min. 2.5 ohm at 9.2 kHz

TRANSDUCERS

• Low Frequency: 12" (304mm) 200W RMS 500W Program, 8?
• Mid-Frequency: 6.5" (165mm) 100W RMS 250W Program, 8?
• High Frequency: 1" (25.4mm) 100W RMS 125W Program, 4?

MECHANICAL
Enclosure.......................................... 11-ply cross-laminated birch
Finish.............................................. Black catalyzed polyester paint
Rigging Provisions.............................10 - M10 threaded rigging fittings
(four on top, four on bottom, two on rear)
Grille...............................................Steel, powder coated black
Dimensions: H x W x D ....................29.3" (744mm) x 17.4" (442mm) x 15.4" (391mm)
Net Weight..................................... 53 lbs / 24 kg
