DB ES503 Vertical Array TriAmp 1000W Amp. 121 dB

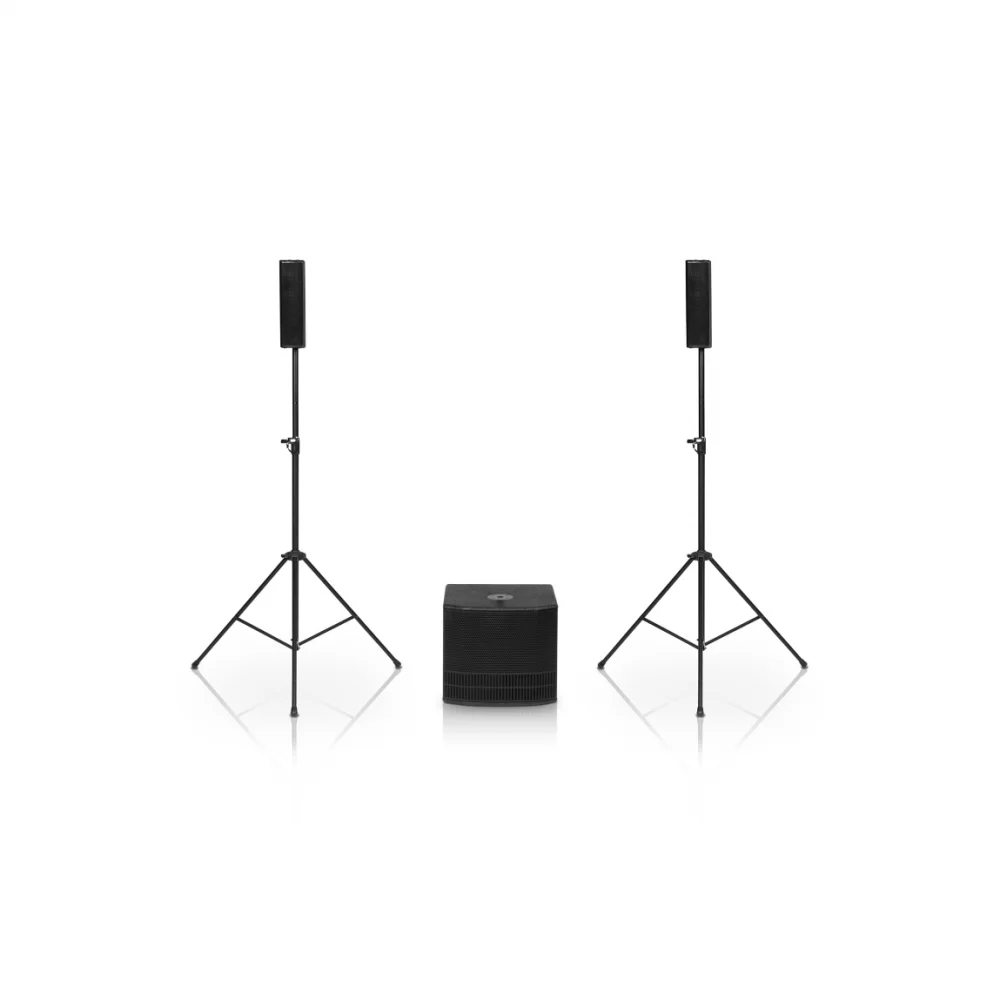

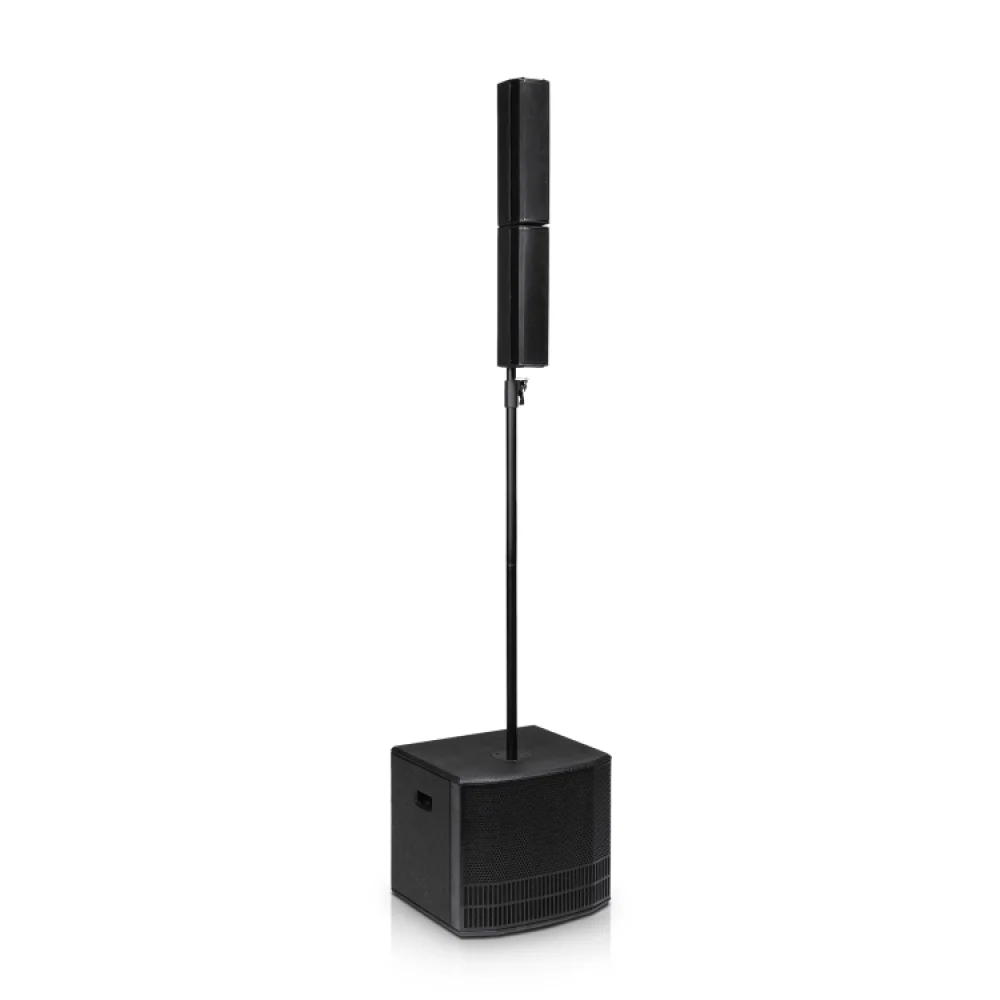

ES503 is a portable 3-amped stereo sound system composed by two passive tops and one 12” subwoofer. The sub hosts a 1000W power amp module with auto-range PSU and a 3-channels mixer with Bluetooth® connection. A powerful DSP – controlled through an advanced user-interface with an OLED display – manages both the coverage of the entire system and all functions of the mixer, making the ES503 a real gem in terms of sound performance and versatility.
Technical Data
Speaker Type: 3-amped Stereo System with two full-range tops and one subwoofer
Acoustical data
Frequency Response [-10dB]: 37 - 15.000 Hz
Max SPL: 121 dB

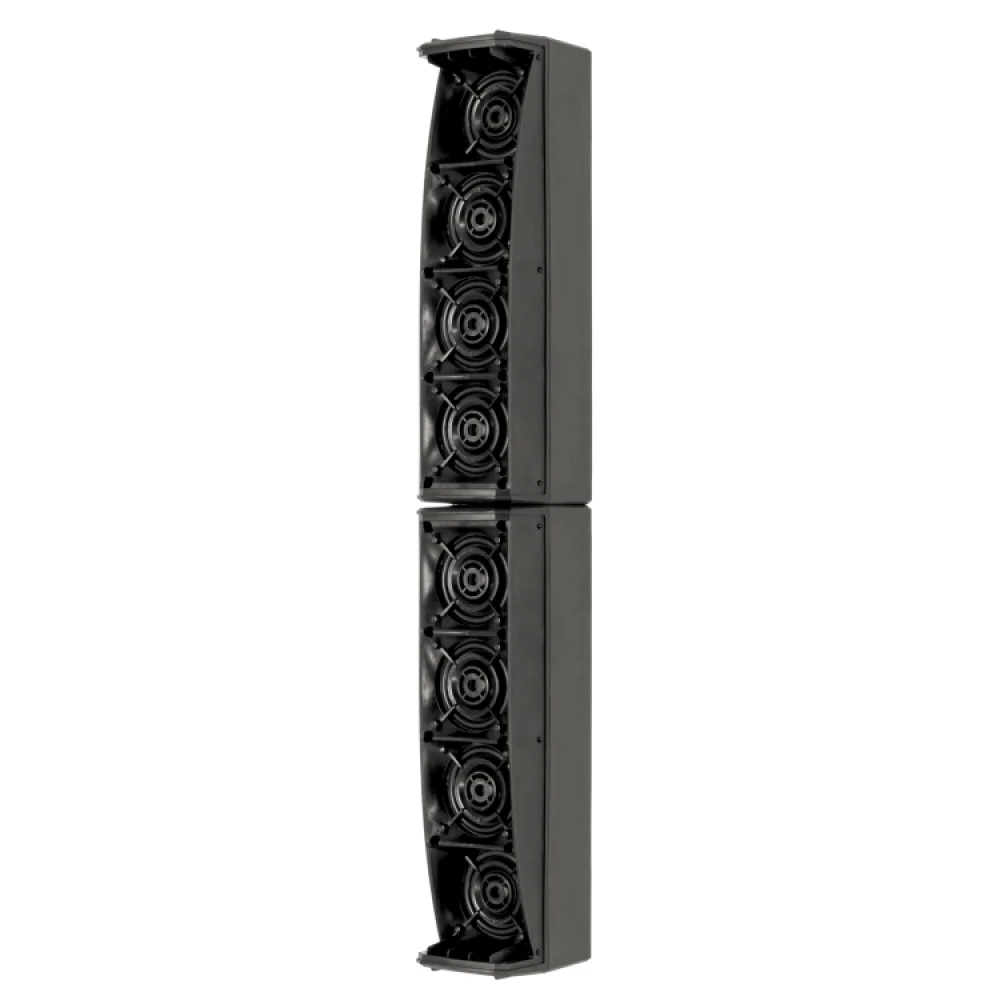

MF - HF: 8x 3"
Type MF - HF: Neodymium
LF: 12"
Directivity: 95x65°
Amplifier
Amp Technology: Digipro® G3
Amp Class: Class-D
Power Amp: 1000 W
Power Supply: SMPS with PSU Auto-range
Power Connection: VDE socket
Cooling: Convection
Controls: 1x OLED Display with rotary encoder w/switch 1x Audio signal monitoring LED 1x USB port (service data)
Processor
Controller: DSP 24 Bit/48 kHz
System Presets: Factory presets + User defined
Limiter: Dual Active, Peak, RMS, Thermal
Crossover Frequency LF-HF: 206 Hz
Input
Mic/Instrument Channel: 1x Combo (XLR/Jack) balanced/unbalanced input
Line Channels: 2x Combo (XLR/Jack) balanced/unbalanced inputs
Media Channel: 1x Bluetooth® built-in receiver
Mix Output: 1x XLR balanced output
Mechanics
Housing (Subwoofer): 15mm Black Painted Birch Plywood
Housing (Tops): Polypropylene PP
Handles: 2x lateral side (Subwoofer)

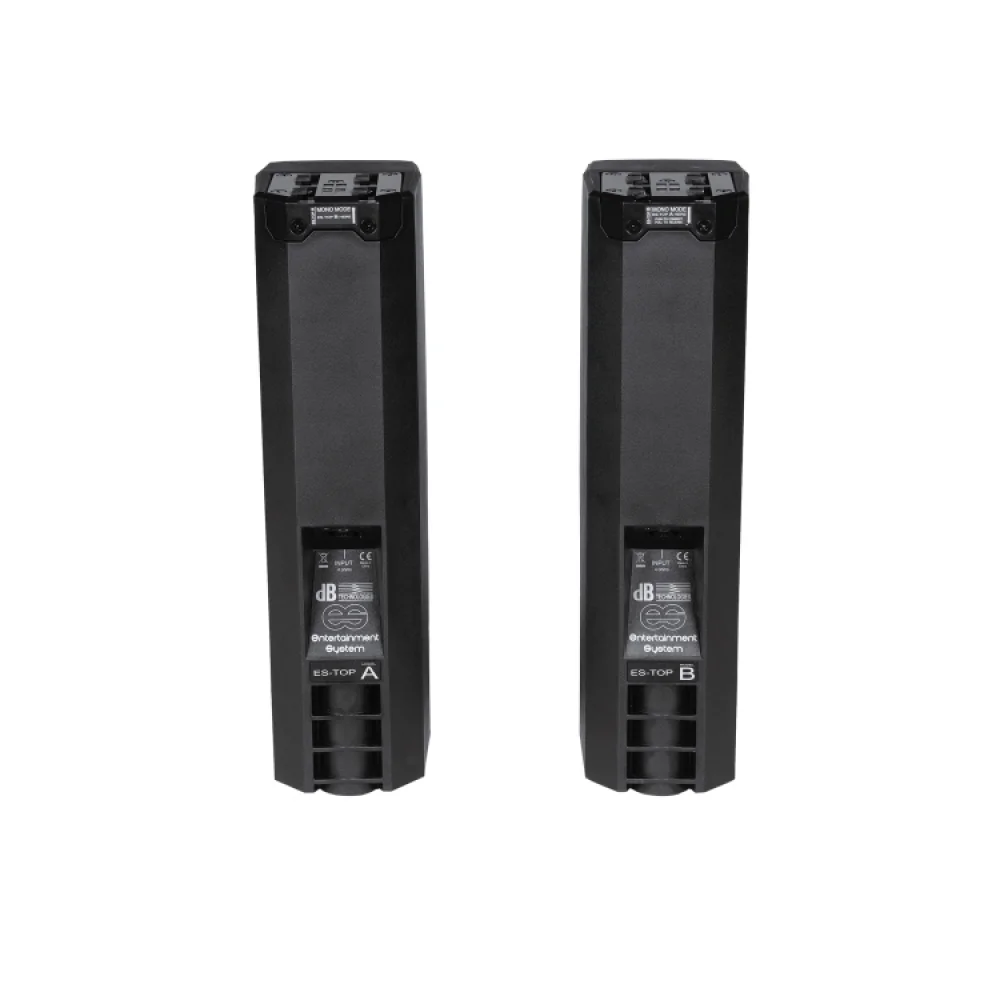

Width (Top): 95 mm (3.74 in)
Height (Top): 360 mm (13.98 in)
Depth (Top): 137 mm (5.39 in)

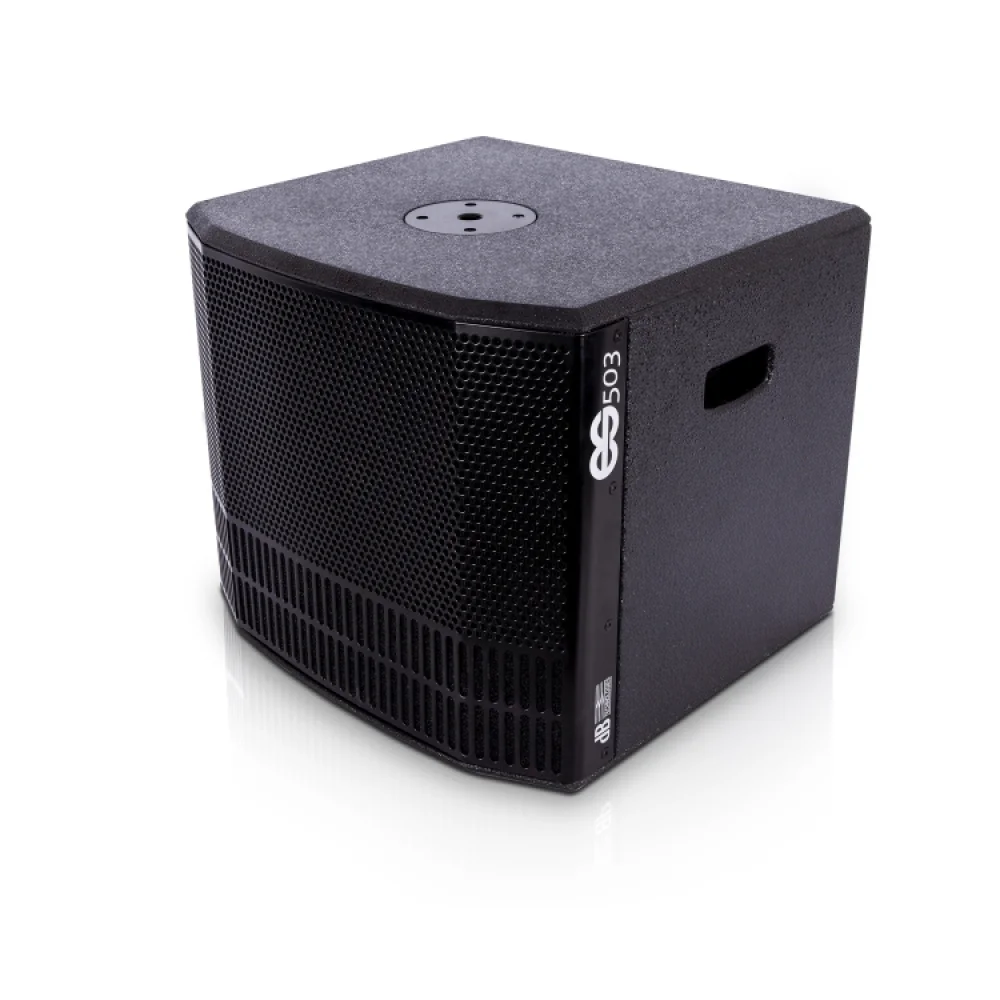

Width (Subwoofer): 465 mm (18.3 in)
Height (Subwoofer): 400 mm (15.7 in)
Depth (Subwoofer): 430 mm (16.9 in)
Weight (Top): 1.9Kg – 4.19lbs.
Weight (Subwoofer): 16.4Kg – 36.16lbs.
