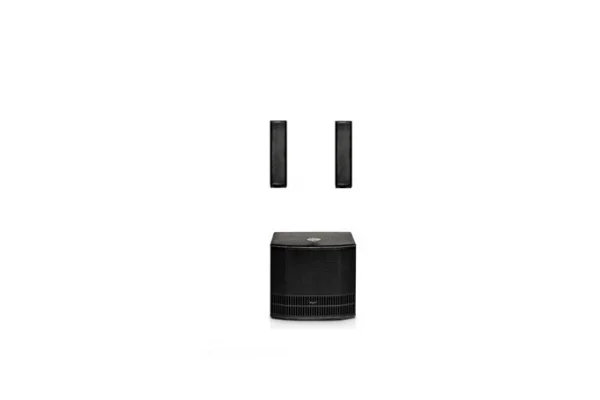

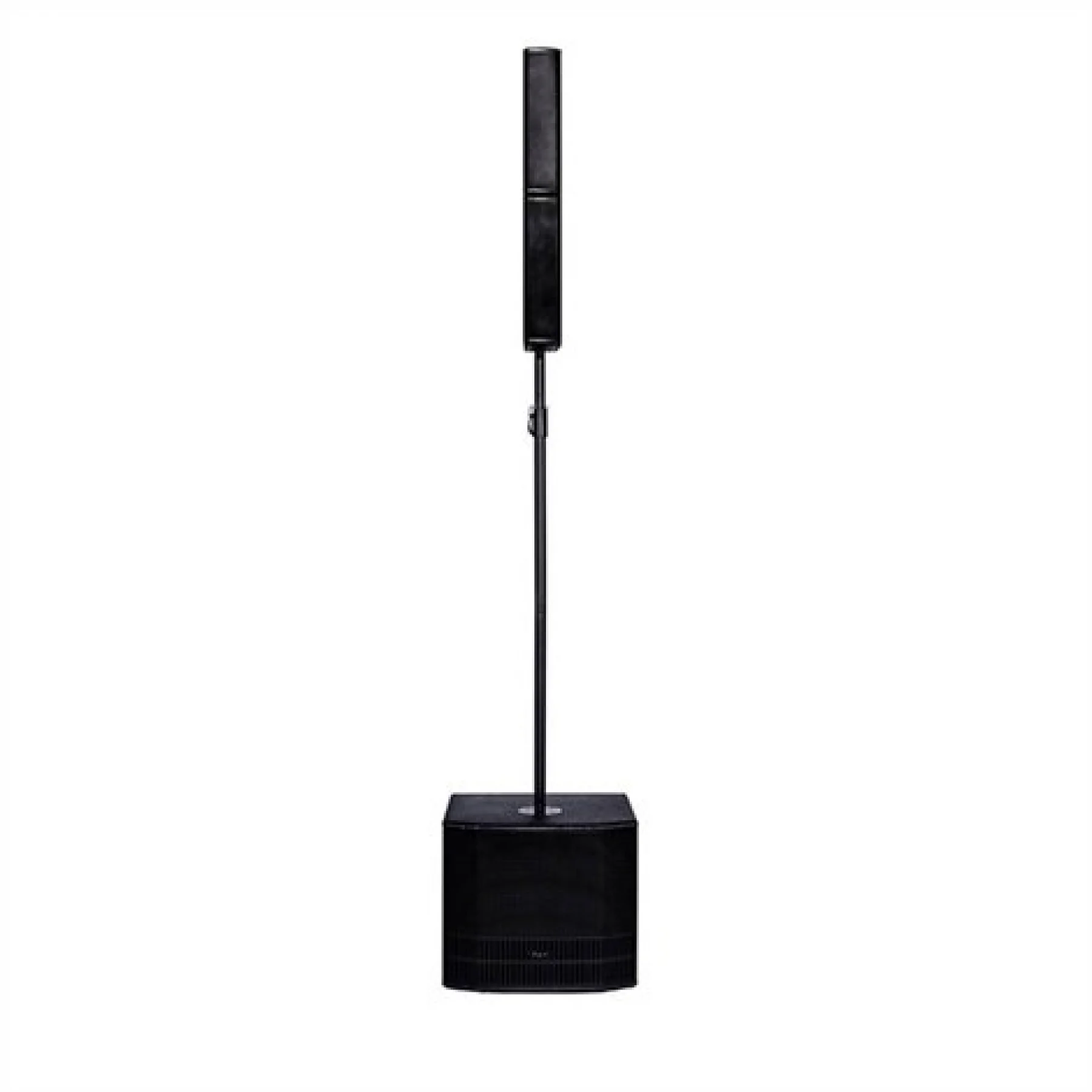

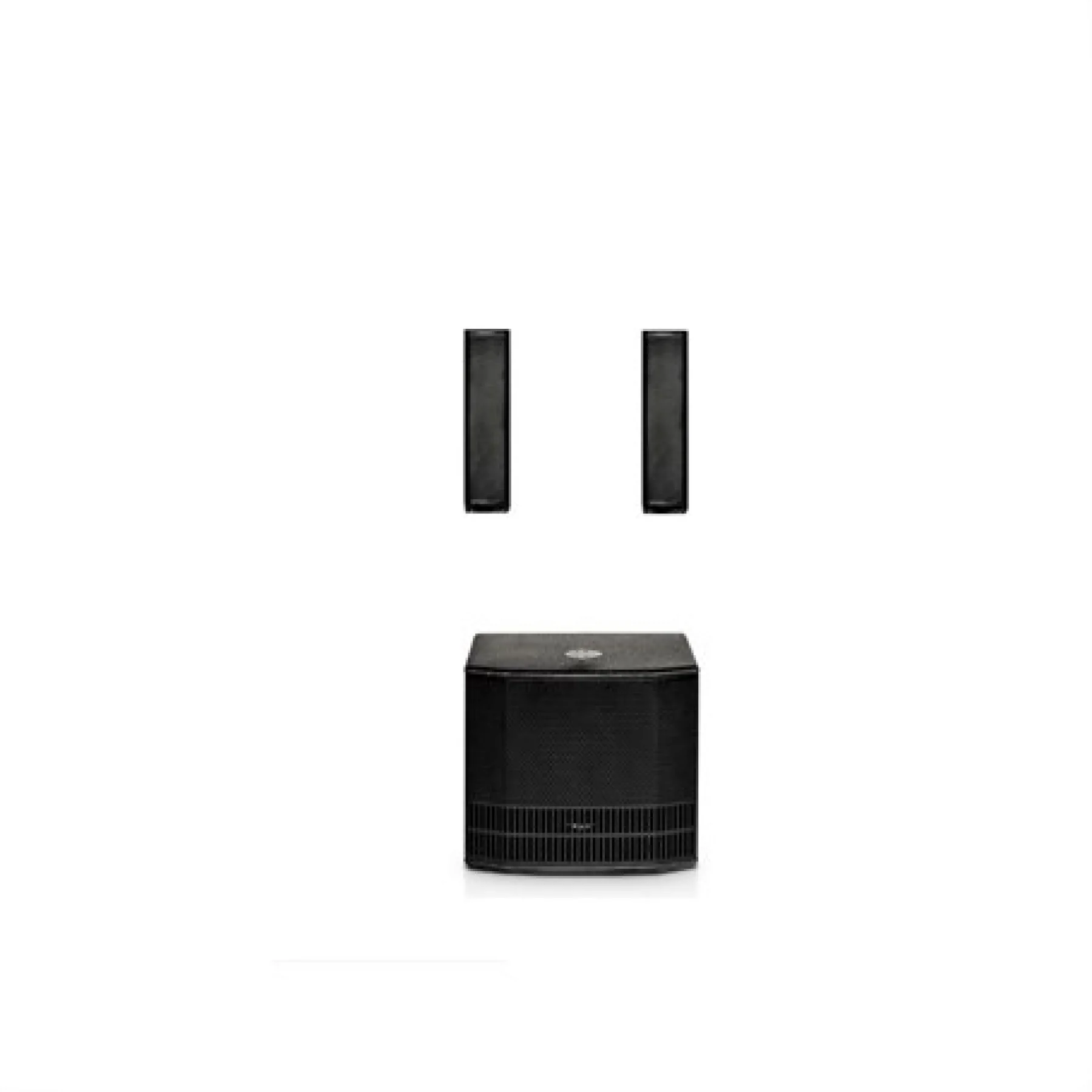

DB ES802 Vertical Array Biamp 1200W Amp. 124 dB
Technical Data
Acoustical data
Frequency Response [-10dB]: 37-15.000 Hz
Max SPL: 124 dB
MF - HF: 8x 3"
Type MF - HF: Neodymium
LF: 12"
Directivity: 95x65°
Amplifier
Amp Technology: Digipro® G3
Amp Class: Class-D
Power Amp: 1200 W
Power Supply: SMPS with PSU Auto-range
Power Connection: VDE socket
Cooling: Convection
Controls: 1x Rotary (presets) 1x Audio signal monitoring LED 1x Audio Limiter LED
Processor
Controller: DSP 24 Bit/48 kHz
System Presets: Factory presets
Limiter: Dual Active, Peak, RMS, Thermal
Crossover Frequency LF-HF: 206 Hz
Input
Mic/Instrument Channel: 1x Combo (XLR/Jack) balanced/unbalanced input, 1x RCA stereo input
Link Output: 1x XLR balanced output
Mechanics
Housing (Subwoofer): 15mm Black Painted Birch Plywood
Housing (Tops): Polypropylene PP
Handles: 2x lateral side (Subwoofer)
Width (Top): 95 mm (3.74 in)
Height (Top): 360 mm (13.98 in)
Depth (Top): 137 mm (5.39 in)
Width (Subwoofer): 465 mm (18.3 in)
Height (Subwoofer): 400 mm (15.7 in)
Depth (Subwoofer): 430 mm (16.9 in)
Weight (Top): 1.9Kg – 4.19lbs
Weight (Subwoofer): 16.4Kg – 36.16lbs
