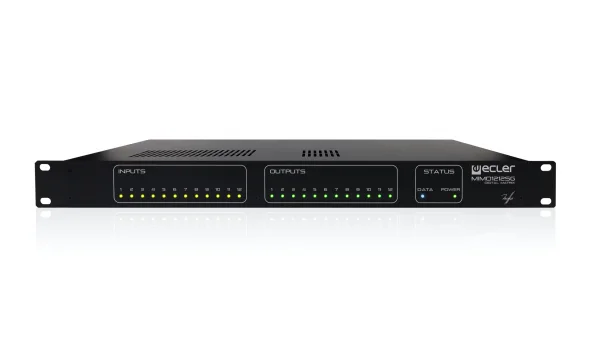

ECLER MIMO1212SG 12x12 | digital matrix | DSP
MIMO1212SG (MIMO1212 SINGLE) is an EclerNet digital audio device that keeps the heart and soul of the standard MIMO88, its main features and its audio quality, to become a simplified and cost-effective version (12x12) of this acclaimed digital matrix.
- 12x12 digital matrix (not expandable)
- Fully programmable and controllable via EclerNet software
- UCP (User Control Panels) remote control system, compatible with WPmSCREEN and third-party devices, such as computers, tablets, smartphones, etc.
- TP-NET protocol compatible, for third-party control systems integration
- DSP processing: signal generator, delays, full parametric EQ filters at inputs and outputs, inputs noise gate, level, mute, phase, vu-meters, outputs compressor / limiter, paging and ducking (priority & overriding),virtual and physical paging stations management, presets save & recovery, scheduled events triggering, etc.
- FREQUENCY SHIFTER function to avoid acoustic feedback, available in 4 inputs
Technicial Specifications
Processor
2 x 32/64bitAudio converters
Sampling rate
48kHz
Resolution
24bit AKM
Latency
<3.2ms
Frequency response
5Hz to 24kHz (-3dB)
Dynamic range
AD:110dB, DA: 115dBAnalogue audio input ports
Number of input ports
12, Mic/Line
Connection type
Terminal block (symmetrical)
Input sensitivity
-50dBV to +10dBV in 0.5dB step
Input impedanc
Balanced, >4kΩ
Max input level
+27dBV = +30dBu
THD + Noise
THD+Noise @ 1kHz, 0dBV input (line) <0.004%
THD+Noise @ 1kHz, -40dBV input (mic.) <0.008%
CMRR
65dB typ.
Phantom power
+42VDC, 5mA max. software switchedAnalogue audio output ports
Number of output ports
12, Line
Connection type
Terminal block (symmetrical)
Max output level
+18dBV = +21dBu
Crosstalk
Better than 90dB (100dB typ.)Connectivity
Ethernet
1 RJ45, Ethernet Base-Tx 10/100Mb Auto X-Over CAT5 up to 100m.
Serial port
RS-232
Programing and control
EclerNet manager (software) from v3.03r4 version, TPNET, UCP control panelsRemote control connections
Digital remote controls
Remote Bus: Over twisted pairs; up to 1km (see specific specs.)
GPIs
12, from 0 to 10VDC or TTL levelReal-time clock
Retention time
100 hours aprox. (ambient temperature dependant)
Accuracy
±1 minute / monthElectrical
Secondary power supply
+12VDC, 0,6A. max. (short circuit protected)
AC mains requirement
90-264VAC @ 47-63Hz
AC mains connector
IEC mains socket connector
Power consumption
75VAPhysical
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity
<90% HR
Installation options
19" rack format (1RU)
Optional accessories
WPa series control panels, WPTOUCH, MPAGE16
Dimensions
482.6 x 44 x 266.5 mm / 19.0 x 1.7 x 10.5 in. (WxHxD)
Weight
3.2 kg / 7.05 lb
Shipping dimensions
590 x 70 x 380 mm / 23.23 x 2.76 x 14.96 in. (WxHxD)
Shipping weight
4.5 kg / 9.92 lb
