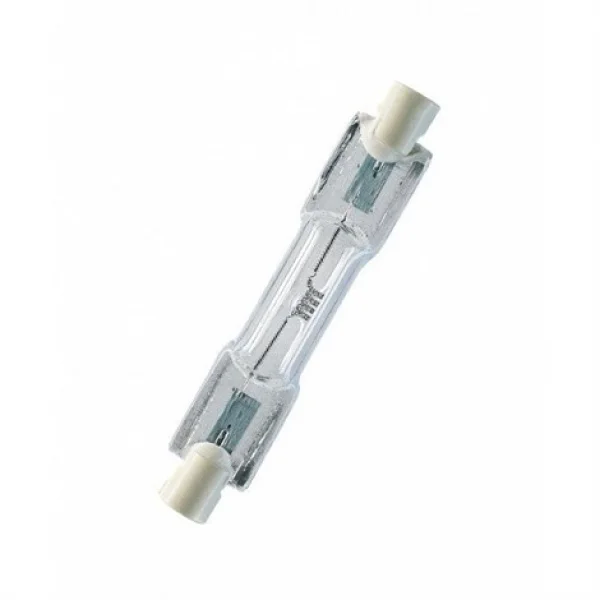

Osram/General 64571 800Watt, R7s, P2/13, Tungsten Halojen Çift Soketli Ampul
64571 800W 230V R7s 75h, Osram
Burning position horizontal
Sstl-Number 4739734
ANSI code DXX
LIF P2/13
Base (standard designation) R7s
Construction voltage 230V
Lamp voltage 230V
Rated wattage 800W
Diameter 17 mm
Filament length 20.00 mm
Length 74.90 mm
Lifespan 75 h
Luminous flux 21000 lm
Color temperature 3200K
Luminous efficacy 27 lm/W
Maximum permissible ambient temperature 350 °C
From their designs, halogen mains voltage lamps can be categorized as single-ended and double-ended lamps. Depending on the application, they are designed to operate on 230 V, 240 V or 120 V.
The color temperature of the lamps varies according to the application: 3,400K for maximum luminous efficacy, 3,200K for professional film and TV work, 3,000K or 2,900K for applications where long life is important.
Safety
To prevent personal injury or damage to property, halogen lamps may only be operated in suitable luminairesdesigned with suitable mechanisms (protective shields, grids, etc.) to ensure that in the event of a lamp bursting no parts/shards can escape and that during operation no ultraviolet radiation can escape. There must also be a warning sign to indicate that the lamps give off high levels of heat. Detailed information is available on request.
