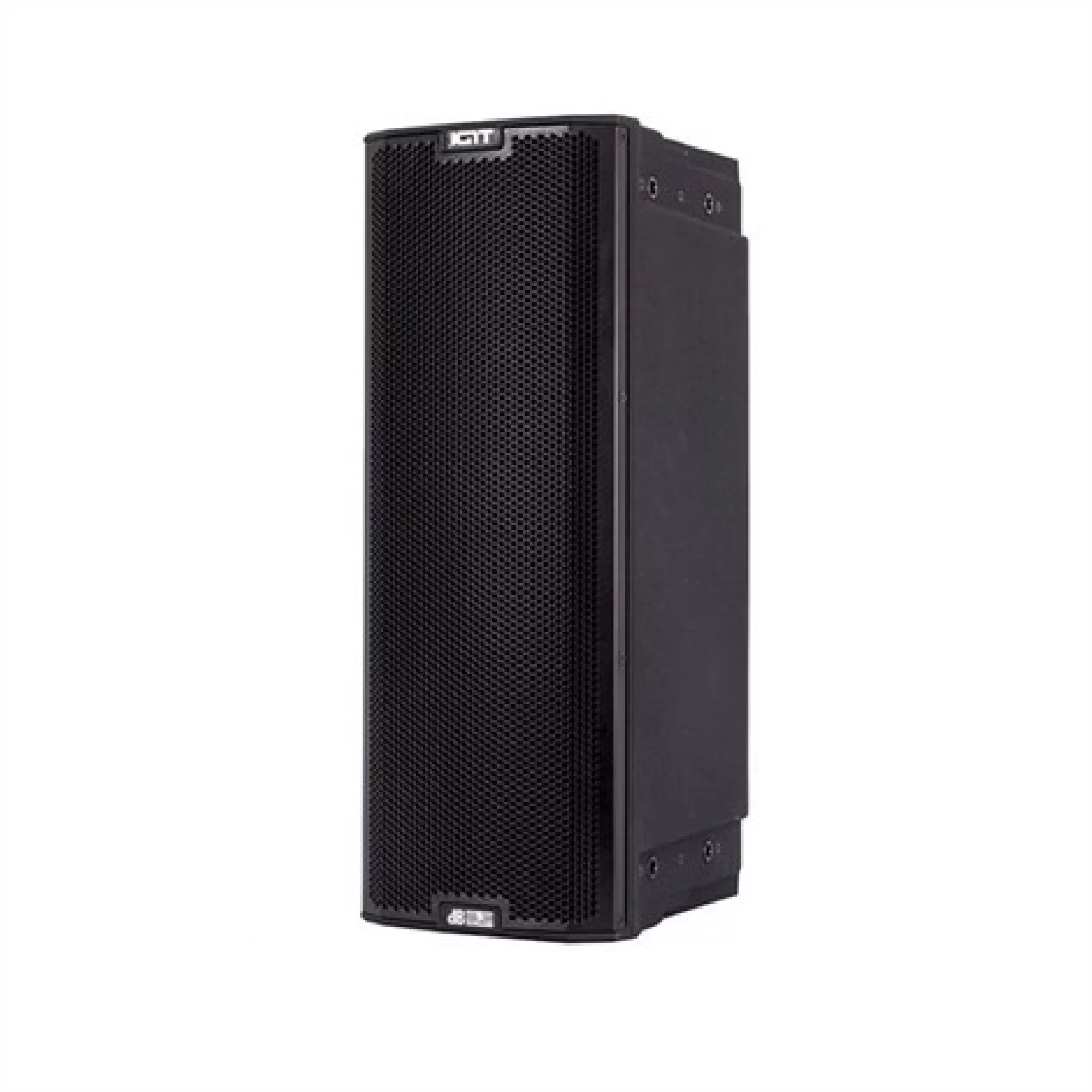

DB IG1T Active Speaker 2x6.5"/1" 800W
Technical Data
Speaker Type: 2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]: 85 - 20.000 Hz
Frequency Response [-6dB]: 92 - 19.200 Hz
Max SPL: 128 dB
HF: 1"
HF Voice Coil: 1.4"
Directivity (HxV): 100 x 80° (+15°/- 65°)
HF Type: Neodymium compression driver
Horn: Vertical asymmetric
Crossover Frequency: 2100 Hz
LF: 2x6.5”
LF Voice Coil: 1.5"
LF Type: Neodymium
Amplifier
Amp Technology: Digipro® G3
Amp Class: Class-D
Peak Power: 800 W
RMS Power: 400 W
User Interface: OLED display + rotative knob w/switch
Self-rotating display: Yes
Positioning: EPD (Element Position Detection)
Display Mirroring: Yes
Processor
Controller: DSP 56 bit
AD/DA Converter: 24bit/48kHz
System Presets: Factory presets + User defined
Limiter: Dual Active Peak, RMS, Thermal
Input
Signal Input: 1 x Combo IN (XLR + Jack 6.3mm)
Signal Out: 1 x XLR link OUT
USB connector: Yes - mini USB
Mechanics
Housing: Polypropylene PP reinforced
Grille: FULL /Invisible screws
Flyable: Yes
Handles: 1x on top / 1x on bottom
Pole Mount: Yes
Width: 195 mm (7.68 in)
Height: 536 mm (21.10 in)
Depth: 271 mm (10.67 in)
Weight: 10.6Kg (23.37 lbs.)
