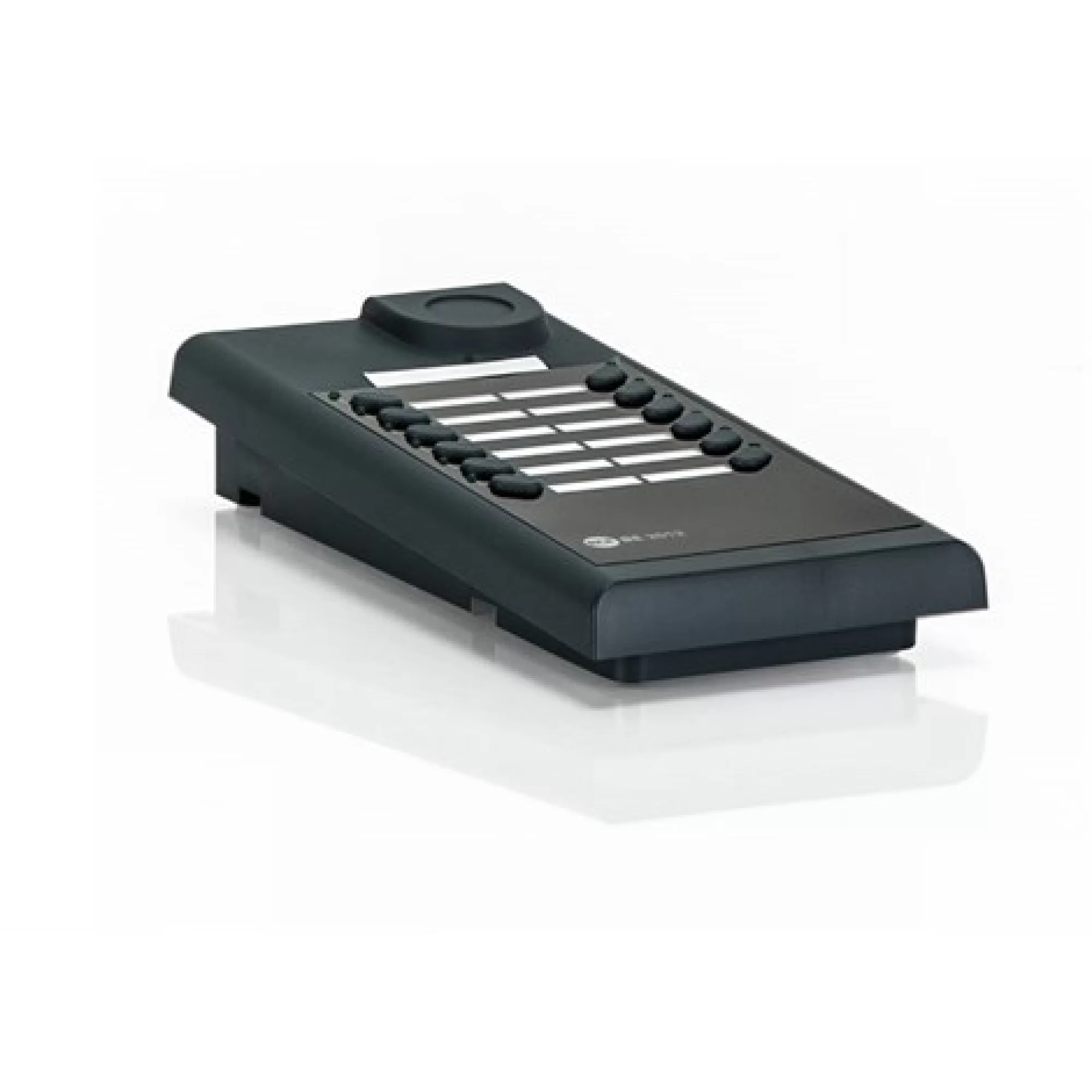

RCF BM-2012 Keypad
BE 2012 are 12-zone additional keyboards that need to be connected to a BM 2006 paging microphone. It is possible to link up to four BE 2012 extensions to each BM 2006 console, in order to reach the maximum system capability of 54 zones.
- 12 zone buttons
- Connection through flat cables on lateral ports
- Metal bracket for physical connection included
- Operating voltage:24 V dv (through BM 2006)
- Max. current draw:80 mA (a single BE 2012 keyboard only)
- Dimensions (w, h, d):108 mm, 55 mm, 240 mm
- Net weight:0.7 Kg
