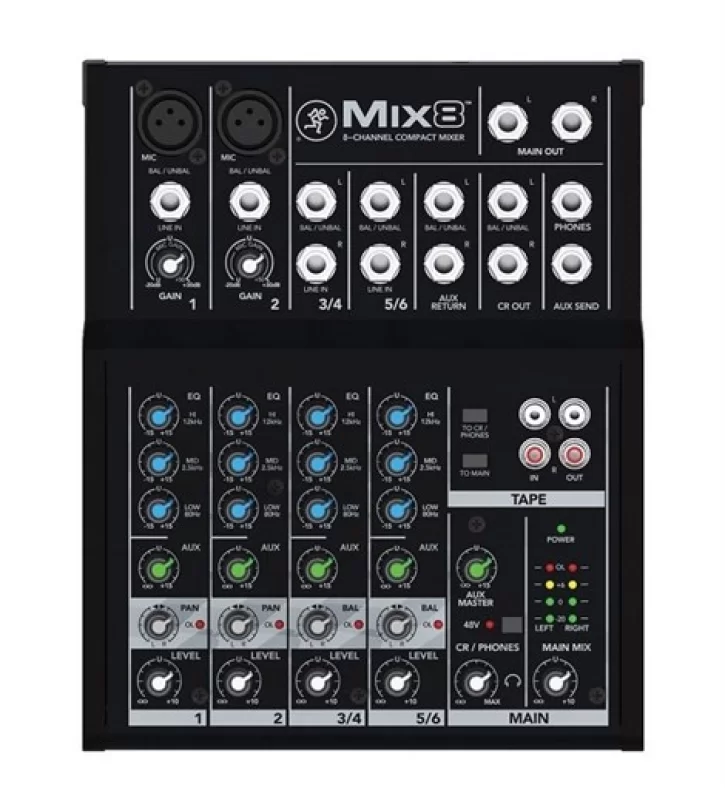

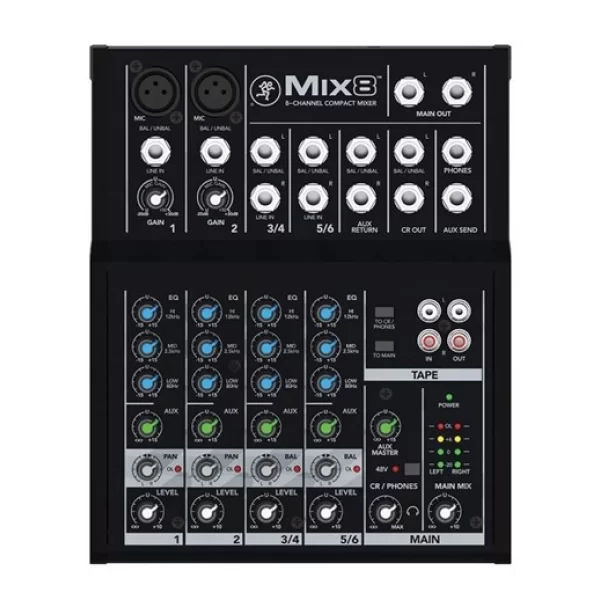

Mackie MIX-8 8 Kanal Deck Mikser
The Mackie Mix8 is an 8-channel compact mixer that features high quality components, a rugged metal chassis, and is designed for a variety of sound reinforcement applications. The mixer features two mic/line inputs with 48V phantom power, two stereo 1/4" line inputs, and stereo 1/4" aux send and return. It is capable of accommodating dynamic and condenser microphones, keyboards, DJ setups, portable music players, and more.
Each of the two mic/line inputs is equipped with XLR and 1/4" connectors, a dedicated 3-band EQ, aux send, pan, level control and an LED overload indicator. The two stereo 1/4" line inputs each feature an aux send, 3-band EQ, level control, balance control and also have an LED overload indicator.
- 2 Mic/Line Inputs with 3-Band EQ
- 2 Stereo 1/4" Line Inputs with 3-Band EQ
- 1 Aux Send with Stereo 1/4 Returns
- Stereo RCA Tape Inputs & Outputs
- Pan, Level & Overload Indication
- 48V for Condenser Mics
- Dedicated Stereo RCA Inputs
- Headphone & Stereo Control Room Outs
- Compact & Portable
Noise | (20 Hz – 20 kHz bandwidth, 150 ohm source impedance, EIN) All outputs, master levels and channel levels off–100 dBu All outputs, master levels unity, all channel levels off –90 dBu All outputs, master levels unity, 1 channel level unity –85 dBu |
THD+N | (20 Hz – 30 kHz bandwidth) Mic input to main output <0.25% @ +4 dBu output |
Attenuation and Crosstalk | (20 Hz – 20 kHz bandwidth) Inputs to outputs @1 kHz–85 dB Main mix off @1 kHz–75 dB |
Frequency Response | Mic Input to Any Output (Gain at Unity): +0, –1 dB, 20 Hz to 30 kHz |
Equivalent Input Noise | -125 dBu, (mic in to insert send out, max gain) |
Common Mode Rejection Ratio | 1 kHz better than –70 dB, (mic in to insert send out, max gain) |
Impedance | Mic In: 3.8 kohms All Other Inputs: 10 kohms or greater Tape Out: 1 kohms Phones: 22 ohms All Other Outputs: 120 ohms unbalanced, 240 ohms balanced |
Maximum Level | Mic Inputs (XLR): +19 dBu Aux Return In: +16 dBu All Other Inputs: +21 dBu All Outputs: +21 dBu |
Equalization | High Shelving: ±15 dB @ 12 kHz Mid Peaking:±15 dB @ 2.5 kHz Low Shelving: ±15 dB @ 80 Hz Low Cut Filter: 18 dB/octave, –3 dB @ 75 Hz |
Power Requirements | Power Connection: 2-pin DC connector [US], 3-pin DC connector [EU] Input:120 VAC, 60 Hz [US], 230 VAC, 50/60 Hz [EU] Output: 18 VAC, 600 mA |
Dimensions | 2.1 x 7.8 x 9.6" (53 x 198 x 244 mm) |
Weight | 2.5 lb (1.1 kg) |
