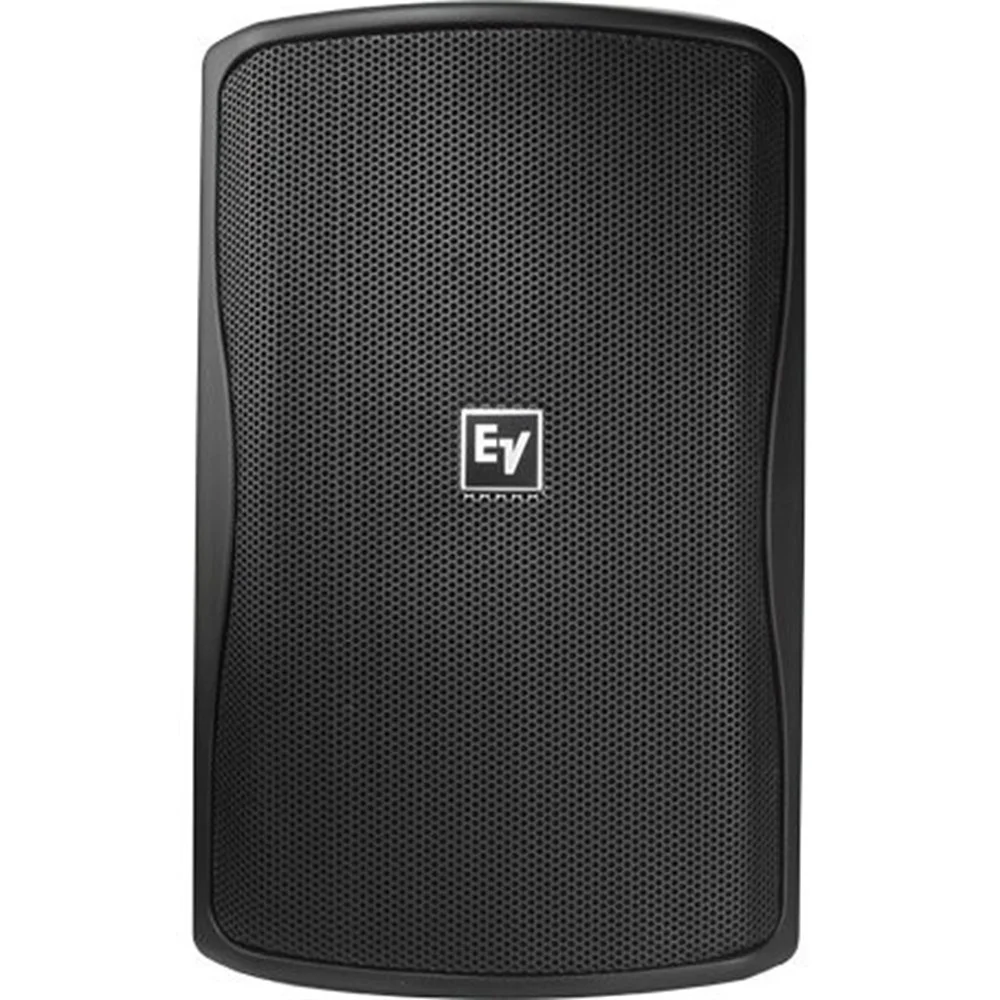

Name: Electro Voice ZX1İ-90 8" Installation Pasif Hoparlör, 2-Way, 200 W, 90°X50°
Brand: Electro Voice
SKU: Electrovoice Zx1İ-90

Electro Voice ZX1İ-90 8" Installation Pasif Hoparlör, 2-Way, 200 W, 90°X50°

Barcode: 2242005714621

Brand: Electro Voice

Category: Wall Speakers

Product Grup: Speakers

Speaker Type: Pasif Hoparlörler

Speaker Size: 8"

The product is out of stock.

Fast Shipping

Indoor/outdoor design
Ideal for installed mains, fills, or distributed sound
Velocity-compensated port for exceptional LF
Long-excursion weather-treated EV8L woofer
1.25-inch DH2005 titanium HF compression driver
Choice of 90º x 50º or 100º x 100º rotatable horn
Passive crossover with full-band overload protection
Also available in 70/100 volt transformer version with Electro-Voice PATENTED ASC™ Automatic Saturation Compensation
High sensitivity, 123 dB maximum SPL
Power handling: 200 W continuous, 800 W peak
Compact high-impact polypropylene enclosure
Integrated QuickSAM™ heavy-duty Strong-Arm Mounting bracket
Paintable black or white finish

Color	Black, white
Input Connections	4-pin Phoenix
Nominal Impedance	8 Ω
Speaker Type	Full-range, Mid-High, Two-Way
Frequency Response (-3 dB)	60 - 20000 Hz
Frequency Response (-10 dB)	48 - 20000 Hz
Internal Crossover	Yes
Recommended High-Pass Frequency	40 Hz
Sensitivity 1 W/1 m	94 dB
Max. SPL/1m (calc)	123 dB
Coverage (Nominal -6 dB) H	90/100 ° Rotatable
Coverage (Nominal -6 dB) V	50/100 ° Rotatable
Rotatable Horn	Yes
System Power Handling (Continuous/Program/Peak)	200//800 Watts
LF Transducer	8-inch EV8L
HF Transducer	1.25-inch DH2005
Crossover Frequency	1700 Hz
Minimum Impedance	6 Ω
Enclosure Material	High Impact Polystyrene
Flying	Yes
Outdoor	Yes
Grill	Polyester Powder Coated, 18GA Galvanized Steel
Height	451 mm (17.76")
Width	282 mm (11.1")
Depth	263 mm (10.35")
Weight Net	8.4 kg (18.52 lbs)
