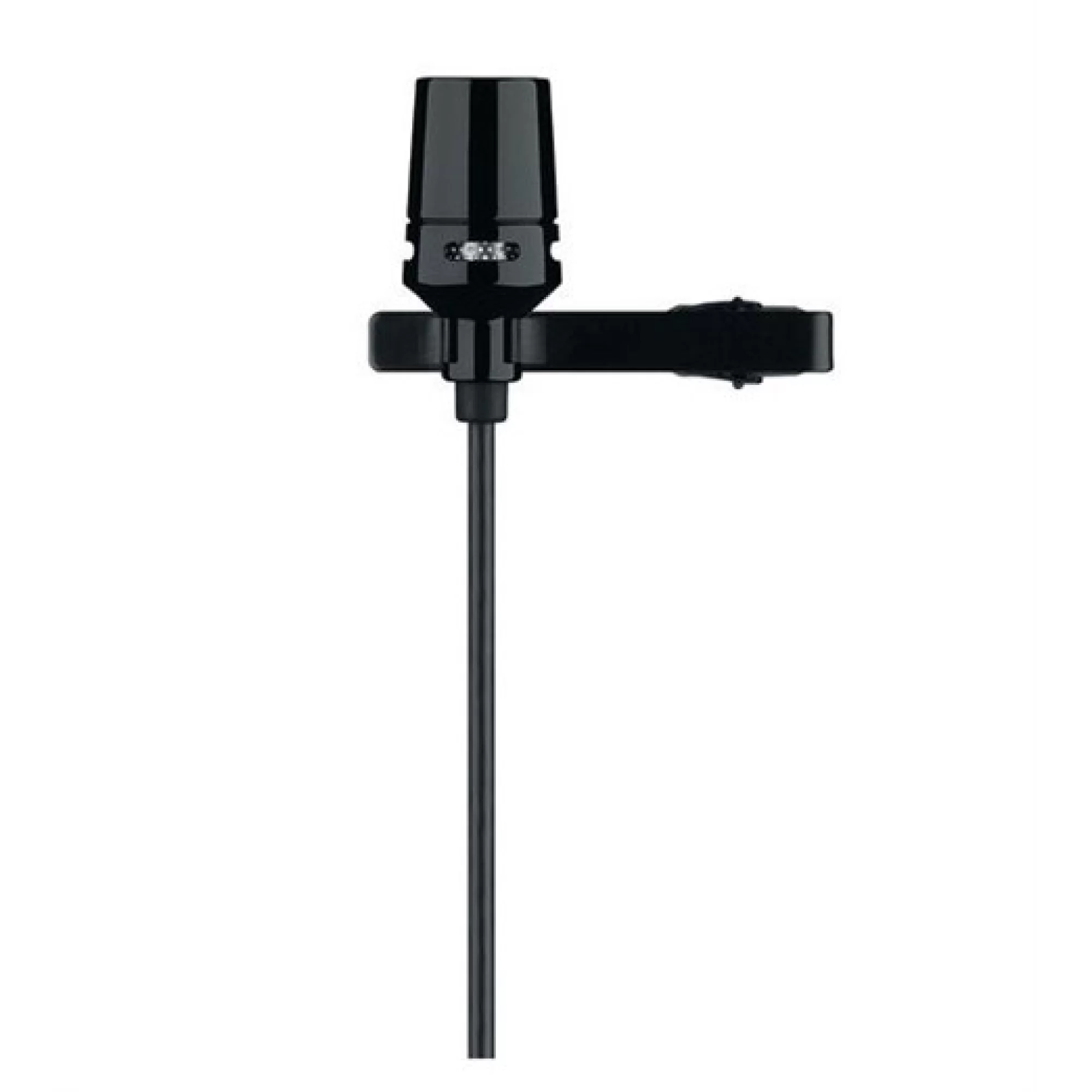

ShureCVL Centraverse Lavalier Condenser Microphone
- ptimized for Speaking
- Cardioid Polar Pattern
- Miniature Design
- Includes Tie Clip & Windscreen
The CVL Centraverse Lavalier Condenser Microphone from Shure is a miniature lavalier condenser microphone that is optimized for speech and vocal performance. A tie clip and windscreen are included.
Type | Electret condenser |
Frequency Response | 50 Hz to 20 kHz |
Polar Pattern | Cardioid |
Output Impedance | 600 Ω @ 1 kHz, typical |
Audio Output Level | -43.5 dBV/Pa |
Signal to Noise Ratio | 72 dB @ 1 kHz |
Maximum SPL | 139 dB, @ 1 kHz (1,000 Ω load) |
Dynamic Range | 117 dB, @ 1 kHz (1,000 Ω load) |
Output Noise | 22 dB, typical, A-weighted |
Power Requirements | +5 V DC (nominal), 10 V maximum (DC bias) |
Polarity | Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1 |
Cable | 50" (1.3 m) |
Connector | TA4F / TQG |
Weight | 0.88 oz (25 g) |
