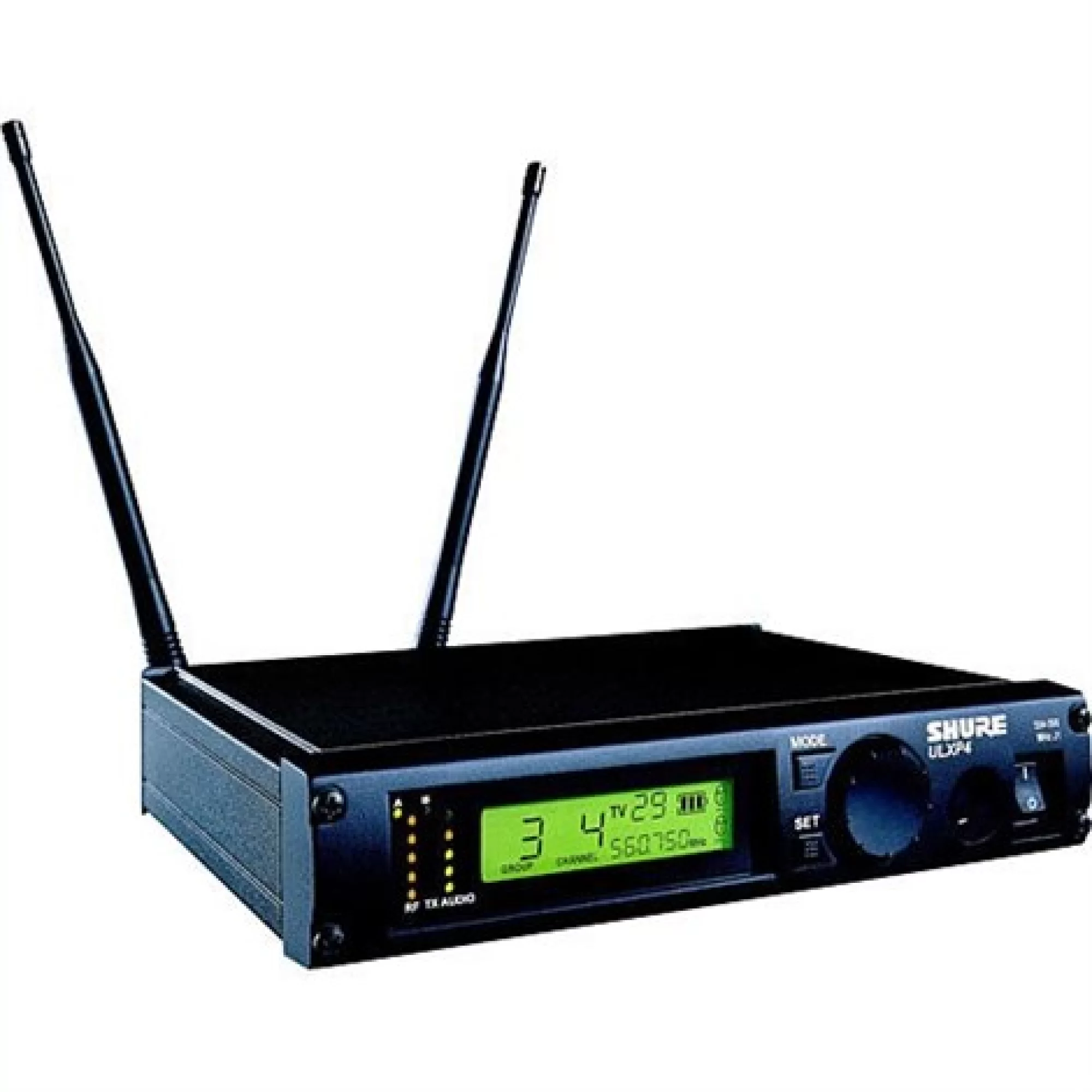

Shure ULXP4
The Shure ULX4P Receiver offers an exceptional value in both performance and price, for both working musicians and sound installers. The expanded feature set of the ULXP4 wireless receiver, with advanced settings and controls including lockable settings and group scan, offers a direct path to full, clear audio signals.
Frekans
| Type of Receiver | ULXP4 Professional Rack/Table-Top Mount Receiver |
| RF Carrier Frequency Range | 554.000 to 865.000 MHz |
| Frequency Response | 25 Hz - 15 kHz, (±2 dB) |
| Signal-to-Noise Ratio | Greater Than 90 dB |
| Approx. Working Range | 300 (100 m) NOTE: Actual working range depends on RF signal absorption, reflection, and interference |
| Type of Outputs | Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd (Both Outputs Feature: Voltage, Current and Phantom Power Protection) |
| Headphone Monitoring | No |
| Power Requirements | 14 - 18 VDC (negative ground), 550 mA External Power Supply - PS40, Included, Now with Locking DC Connector! |
| Battery Type/Approx. Life | Not Applicable, Unit Does Not Operate on Batteries |
| # Of Channels | Over 1400 User Selectable Frequencies (Channel Group / M1) |
| Display | Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning. |
| Mounting Options | Rack/Table-Top Mount 1/2 Rack Space |
| Antenna Type | Remotable 1/2 Wave, Rear Mounted |
| Dimensions | 1.72 x 8.56 x 6.88" (43 x 214 x 172 mm) HxWxD |
| Weight | 2.44 lb (1105 g) |
