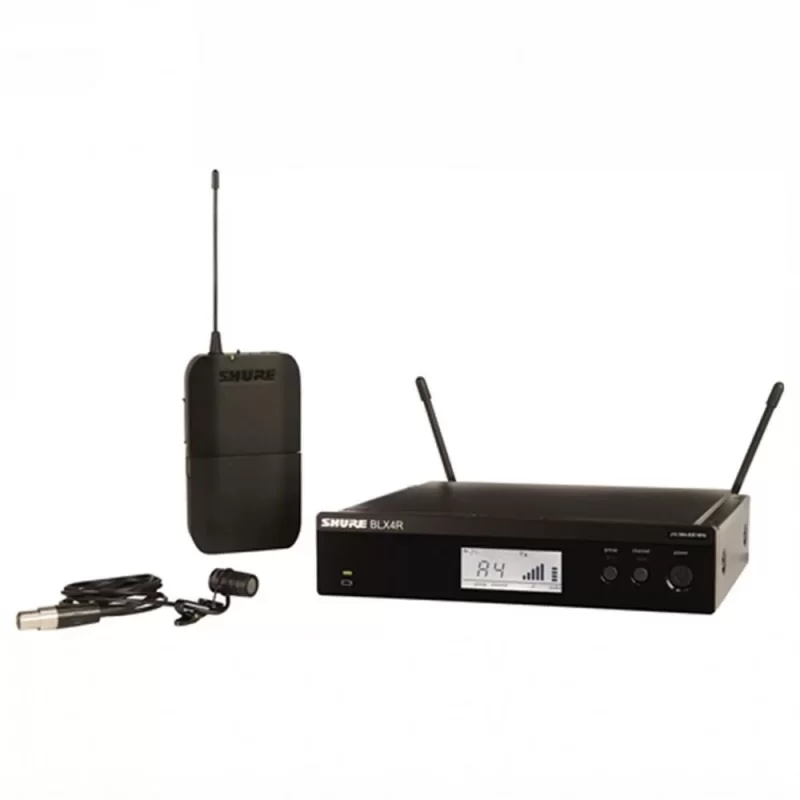

mShure BLX14RE/W85
- WL185 Cardioid Lavalier Mic
- BLX1 Bodypack Transmitter
- Rackmountable BLX4R Receiver
- 300 Range of Operation
- One-Touch QuickScan Frequency Selection
- 1x XLR & 1x 1/4 Instrument Outputs
- Includes 2x AA Batteries
Frequency
- H8 - 518 / 542 Mhz
- J10 - 584 / 608 Mhz
- K12 - 614 / 638 Mhz
- M15 - 662 / 686 Mhz
BLX4 Single Channel Receiver
| Output | 1x XLR Output
1x 1/4" (6.35 mm) Output |
| Output Impedance | XLR: 200 Ω
1/4": 50 Ω |
| Audio Output Level | XLR Connector: -20.5 dBV into 100kΩ Load (Reference +/-33 kHz with 1 kHz Tone)
1/4": -13 dBV into 100kΩ Load (Reference +/-33 kHz with 1 kHz Tone) |
| RF Sensitivity | -105 dBm for 12 dB SINAD, Typical |
| Image Rejection | >50 dB, Typical |
| Housing | Molded ABS, Steel |
| Power Requirement | 12 to 15 V DC @ 260 mA, Supplied by External Power Supply (Tip Positive) |
| Dimensions (H x W x D) | 1.9 x 7.7 x 6.4" (50 x 198 x 163) |
| Weight | 2.2 lb (998 g) |
WL185 Cardioid Lavalier Microphone
| Transducer | Electret Bias |
| Polar Pattern | Cardioid |
| Frequency Response | 50Hz to 17kHz |
| Dynamic Range (Typical) | 102dB |
| Signal-to-Noise Ratio | 18dB SPL (A-weighted) |
| Maximum Input Sound Level | 130dB |
| Power Requirements | Regulated Nominal +5 Vdc (2 Vdc to 10 Vdc) |
| Output Impedance | 28 ohms |
| Output Connectors | TA4-Female |
| Pad | No |
| Low Frequency Roll-Off | No |
| Dimensions | Cable length: 4 foot (1.2 meter) |
BLX1 Body Pack Transmitter
| Audio Input | Gain: -16 dBV (Maximum),10 dBV (Minimum |
| Gain Adjustment Range | 26 dB |
| Input Impedance | 1 MΩ |
| RF Output | 10 mW, Typical |
| Housing | Molded ABS |
| Power Requirement | 2x LR6 AA Batteries, 1.5 V Alkaline |
| Battery Life | Up to 14 Hours |
| Dimensions (H x W x D) | 4.3 x 2.5 x 0.8" (110 x 64 x 21 mm) |
| Weight | 2.6 oz (75 g) |
