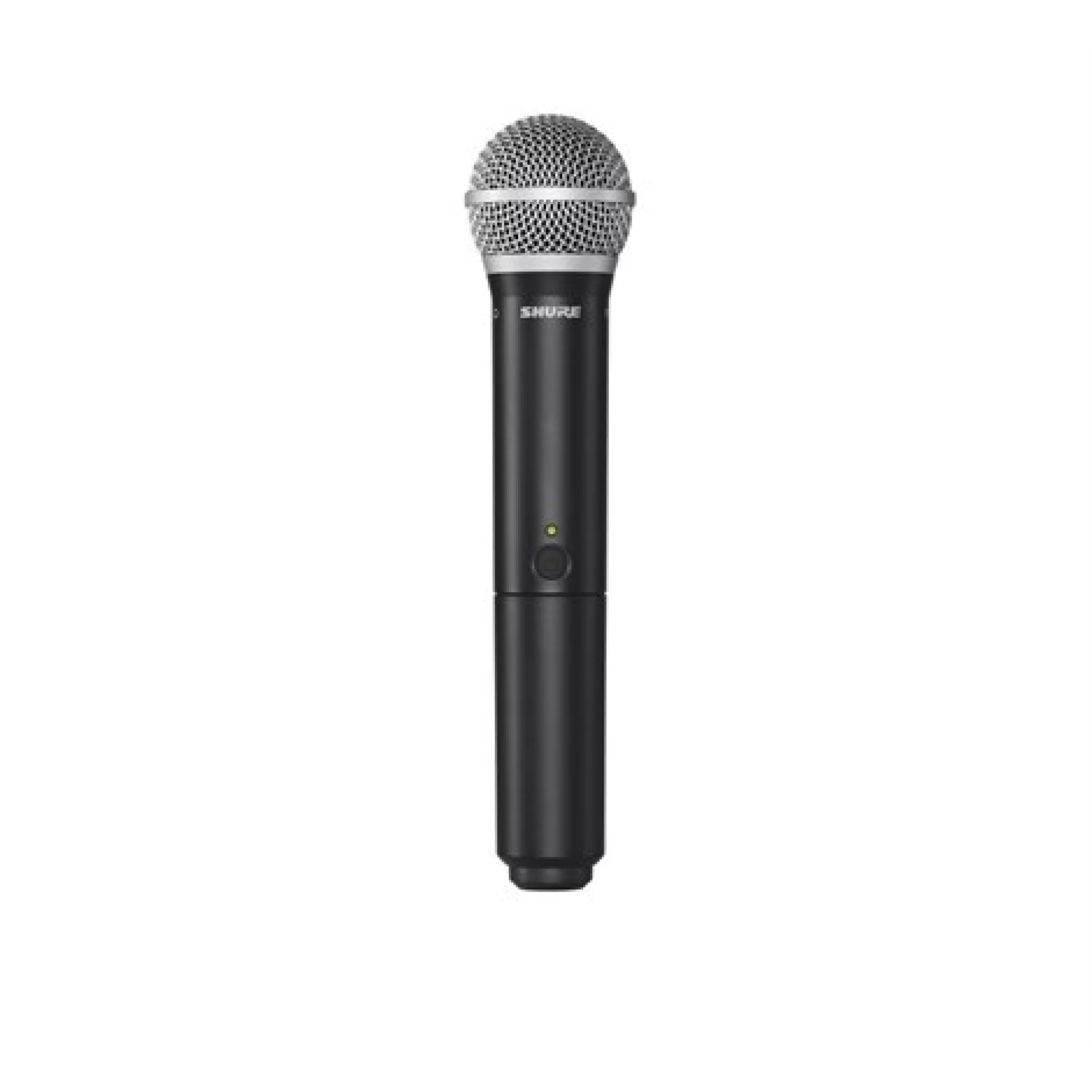

Shure BLX2/PG58
The BLX2 Handheld Transmitter with PG58 Microphone from Shure is set to Shure s H8 frequency band between 518 to 542 MHz MHz and provides a 300 line of sight operating range. It is powered by two included AA batteries for up to 14 hours. It is compatible with Shure BLX wireless systems set to the same frequency band. A padded zipper case and microphone clip are included.
- For Use with BLX Wireless Systems
- PG58 Microphone
- 300 Operating Range
- Includes 2x AA Batteries
- 14 Hours of Battery Life
Frekans
- H8 - 518 / 542 Mhz
- J10 - 584 / 608 Mhz
- K12 - 614 / 638 Mhz
- M15 - 662 / 686 Mhz
BLX2 Handheld Transmitter / PG58 Microphone
|
Audio Input Level | 0 dB Gain: -20 dBV Maximum -10 dB Gain: -10 dBV Maximum |
Gain Adjustment Range | 10 dB |
RF Output | 10 mW, Typical (Varies by Region) |
Power Requirement | 2x LR6 AA Batteries, 1.5 V Alkaline |
Housing | Molded ABS |
Dimensions (Ø x L) | 2.1 x 8.8" (53 x 224 mm) |
Weight | 7.7 oz (218 g) |
|
Type | Dynamic (Moving Coil) |
Polar Pattern | Cardioid |
Frequency Response | 60 Hz to 15 kHz |
Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of microphone output connector |
Sensitivity | -53 dBV/Pa, (2.2 mV), 1 Pascal=94 dB SPL (@ 1 kHz) |
Electromagnetic Hum Sensitivity | 26 dB equivalent SPL in a 1 millioersted field (60 Hz) |
Temperature Range | -20 to 153°F (-29 to 57°C) |
Relative Humidity | 0 to 95% |
