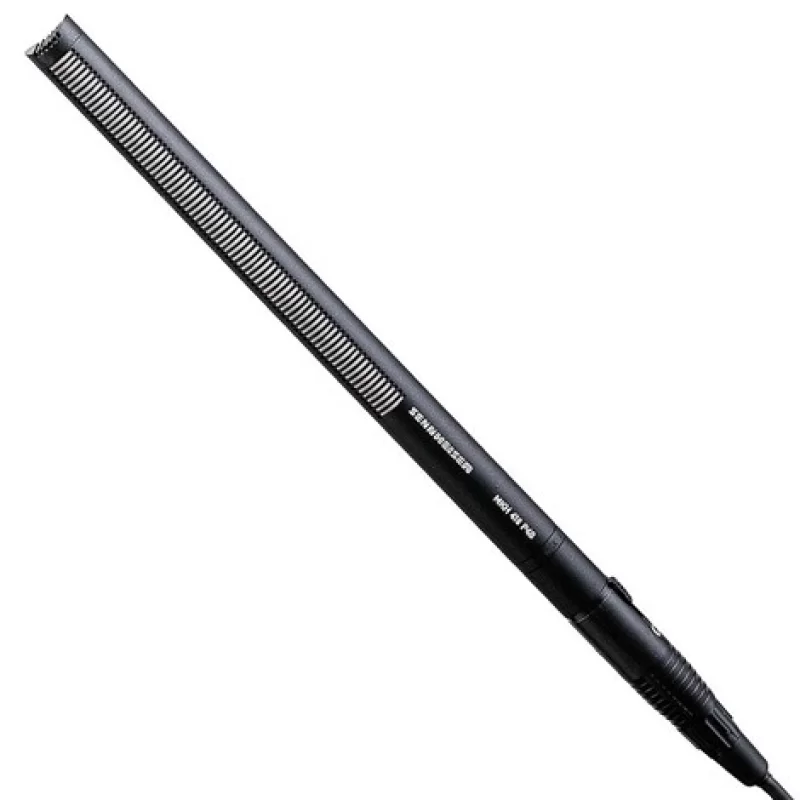

The MKH 416 is a short gun interference tube microphone. Its excellent directivity and compact design, high consonant articulation and feedback rejection make the MKH 416 a superb all-round microphone for film, radio and television, especially
for outside broadcast applications.
Increased directivity due to interference tube principle
Very low inherent self-noise
High sensitivity
Transformerless and fully floating balanced output
Rugged, suitable for adverse climatic conditions
Matt black all-metal body
| Dimensions | Ø 19 x 250 mm |
|---|---|
| Frequency response (microphone) | 40.....20000 Hz |
| Transducer principle (Microphone) | RF condenser microphone |
| Pick-up pattern | super-cardioid/lobar |
| Sensitivity in free field, no load (1kHz) | 25 mV/Pa +- 1 dB |
| Nominal impedance | 25 Ohm |
| Min. terminating impedance | 800 Ohm |
| Equivalent noise level | 13 dB |
| Equivalent noise level weighted as per CCIR 468-3 | 24 dB |
| Maximum sound pressure level (passiv) | 130 dB |
| Current consumption | 2 mA |
| Voltage | 48 +- 4 V Phantom |
