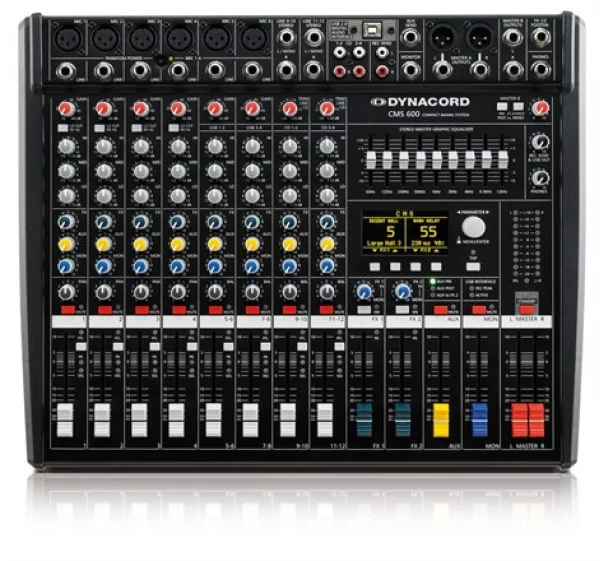

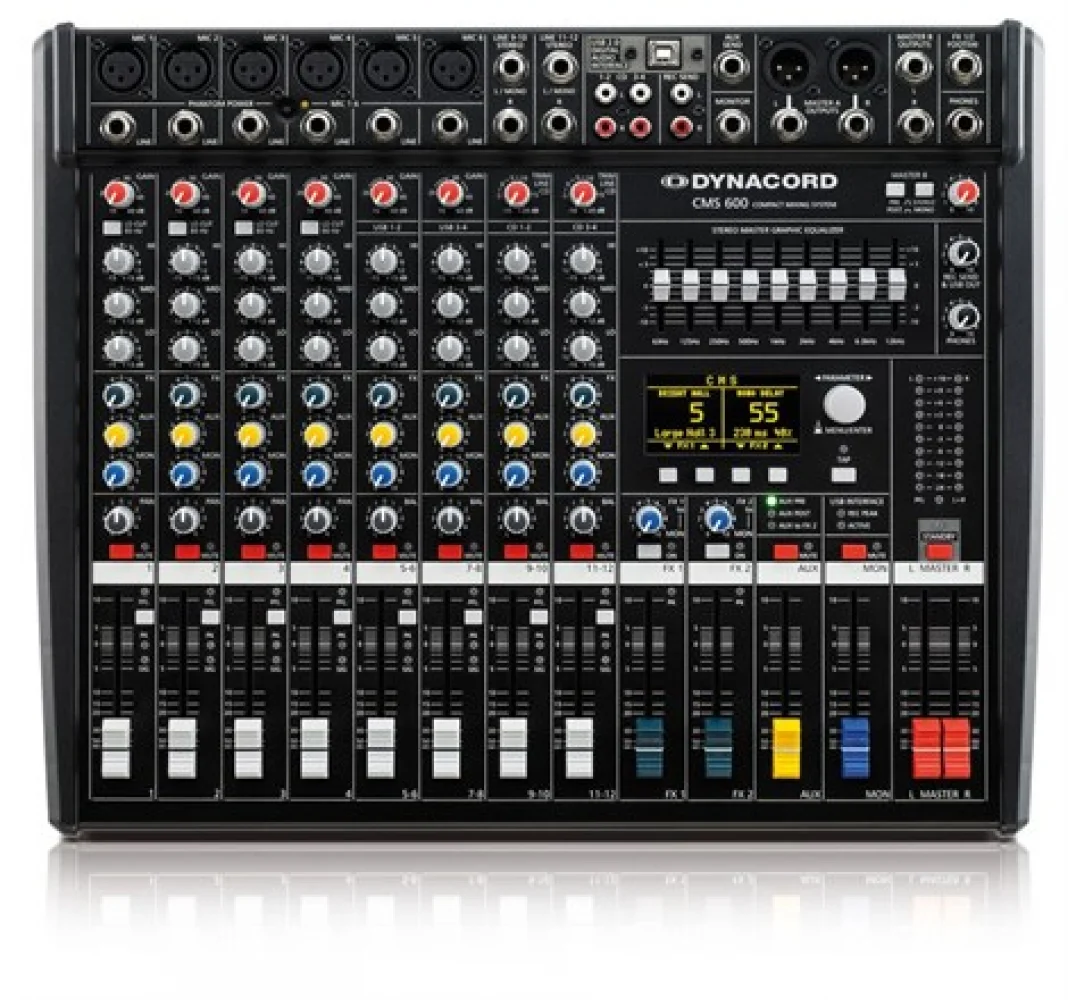

Dynacord CMS 600-3 6+2 Kanal Live Mixer

The product is out of stock.
Fast Shipping


Being light and compact, it poses no transport problems. The CMS 600-3 mixer is also especially well suited to fixed installation.

Performance without compromise:

  • first-class components (e.g. faders and potentiometers from ALPS)
  • an intuitive, user-friendly mixer section
  • two editable digital effects devices – each with 100 presets and 20 user memories
  • a professional 4xIN / 4xOUT digital interface (USB) to connect a PC or Mac
  • a stereo equalizer for the main mix
  • a large, contrast-rich OLED display


The mixer section
The distinctive feature of the mixer section is the 4+4 channel configuration. In addition to the classic six mono + two stereo analogue inputs, the CMS boasts two stereo digital inputs via USB. These inputs – when occupied – are automatically routed to channels 5-6 and 7-8.
This means four fully-featured stereo channels are available – a fact that will particularly please DJs.

8 channel strips comprising:

  • 4 mic/line input channels
  • 2 mic/stereo USB ("super") channels
  • 2 stereo line channels


Microphone inputs 1-6 are each equipped with a Gain control and switchable phantom power, whilst channels 9/10 and 11/12 have a Trim control. Channels 1-4 possess a switchable low-cut filter that intervenes at 80 Hz. All channels boast a 3-band EQ with Hi, Mid & Low controls. Each channel offers three sends: FX (post fader), AUX (switchable globally pre-/post-fader) and Monitor (pre-fader). Also present in each channel are a Balance/Pan control, a Mute and PFL switch, and a volume fader with Peak and Signal display.




Part Number

F01U213891 CMS 600-3


Channels (Mono + Stereo)

4 +2 + 2


Auxiliarys (AUX, MON)

Pre/Post switchable, Pre


Power Consumption, at 1/8 maximum output power, 4 Ohms

35 W


Net Weight

5.8 kg


Dimensions (W x H x D), mm

416.9 x 109.6 x 347.8


Optional Accessories

RMK-600-3 (Rack Mount Kit for CMS 600-3)


Optional Accessories

FS 11 (Footswitch with LED)


Optional Accessories

Carrying Bag for CMS 600-3


complete specifications

see download section, Manual
