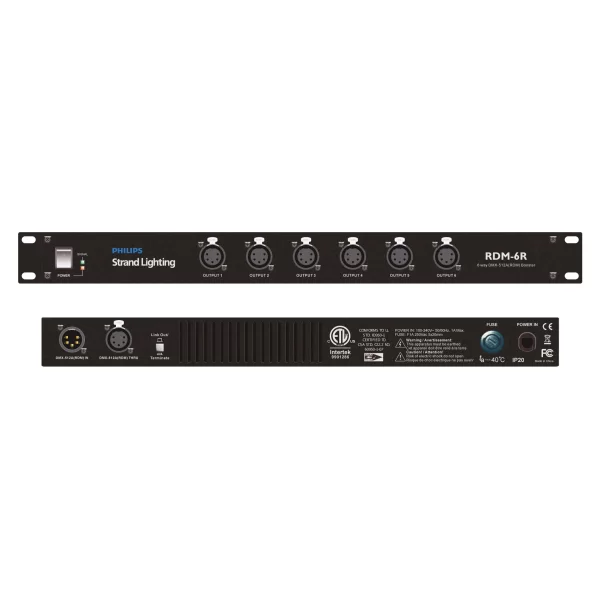

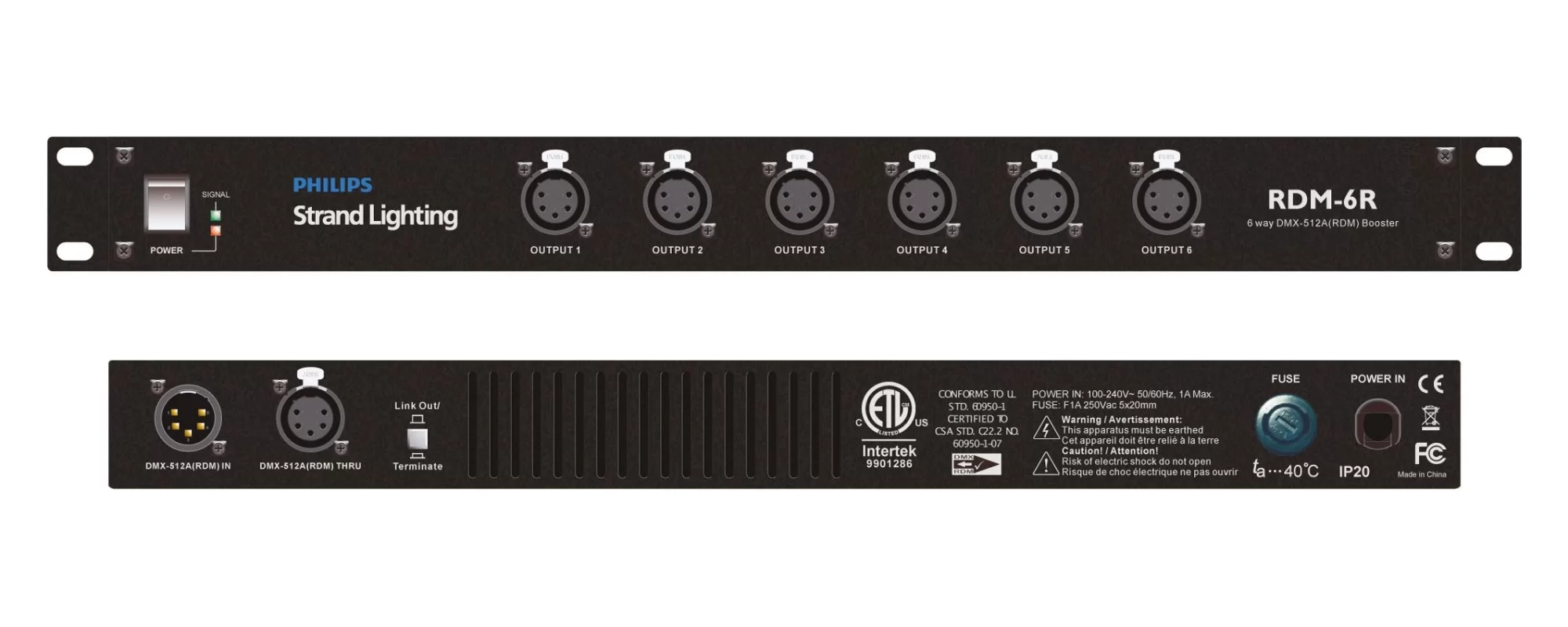

Strand Lighting RDM6R Dmx Splitter 1:6, 3 pin XLR
PHYSICALLY SPECIFICATOPNS:
Width : 483 mm
Height : 4,44 mm
Depth : 244mm
Weigh : 3,5 Kg
Input : 3 Pin XLR MALE
Output : 3 Pin XLR FMALE
ELECTRICAL SPECIFICATIONS:
Supply voltage : 220-230 VAC 50Hz
Standby Current : 700 mA
Type Current : 730 mA
Max. Current : 1220 mA
Protocol Name : EIA-485
Distance : 250kbps @ 250 meter
Cable : 110 Ohm impedance 1.5mm diameter shielded cable
Pin Configuration
Pin 1 - Ground (shield)
Pin 2 - Data complement (Data -)
Pin 3 - Data true (Data +)
