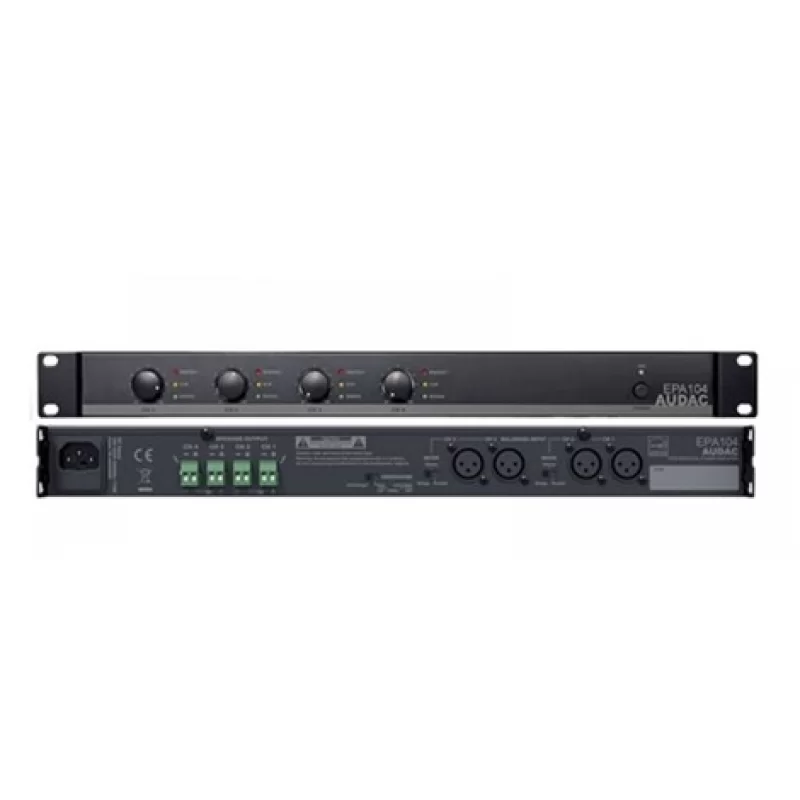

AUDAC EPA104 Power Amplifier 4x100 Watt/4 ohm
This energy efficient stereo amplifier will automatically switch to a standby mode when no audio signals are detected (less than 1Watt power consumption in standby mode).
Their weight and compact size makes these single rack space amplifiers ideal for both fixed and mobile installations. Their use of Class-D technology ensures excellent efficiency as well as outstanding sound quality. Thanks to the complete passively cooled entity only a minimal of maintenance is needed, while ensuring maximum reliability. The quad channel construction consists of four channels with the possibility to use two independent stereos. In combination with the integrated active crossover network, it offers a complete solution for compact stereo applications with a bass cabinet. Various specific functions and advanced circuitry guarantees an optimal protection against DC malfunctioning, short circuit, overheating and overload. Signal input connections are integrated with balanced XLR connectors, and signal link through is possible using the XLR output connectors. Outputs are connected using terminal block connectors.
| SYSTEM SPECIFICATIONS |
|---|
| RMS Power | @ 4 Ω Stereo | 4 x 100 W |
| | @ 8 Ω Stereo | 4 x 50 W |
| | @ 8 Ω Bridge | 2 x 200 W |
| Frequency | Response (± 3 dB) | 20 Hz - 20 kHz |
| Signal / Noise | > 90 dB |
| THD+N (@ 1 kHz) | < 0.1% (1/2 Rated Power) |
| Crosstalk (@ 1 kHz) | > 70 dB |
| Technology | Class-D |
| Power | Supply | Switching mode |
| | | 100 ~ 240 V AC / 50 ~ 60 Hz |
| | Consumption | 188 W |
| | | Standby | 0.8 Watt (~30 sec standby time) |
| Inputs | Sensitivity (1W/1m) | 0 dB (1V RMS) |
| | Impedance | 12 kΩ balanced |
| | Connector | 3-pin XLR female |
| Protection | DC Short circuit |
| | Over heating |
| | Over load |
| | Signal limiting |
| Cooling | Convection cooled |
| Operating temperature | 0° ~ 40° at 95% Humidity |
| Outputs | Connector | 2-pin Euro Terminal Block (Pitch - 5.08 mm) |
| PRODUCT FEATURES |
|---|
| Dimensions | 482 x 44 x 330 mm (W x H x D) |
| Weight | 4.500 kg |
| Mounting | 19” |
| Unit height | 1 HE |
| Construction | Steel |
| Colours | Black |
Cihaz 4 kanal , class d sınıfı olacaktır.Cİhaz konveksiyon soğutmalı olacaktır.Cihaz gücü en az 4x150W, köprü modunda 4x300W olmalıdır.Frekans ynaıtı 20hz-20khz olacaktır.120Hz frekanslı aktif geçiş ağına ve DC bozulması, kısa devre, aşırı ısınma ve aşırı yüklemeye karşı ileri seviye koruma devresine sahip olmalıdır.Cihaz rack montaj yüksekliği 1U olacaktır.Uzak doğu üretimi olmayacak, sistemin geri kalanı ile birebir uyumlu çalışacak aynı markanın üretimi olacaktır.
