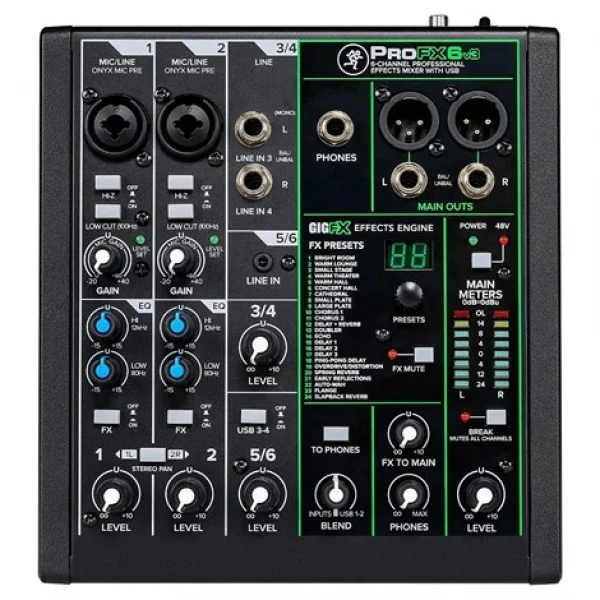

ProFX6v3 Professional Effects Mixer with USB
Teknik Özellikler
Tipi: Analog Mixer (USB Arayüz)
Kanal Sayısı: 6 (2 x mono, 2 x stereo)
Pc Bağlantısı: USB (2 x 4)
A/D Çözünürlüğü: 24-bit/192kHz
Faderlar: Rotary Pot
Girişler - Mikrofon Preamp: 2 x XLR-1/4" combo (mic/line/Hi-Z)
Phantom Power: Var
Girişler - Line: 2 x 1/4" (line), 1 x 1/8" (stereo)
Çıkışlar - Main: 2 x XLR, 2 x 1/4" (L/R)
Kulaklık: 1 x 1/4"
USB: 1 x Type B
Ekolayzır: 2-band EQ, 100Hz Low-cut Filter
Efektler: GigFX Engine: Reverbs, Chorus, Delay, Flange, Auto-Wah
Yazılım: Pro Tools First, Waveform OEM DAW, Additional Plug-in packages available
Güç Desteği: 12V DC Güç Desteği (Kutu içeriğinde mevcuttur.)
Fiziksel Özellikler
Yükseklik: 7.36 cm
Genişlik: 21.3 cm
Derinlik: 19 cm
Ağırlık: 1.17 kg
Mix / Record / Create
- Designed for maximum versatility making it perfect for live sound, home recording, content creation, and live streaming
Renowned Onyx Mic Preamps
- Equipped with 2 Onyx Mic Pres offering up to 60db of gain and ultra-low noise performance
- Perfect for microphones popular with content creators that require high-gain preamps
High-Resolution GigFX™ Effects Engine
- With 24 different FX options, from reverbs to delays, adding some drama to your sound is easy easy… easy….. easy…….. easy (Delay, get it?)
24-Bit / 192kHz 2x4 USB Recording Interface
- Lay down your tracks in incredible 24-Bit / 192kHz quality for the cleanest recordings possible
- 2x4 USB I/O allows you to create two custom mixes on your computer to send back in to the mixer, great for situations when you need to monitor specific tracks during playback in addition to the full mix
Effortless Latency-Free Monitoring
- With a single knob, you can blend between monitoring your computers output and a direct feed from the mixer
- Great for recording overdubs alongside a pre-recorded track
The Essential Mixing Tools You Need
- 2-band EQ (80Hz and 12kHz) on channels 1/2
- Hi-Z switches allows direct connection of guitars, basses, and other instruments
- 100Hz low-cut filter and 48V phantom power on all mic channels
- Line inputs on channel 3/4
- Stereo 1/8” input on channel 5/6
- Headphone output with separate level and blend control
Record and Produce Like a Pro
- Pro Tools® | First and Waveform™ OEM professional software and plugin packages included
- The Musician Collection for ProTools | First includes 23 plugins like BBD Delay, Eleven Lite, 304E EQ, and 304C Compressor*
- The DAW Essentials Collection™ for Waveform™ OEM includes 16 powerful plugins like Equaliser, Compressor, Reverber8, and Limiter
Signature Rugged Design
- Legendary Mackie “Built-Like-A-Tank” design
- Solid steel chassis protects your investment
- Tough ABS side protection
Accessories
- Protective bag (sold separately)
QUICK COMPARISON
PRODUCT | LINE INPUTS | MIC INPUTS | AUX SENDS | SUBGROUPS | COMPRESSORS | EFFECTS | USB I/O |
---|
ProFX6v3 | 6 | 2 | • | • | • | GigFX | 2x4 |
ProFX10v3 | 10 | 4 | • | • | 2 | GigFX | 2x4 |
ProFX12v3 | 12 | 7 | 1 | 2 | 4 | GigFX | 2x4 |
ProFX16v3 | 16 | 11 | 3 | 4 | 8 | GigFX | 2x4 |
ProFX22v3 | 22 | 17 | 3 | 4 | 12 | GigFX | 2x4 |
ProFX30v3 | 30 | 25 | 3 | 4 | 16 | GigFX | 2x4 |
