M-9 RGBAW is Antari's most advanced CO2 effect simulator to date. Specially designed and patented new high-pressure heater block allows the M-9 to produce a CO2 simulated explosion up to 10 meters (over 30 feet) in height without the need for dangerous and cumbersome CO2 tanks.

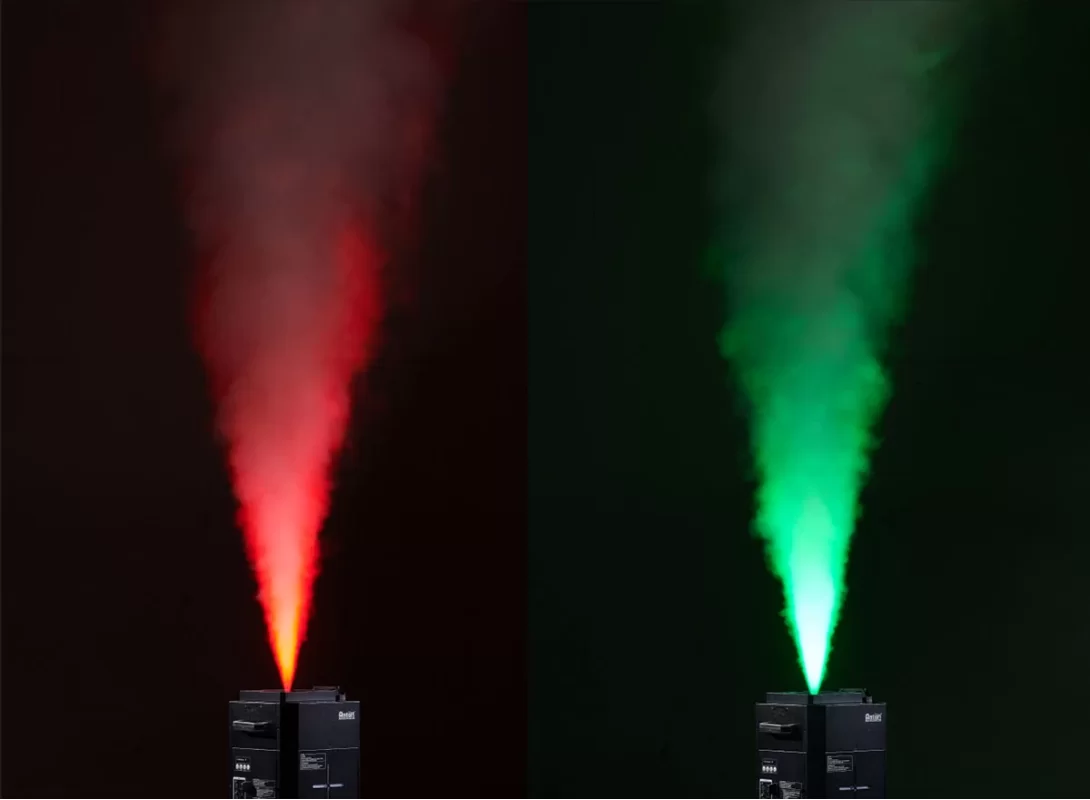

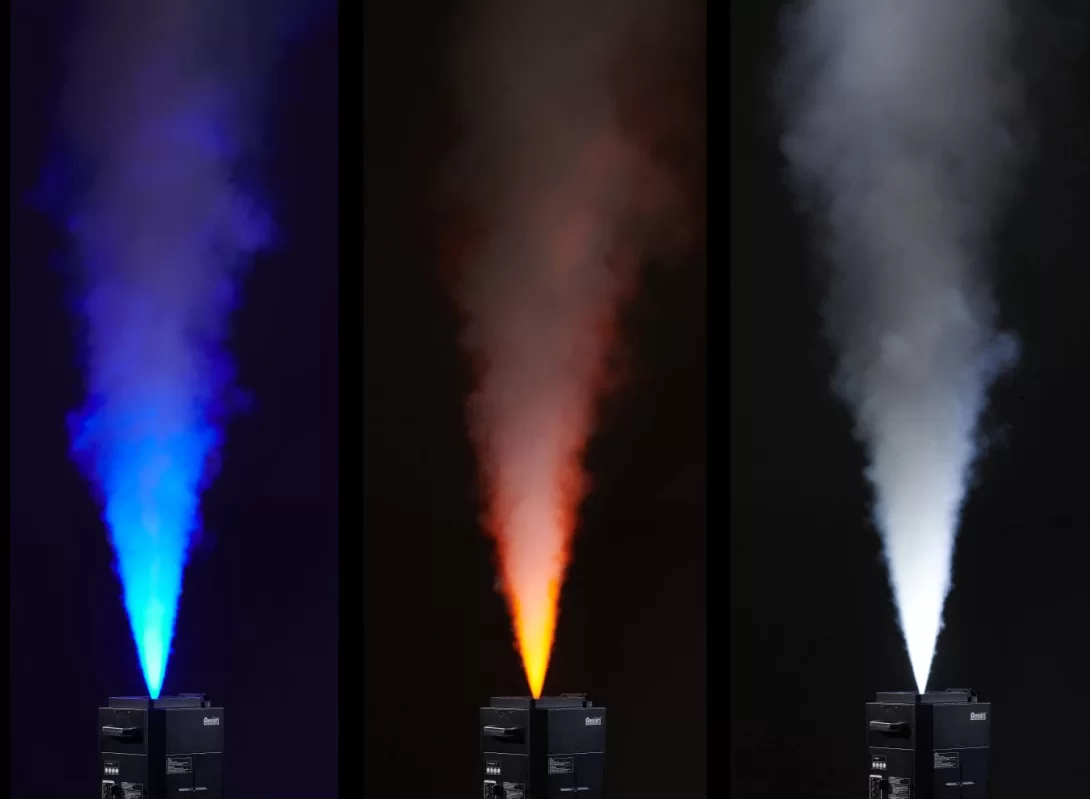

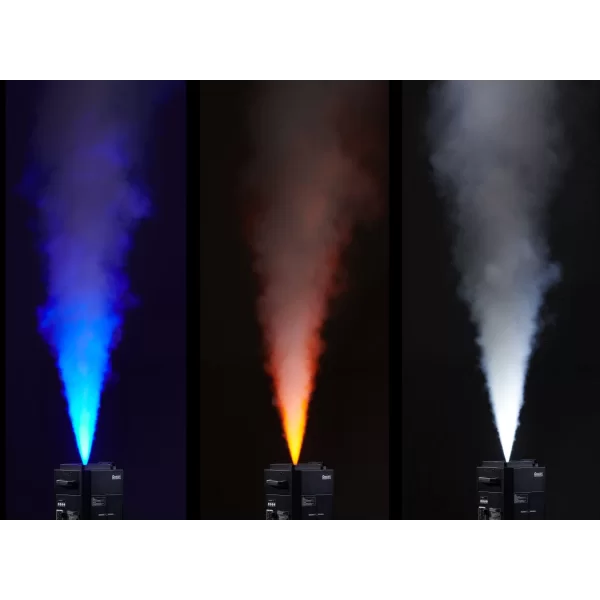

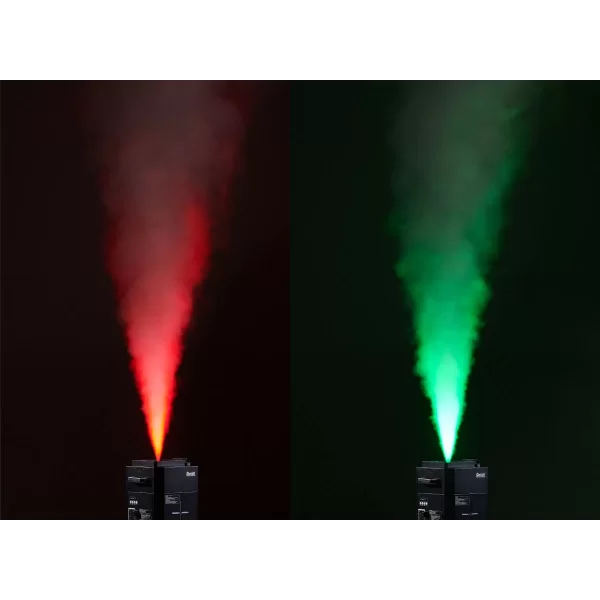

Equipped with high-power 5-in-1 RGBAW LEDs, the M-9 is designed to create a colorful cloud in the widest possible color spectrum. The versatile housing design allows the unit to be mounted vertically, horizontally, or upside down without the fear of leakage or dripping thanks to Antari's specially designed liquid transfer system.
The M-9's versatile control options include a built-in electronic timer, RDM-enabled DMX, standalone operation, and built-in wireless remote control. The units also come with 8 pre-programmed color chase effects and 25 color macros for quick and easy programming.
FEATURES
Rated Voltage
US Model: AC 100-120V, 50/60Hz 15.2A
EU Model: AC 220-240V, 50/60Hz 7.6A
Rated Power : 1820W
Light Source : 27 x 8W LED (5-in-1 LED)
Warm-up Time : 14 minutes (approx.)
Fluid Consumption : 400 ml/min
Fluid Tank Capacity : 6 Liters (1.59 gallons)
Compatible Fluid : Antari FLC-6 Fog Fluid
Ambient Temperature Range : 0°C – 40°C (32°F – 104°F)
Output Distance : 10 meters height
Control
Manual, Timer,
DMX 512, Master / Slave,
Wireless.
Wireless DMX (Optional)
DMX Channels :
10 / 15 / 25 channels

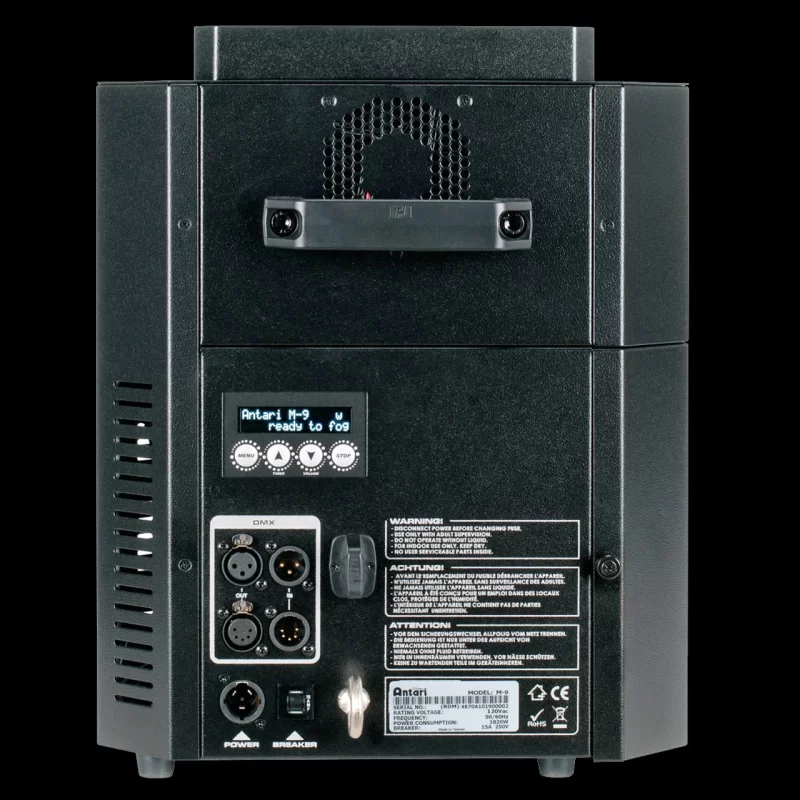

Connections
Neutrik TRUE 1 Connector (Power)
XLR 3-pin and 5-pin (DMX)
Included Accessories :
W-2 Wireless Radio Transmitter
Optional Accessories
TIMO-WTR-90 Wireless DMX
M-9-HB Omega Hanging Bracket
(*Note: 2 units of M-9-HB are required for one M-9.)
Dimensions
W 393 H 321 D 420 mm (W 15.47 H 12.63 D 16.53 inches)
