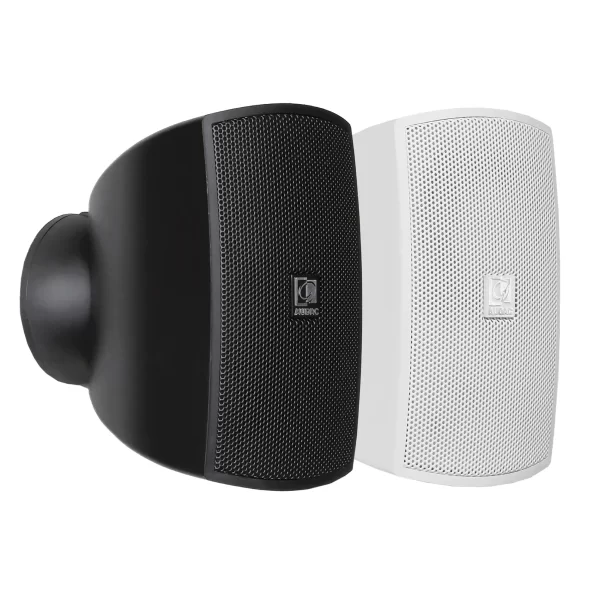

AUDAC ATEO2D Wall Speaker 2" 20W/16ohm (Pair)
AUDAC ATEO is an exceptional series of indoor installation speakers designed for fixed installation applications in indoor environments, ranging from modern residential applications to the most challenging designer applications in environments such as retail stores, bars, restaurants, and even clubs.
AUDAC ATEO 2 is the ultra-compact model of this series that seamlessly integrates into indoor spaces unlike any other speakers in the series. The sound emanates from a 2" aluminum cone driver with enhanced response at low frequencies due to the conveyed design, providing a full, warm, and detailed sound. This ensures clear and smooth sound production.
The built-in self-resetting network provides optimal overload protection. Equipped with high-quality components, strikingly designed, and an elegant ABS body, it stands out with its Clevermount™ technology specially designed mounting bracket, allowing the speaker cabinet to flow with the mounting bracket and providing great convenience for installing the speaker as a visible object.
The speaker is mounted and connected by mounting the wall plate to the desired position. The terminal block connector should be attached to the wires coming from the amplifier and should be attached to the side of the speakers. The next step is to clip the speaker to the wall plate and tighten it a quarter turn until it is secure.
SYSTEM SPECIFICATIONS |
---|
Speaker type | Full range |
Max. Power | 20 W |
RMS Power | 10 W |
Impedance | 8 Ω (ATEO2) |
| 16 Ω (ATEO2D) |
Sensitivity (1W/1m) | 83 dB |
Sound Pressure (Max. W/1m) | 93 dB |
Ingress Protection rating | IP40 |
Connectors | 2-pin Euro Terminal Block |
Drivers | 2” Aluminium full range |
Incline angle | Left | 25° |
| Right | 25° |
| Bottom | 25° |
| Top | 15° |
Frequency | Response (± 3 dB) | 120 Hz - 20 kHz |
| Range (-10 dB) | 100 Hz - 20 kHz |
Dispersion | Horizontal | 145° |
| Vertical | 170° |
PRODUCT FEATURES |
---|
Dimensions | 80 x 136 x 115 mm (W x H x D) |
Weight | 0.390 kg |
Operating temperature | -20 °C ~ 60 °C |
Mounting | Clevermount™ |
Construction | ABS |
Front finish | Steel grill |
Colours | Black (RAL9005) (ATEO2/B, ATEO2D/B) |
| White (RAL9003) (ATEO2/W, ATEO2D/W) |
Accessories | Optional | WTR06 - 6W 100V line transformer |
