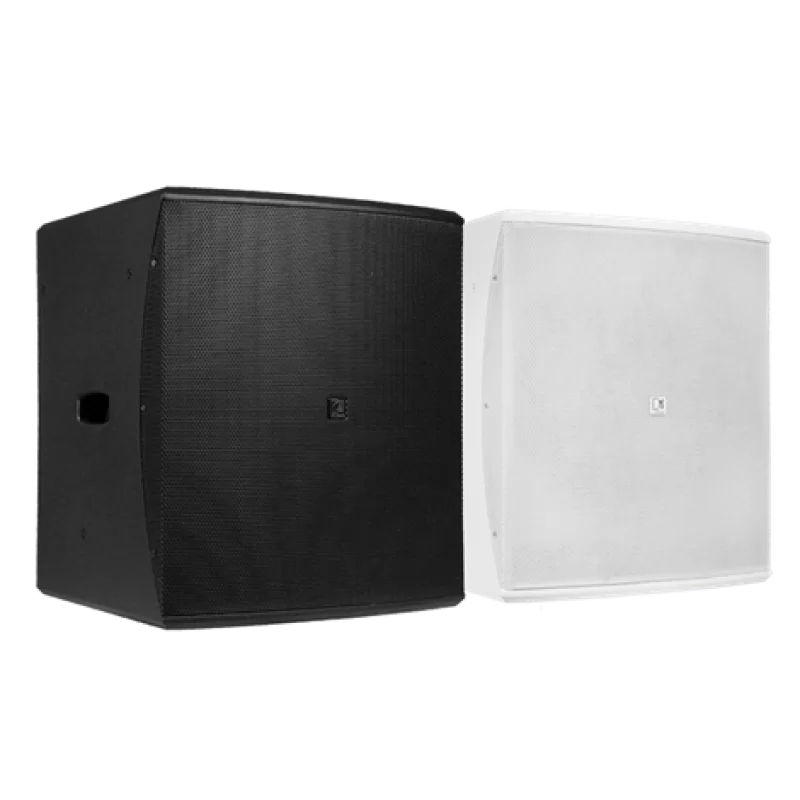

Name: Audac BASO18 18" Pasif Subwoofer, bass reflex
Brand: Audac
SKU: Audac BASO18/B

Audac BASO18 18" Pasif Subwoofer, bass reflex

Barcode: 2242005547144

Brand: Audac

Category: Wall Speakers

Product Grup: Speakers

Speaker Type: Passive Subwoofer

Speaker Size: 18"

price for Piece

Fast Shipping

Technical specifications

Available models

BASO18/B	Black
BASO18/W	White

System specifications

Speaker type		18” Bass reflex cabinet
Peak power handling		3600 W
Program power handling		1800 W
RMS/AES power handling		900 W
Impedance		8 Ω
Sensitivity (1W/1m)		96 dB
Sound Pressure (Max. W/1m)		129 dB
Frequency	Response (± 3 dB)	32 Hz - 300 Hz
	Range (-10 dB)	30 Hz - 1 kHz
Bass reflex tuning frequency		38 Hz
Connection		2 x heavy-duty SpeakON NLT4MPBAG (linkthrough)
Drivers		18” carbon cone with dual suspension (low-loss) and 4” high excursion voice coil

Product Features

Dimensions		520 x 619 x 615 mm (W x H x D)
Weight		41.1 kg
Operating temperature		-20 °C ~ 60 °C
Construction		18 mm plywood with structured coating
Mounting & handling	Rigging points	3 x M10
	Stand fitting	Optional 35 mm pole adapter
	Carry handles	Integrated carry handle on both sides
Colours		White (RAL9003) (BASO18/W)
		Black (RAL9004) (BASO18/B)
Front finish		Steel grill (18 gauge)
Accessories	Optional	CHB196 35 mm pole adapter

Recommended applications

Clubs

Museums & Themeparks

Sporting facilities

Events

Bars & Restaurants
