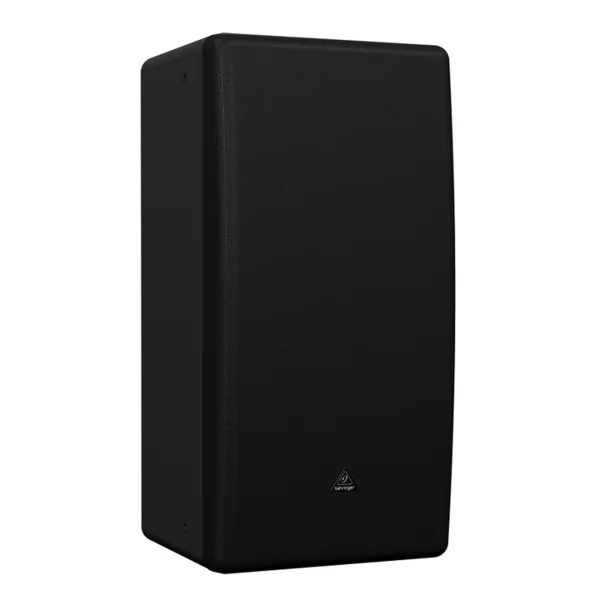

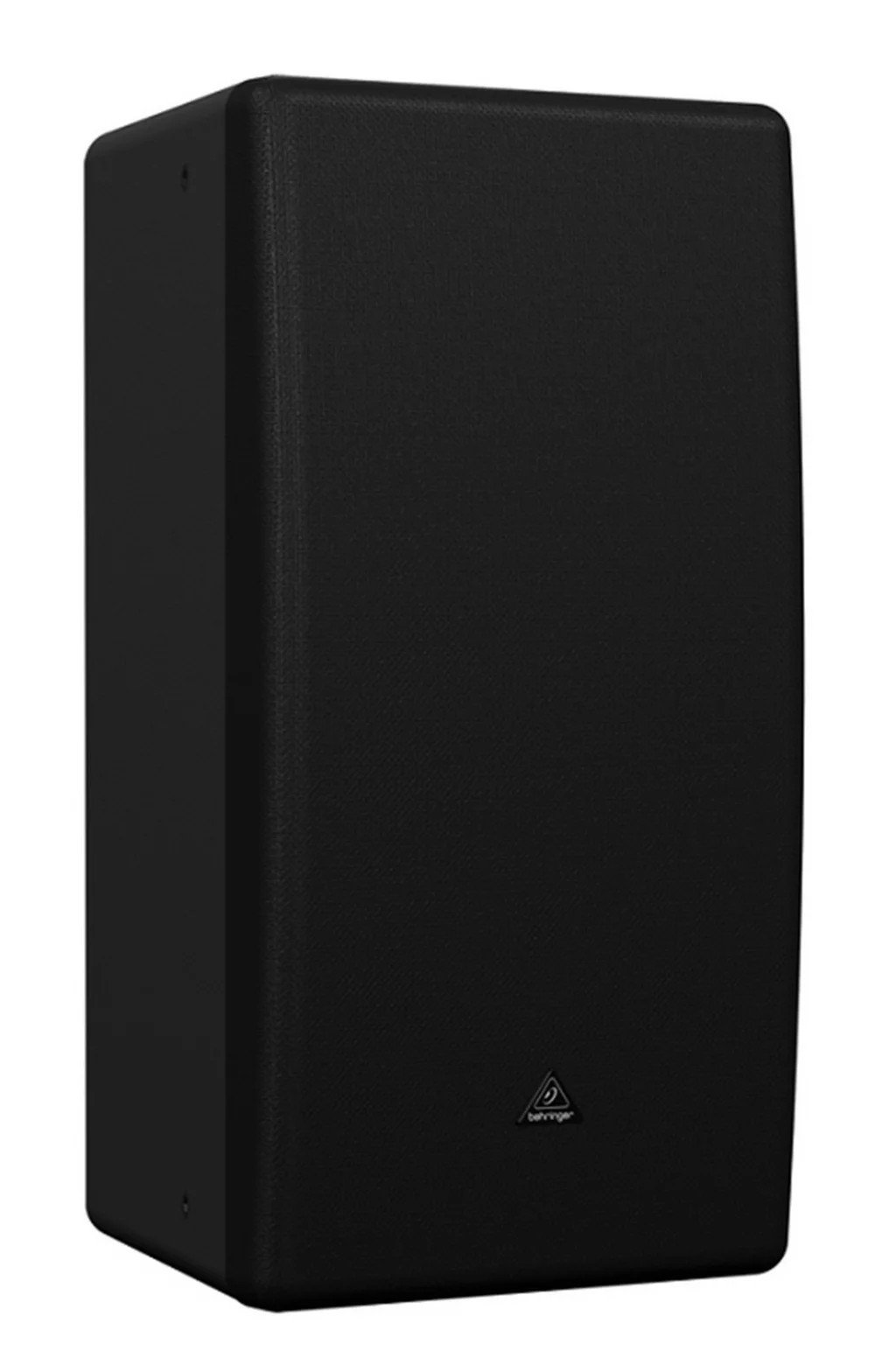

Behringer Eurocom CL106
Compact in stature but big on output, the black 6" Ultra Compact 100W 2-Way 8Ω Loudspeaker System from Behringer delivers an impressive sonic performance. This professional 2-way loudspeaker system is ideal for a wide variety of fixed installation applications. Featuring clean lines and a unique fabric-finished wrap-around grille, the speaker system is fully at home in even the most elegant settings, including theaters and auditoria, places of worship, themed entertainment, and sporting venues. Although designed for serving as mains in small rooms, the CL106 loudspeaker system can also be used for fill and delay systems in larger rooms.
Built of durable laminated Baltic birch plywood, the CL106’s lightweight cabinet combines natural rigidity and acoustic inertness with the additional strength of internal steel bracing. Threaded mounting-point inserts in the internal brackets provide a rated load factor of at least 10 times the overall cabinet weight, making this system safe for flown installation, either single or in arrays. The system also achieves fully-professional performance and reliability with its custom-tailored components for frequency response, sensitivity, and power handling.
This system employs dual 6" (152.4mm) low frequency drivers providing full, rich lows matched to a 1" (25.4mm) high frequency driver via an internal passive crossover at 2 kHz to deliver clear, smooth sound across the entire audible spectrum. A rotatable waveguide allows optimal application of the 90 x 70° coverage pattern regardless of speaker orientation, which may be either vertical or horizontal.
Every aspect of the CL106 speaker system has been thought through to maximize value and convenience for both the installer and the end user. The result is an attractive, durable, installation-ready loudspeaker system that will deliver top-notch sound for years to come. In addition, the refined aesthetic design compliments the sophisticated interior spaces. This loudspeaker system is trapezoidal in shape with rotatable high frequency sections for deployment in both vertical and horizontal orientations.
Frequency Range | 62 Hz to 20 kHz (-10 dB) |
Frequency Response | 69 Hz to 15 kHz (+/-3 dB) |
Dispersion | Nominal: Horn Waveguide: 90 x 70º (H x V), rotatable |
Directivity | Factor (Q): 7.5 Index (DI): 8.8 dB |
Sensitivity | 1 W at 3.2 (1 m) Passive: 90 dB (half space) |
Crossover | Modes: Passive |
Crossover Frequency | 2.5 kHz |
Power Handling | 100 W RMS at 28.3 V (long term, IEC268-5 passive) |
Nominal Impedance | 8 Ω |
Low Frequency Driver | 6" (152.4 mm) at 120 W |
High Frequency Driver | 1" (25.4 mm) at 20 W |
SPL | Maximum Continuous: 110 dB SPL (passive) Maximum Peak: 116 dB SPL (passive) |
Overload Protection | Full range power limiting to protect drivers and crossovers |
Enclosure | Trapezoidal 15° side angle, laminated birch plywood |
Grille | Steel |
Rigging Points | 14 x M6 threaded points 4 x M6 threaded inserts for OmniMount 30 series |
Termination | NL4 and 4-position terminal strip |
Dimensions (H x W x D) | 17.7 x 10.2 x 11.3" (449.5 x 259.0 x 287.0 mm) |
Weight | 20.7 lb (9.3 kg) |
