Multi-function 80-Watt
(MA6008) auto-mixing amplifiers with dual 70/100 V
and 4 Ω outputs, designed for continuous operation
in distributed music, paging and AV applications
•
State-of-the-art, energy-saving Switch-Mode
Power technology with up to 68% power effi ciency
drastically reduces energy cost
•
2 transformerless, cool-running Class-D amplifi ers
simultaneously drive 70/100 V and 4 Ω loads with
adjustable Balance control
•

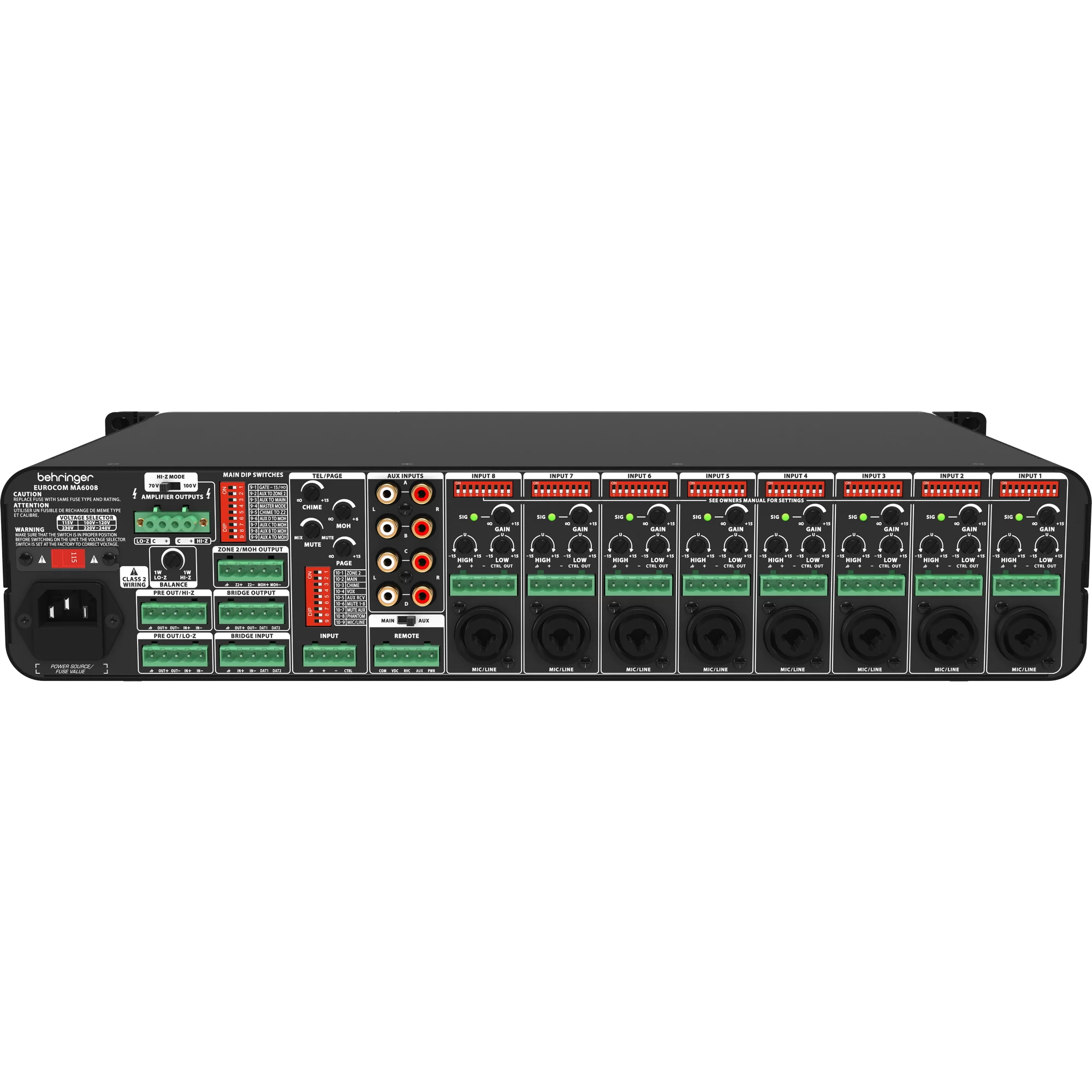

8 Mic/Line inputs on XLR/TRS and Euroblock
connectors, each with Lo and Hi frequency EQ,
individual Trim control and post-trim input level LED
•
Switchable Mic/Line, Phantom power, Main Mix and/
or Zone 2 output, Mute Send/RCV, Remote Volume
control, Chime, and Auto-mixing on each input
•
4 pair summed RCA Aux inputs are assignable to the
Main Mix, Zone 2, and/or MOH
•
Multi-featured, dedicated page input with assignable
Chime, switchable Mic/Line and Phantom power
•
Wired Remote volume, power control and aux
channel selection plus remote volume assign switch
•

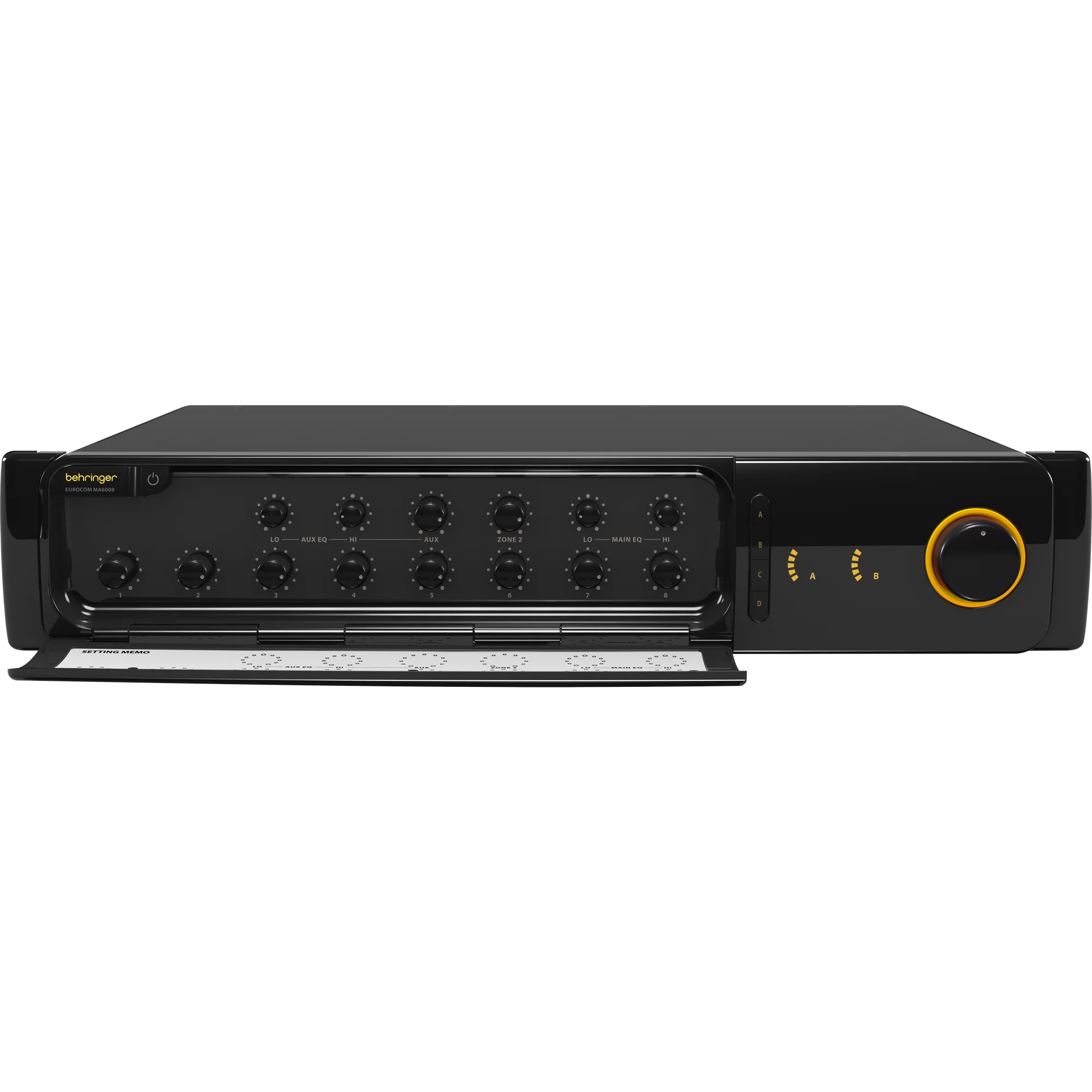

Individual front panel input Level, Lo and Hi Main and
Aux EQ, Aux input and Zone 2 Level controls
•
Auto-dimming control illumination, dual channel VU
meter, Power switch, and dual-function indicator ring
surrounding Master volume control
