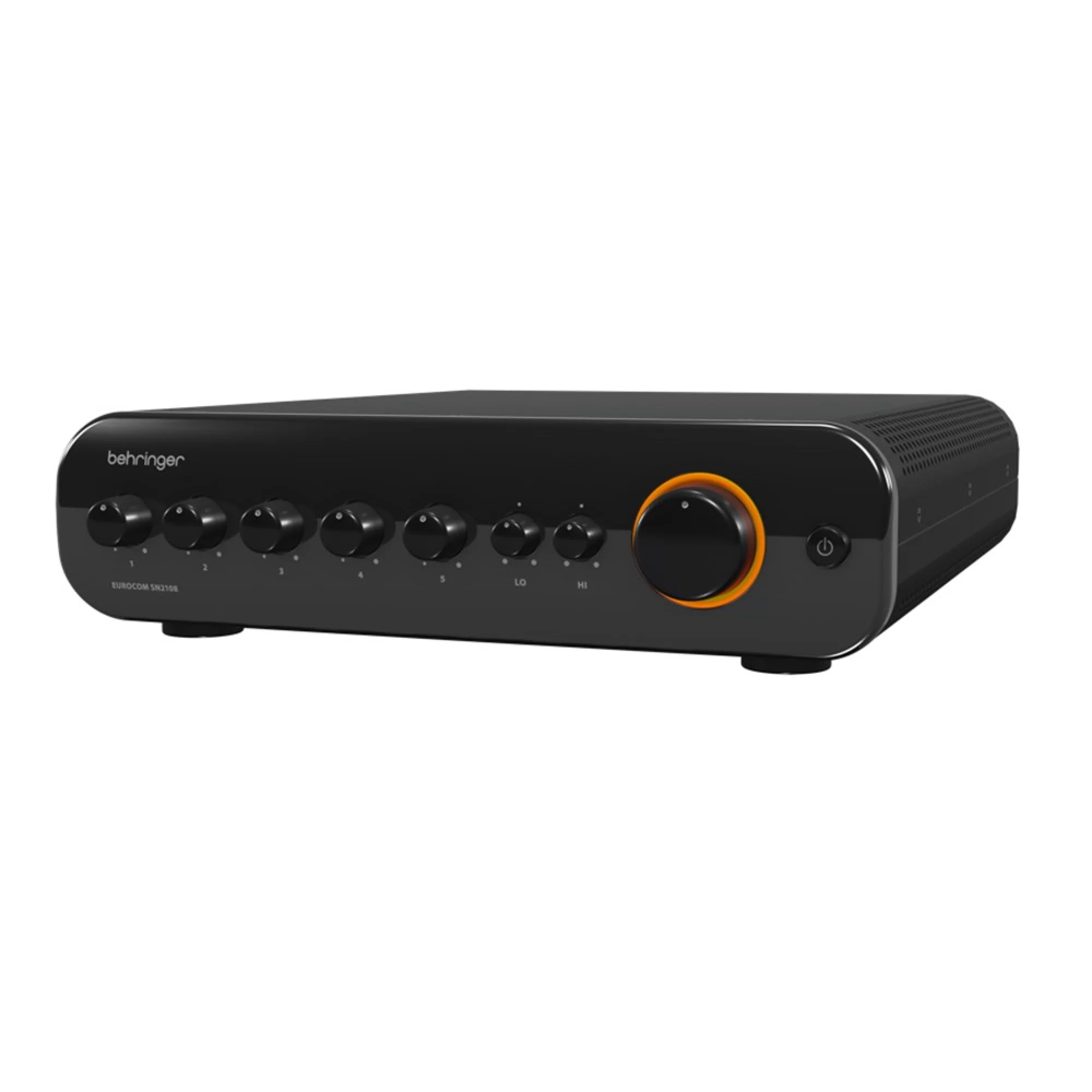

The SN2408 series integrated mixer-amplifiers from BEHRINGER deliver exceptional performance with a wealth of features for use in conference rooms, boardrooms, hotels, and other venues fitted with distributed sound systems. The compact dimensions and sleek front panel make the SN2408 suitable for shelf mounting where users need it most; in the front office instead of the electrical room.
BEHRINGER’s exclusive DualDrive™ amplifier circuitry offers the benefits of two separate amplifiers in one low-cost package. With one amplifier dedicated to 70/100 V applications the SN2408 can drive several speakers in a distributed system while the second channel can drive high-performance sound reinforcement speakers or subwoofers. Additionally, the individual input signal routing and Zone 2 output on the SN2408 creates a wide variety of output options; separate room mixing, direct lobby or waiting area paging, or specific signal routing to a recording device.
Installation is fast and efficient with an array of input connectors. Dedicated Tel/Page connectivity allows integration with telephone paging systems or direct microphone paging. Adjustable priority muting across all inputs ensures that every page is heard clearly.

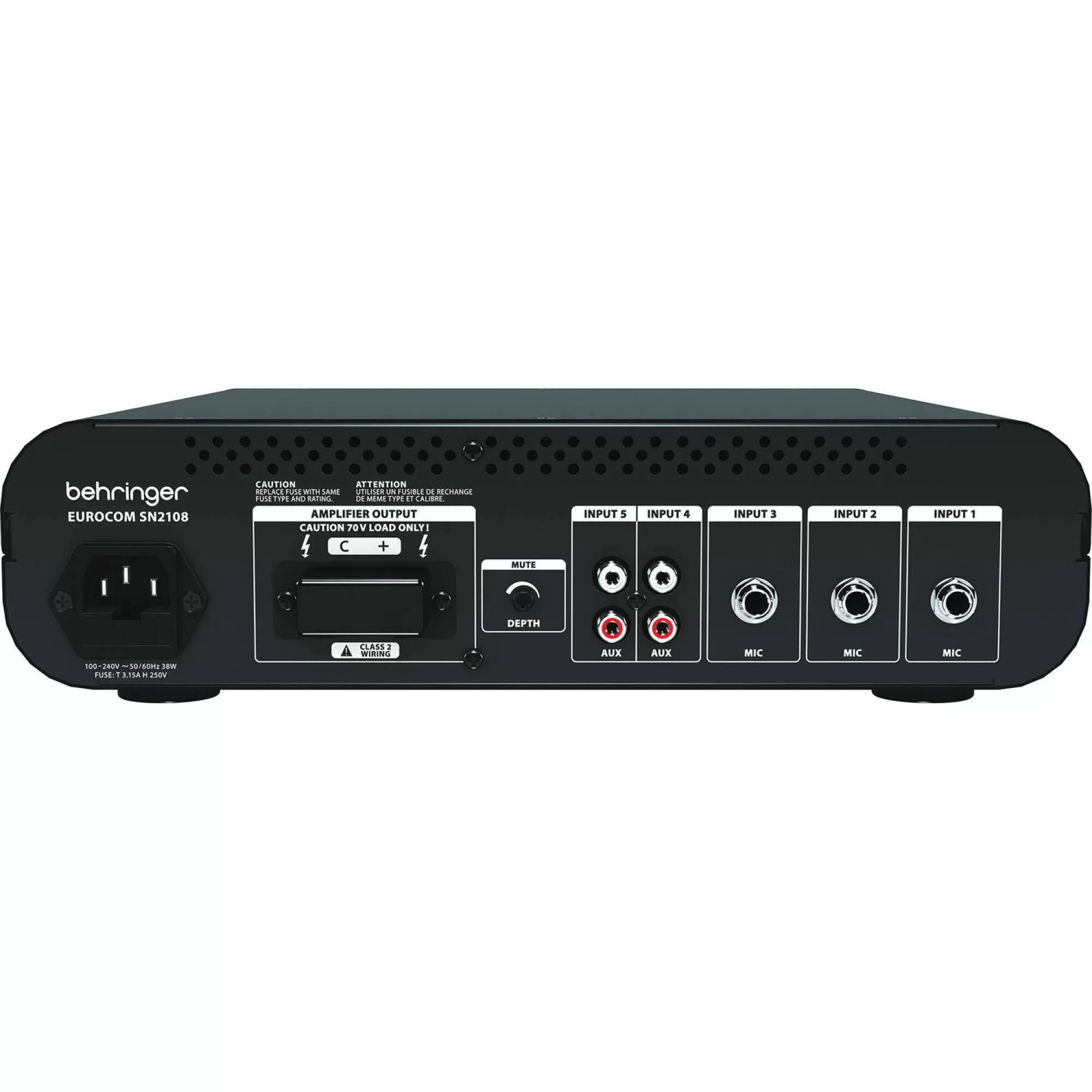

| Audio Inputs | 3x 1/4" (6.35 mm) TRS 2x Stereo Summed RCA |
| Audio Outputs | 1x 2-Position Terminal Block Speaker Output |
| Impedance | 1/4" TRS: 600 Ω Balanced @ -50 dBv Stereo Summed RCA: 10 kΩ Unbalanced |
| Amplifier | Channels: 1x 70 V Hi-Z Power Output Lo-Z: 80 W RMS @ 70 V (@ 1% THD, 1 kHz Sine Wave) Minimum Impedance: 62.5 Ω |
| Controls | 5x Level Control Knobs 1x Lo Tone Control Knob, +/- 15 dB @ 100 Hz 1x Hi Tone Control Knob, +/- 15 dB @ 10 kHz 1x Master Volume Knob 1x Mute Depth Knob 1x Power On/Off Button 1x Voltage Switch, 100 to 240 VAC, 50/60 Hz |
| Indicators | 1x Dual Functioning Indicator Ring Power On: Yellow Clip: Red |
| Output Circuit | Type: Transformerless Class D |
| Protection | Amplifier: Thermal and DC Automatic Limiters |
| Frequency Response | 50 Hz to 18 kHz, ±1 dB @ 1 W (70 V) |
| Dynamic Range | Mic: 65 dB Auxiliary: 80 dB |
| THD + Noise | 0.05% @ 1 W, 1 kHz dBr into 62.5 Ω load |
| Signal to Noise Ratio | 90 dB @ 1% THD+N |
| Power Supply | Mains Voltage: 100 to 240 VAC, 50/60 Hz Fuse: T 3.15 A H 250 V Power Efficiency: 70% Power Consumption: 38 W @ 1/8 of Maximum Rate Output Mains Connector: Standard IEC receptacle |
| Dimensions (H x W x D) | 3.3 x 12.0 x 14.2" (8.3 x 30.5 x 36.0 cm) |
| Weight | 8.2 lb (3.7 kg) |
